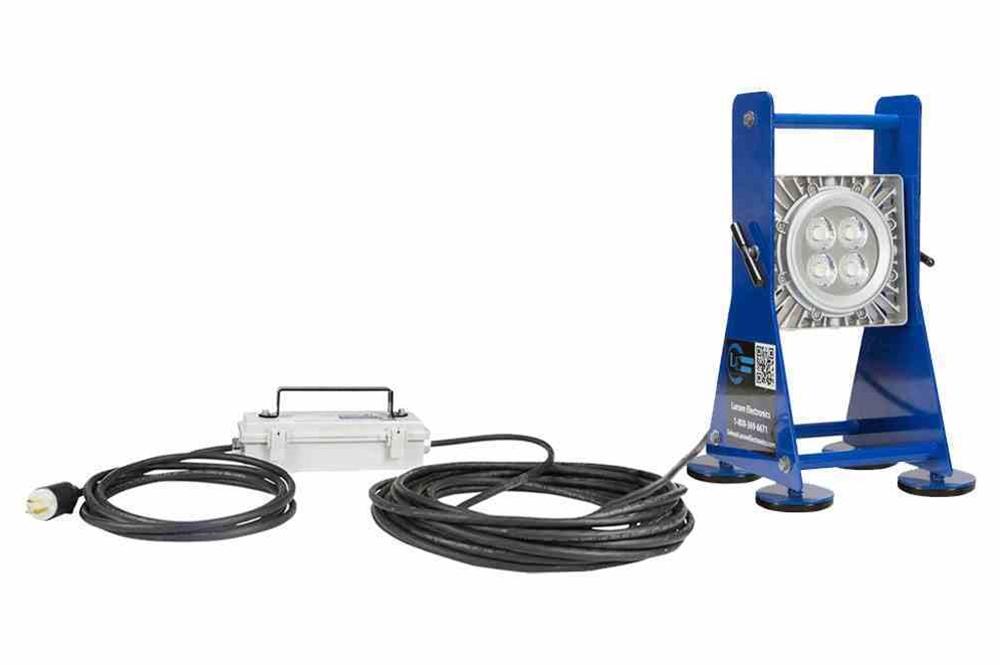

50W Explosion Proof LED Light - 120-277V AC Stepped Down to 12 or 24 V DC - 7,000 Lumens - Non-Spark Aluminum Magnetic Stand

LARSON ELECTRONICSSKU: PL3-EPL-BS-70LED-6XMB-150X12
filler

Precio:
Precio de venta$8,626.00

Descripción

Specifications / Additional Information
EPL-BS-70LED-6XMB-150X12 - Explosion Proof LED Light Ratings/Approvals
Listing: United States - Canada Class I, Divisions 1 & 2, Groups C and D
Lamp Technology: LED Class II, Divisions 1 & 2, Groups E, F and G
Dimensions: 15.25"-H x 10.5"-W x 9.25"-D Class III, Divisions 1 & 2
Weight: 25 lb NRTL Certified to UL 844 Ed. 13
Voltage: 100-277 Volts AC, 50/60 Hz Stepped Down to 12 or 24 V DC via Encapsulated Inline Stepdown Transformer NRTL Certified to UL 1598
Total Watts: 50W NRTL Certified to C22.2 No. 137 Rev 2009
Total Lumens: 7,000 lms NRTL Certified to C22.2 No. 250.0
Luminous Efficacy: 140 Lm/w NRTL Certified to C22.2 No. 30-M-1986 Rev 2012
Lamp Life: 60,000+ Hours T5 Temperature Rating
Color Temp: 5600K, 4500K, or 3000K Paint Spray Booth Approved
Color Rendering Index: >75 CRI IEC 60529 Tested
Lamp Type: - IP67 Rated Waterproof
Lamp Base: - LEL Approved
Replacement Lamp: - Single LED Driver
Beam Angle: 60°, 125°, or 140° 80% Lumen Retention after 60,000 Hours
Lighting Configuration: Flood Pattern Factory Sealed Light Fixture
Power Efficiency: >95% Surge Protection
Power Factor: 0.99 Replacement for 250W Metal Halide Lamps
Amps: 0.42 A @ 120 V, 0.21 A @ 240 V, 0.18 A @ 277 V
Ambient Operating Temp Range: -50°C to +65°C
Operating Temp Rating: T5
Temperature Rise: 11°C (10°F) Over Ambient
Housing Material: Copper Free Cast Aluminum
Housing Finish: Epoxy Powder Coated - Grey Special Orders - Requirements
Lens Material: Hardened Borosilicate Glass
Gasket Material: Silicone
Mounting: Triangular Shaped Aluminum Base Stand with (4) 100 lb Magnetic Feet
Wiring: 150' SOOW Cord w/ General Area Cord Cap & Waterproof 12-24 V DC Transformer
Cord Cap Options: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }
Made in the USA The EPL-BS-70LED-6XMB-150X12 Explosion Proof LED Light provides operators with a powerful alternative to traditional hazardous location luminaries. The spun aluminum mount and LED lamp used with this unit provide operators with excellent power and efficiency coupled with high versatility and ease of use. An included transformer steps down voltages from 110-277 V AC to 12 V DC or 24 V DC for low voltage applications. The EPL-BS-70LED-6XMB-150X12 is a Class I, Division 1 & 2 and Class II, Division 1 & 2 explosion proof light fixture that is designed for energy efficient and superior illumination in combustible environments. This 50-watt LED fixture offers 7,000 lumens of high quality light with a color temperature of 5600K. We also offer a 3000K warm white and 4500K natural white color temperature options (longer lead times may apply for non-standard temperatures). Serving as a suitable replacement for 250-watt metal halide lamps, a color rendering index of 75 ensures colors and details are produced more accurately than high pressure sodium or mercury vapor luminaries. This portable LED lighting solution for explosive sites is IP67 rated, dust-proof and protected against high pressure jets and temporary submersion. The aluminum frame features an explosion proof switch built into the cord wrap on the back of the unit. The copper-free aluminum alloy housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronic components. An epoxy powder coated finish facilitates durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000-hour rated lifespan with 80% lumen retention. The explosion proof LED light also offers operators convenience in the form of field serviceability. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. LED Drivers: Even in LED fixtures, heat is the single largest factor in premature light failure and color shifting. As a result, many manufacturers reduce the output of their LEDs in order to reduce the amount of heat produced. Rather than lower light output or quality, Larson Electronics addresses this problem with the addition of an electronic LED driver. This internal driver provides the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. This not only reduces the energy dissipation, effectively lowering the operating temperature of the fixture, but also prevents AC over-voltage and short circuit loading making this fixture virtually maintenance free. Because the electronic driver allows the EPL-LB-50LED-RT to run at a cooler internal temperature and regulates the electrical current, energy efficiency and LED service hours are maximized while at the same time reducing operating costs and downtime incurred from the frequent servicing intervals required with other hotter running lights.
Energy Consumption Comparison
Metal Halide LED
Wattage 175 watts 50 watts
Amp Draw @ 120V AC 1.69 amps 0.42 amps
Amp Draw @ 220V AC 0.92 amps 0.23 amps
Amp Draw @ 240V AC 0.85 amps 0.21 amps
Amp Draw @ 277V AC 0.73 amps 0.18 amps
Amp Draw @ 12V DC 16.77 amps 4.17 amps
Amp Draw @ 24V DC 8.39 amps 2.08 amps
Lamp Life Expectancy 20,000 hours 60,000+ hours
Operation cost per year (12hs/day @ 12c/kWh) $241.78 $26.30
Each LED light fixture has the potential to save $150.00+ per year in electricity alone, not including maintenance costs, operational downtime, reduced productivity, HVAC loads, or carbon footprint. When retrofitting an entire facility with 100s of light fixtures, the return on investment of LED over metal halide becomes evident.
Voltage: The light is universal voltage capable and can be operated with 100-277 V AC, 50/60 Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125 V Rated L5-15 Twist Lock Plug 15 Amp / 125 V Rated L6-15 Twist Lock Plug 15 Amp / 250 V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250 V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250 V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This explosion proof LED light is equipped with 150 feet of 16/3 chemical and abrasion resistant SOOW cord leading to an encapsulatedstep down transformer. There is three feet of 16/3 SOOW cable coming out of the inline transformer, that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110 V wall outlets with ground, standard 5-20 20 amp straight blade plug for 110 V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240 V wall outlets with ground, standard 6-20 20 amp straight blade plug for 220-240 V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L5-20 20 amp twist lock plug for 125 V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, NEMA L6-20 20 amp twist lock plug for 240 V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250 V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. *PLEASE NOTE: While the light fixture on this unit is explosion proof, the included cord cap is NOT explosion proof and must be connected outside of the hazardous area.*
Click Photos to Enlarge
60° Beam Angle 125° Beam Angle 140° Beam Angle
Beam Angles: When used as a portable lighting solution, the varying beam angles are each individually ideal for several environments. The 60° beam provides the most intense beam of the three options. It is perfect for narrow, confined spaces and is ideally suited for tank cleaning purposes. It offers focused light to provide ample illumination to tight work spaces and other environments. The 125° beam offers a more diffused source of light that is also less intense in brightness. It is a great general area work light and performs well when used for outdoor illumination. The 140° beam offers a very wide lighting pattern and is ideal for situations where lighting distance is not a concern, but illumination of a wider area and even light distribution is. The 140° beam is great for situations that call for working in close proximity to lights such as in a paint booth. Mounting: The EPL-BS-70LED-6XMB-150X12 features four 100 lb magnetic feet that provide a strong magnetic pull to stabilize the light fixture during deployment, reducing movement of the light from vibrations or accidental bumps. Suggested Applications: Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, chemical manufacturing, waste treatment plants, gas processing plants, and more.
