Specifications / Additional Information
EPL-EMG-24-4L-T8 Explosion Proof | Ratings |
NRTL Listed for United States & Canada | Class 1 Division 1, Groups C and D |
Lamp Type: Fluorescent | Class 1 Division 2, Group A,B,C,D |
Dimensions: W-22.50" L-27" H-8.5 " | Class II Division 1- 2, Groups E,F,G |
Weight: 57 lbs. | NRTL Certified to UL 844, 924 |
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz | NRTL Certified to UL 1598 Marine Type |
Total Watts: 68 Watts | NRTL Certified to UL 595 Outdoor Marine Type (Saltwater) |
Total Lumens: 5,300 | Listed for Paint Spray Booths* |
Luminous Efficacy: 78 Lm/W | California Title 24 Compliant |
Lamp Life Expectancy: 24,000+ Hours | Switch Leg for Powering Light On/Off |
Color Temp: 4100K | |
Beam Angle: N/A | |
Ambient Operating Temp Range: -30 C to 70 C | |
Operating Temp Rating: T6 Rated | |
Maximum Case Temp: 90 C | Toll Free:Â 1-800-369-6671 |
Minimum Operating Temp: -30 C | Intl:Â 1-214-616-6180 |
Mounting: Bracket Standard - Pendant Optional | Fax:Â 1-903-498-3364 |
Wiring Hub: 1/2 inch threaded | E-mail:Â |
*Wattage totals are lamps only and may vary with different lamps. |

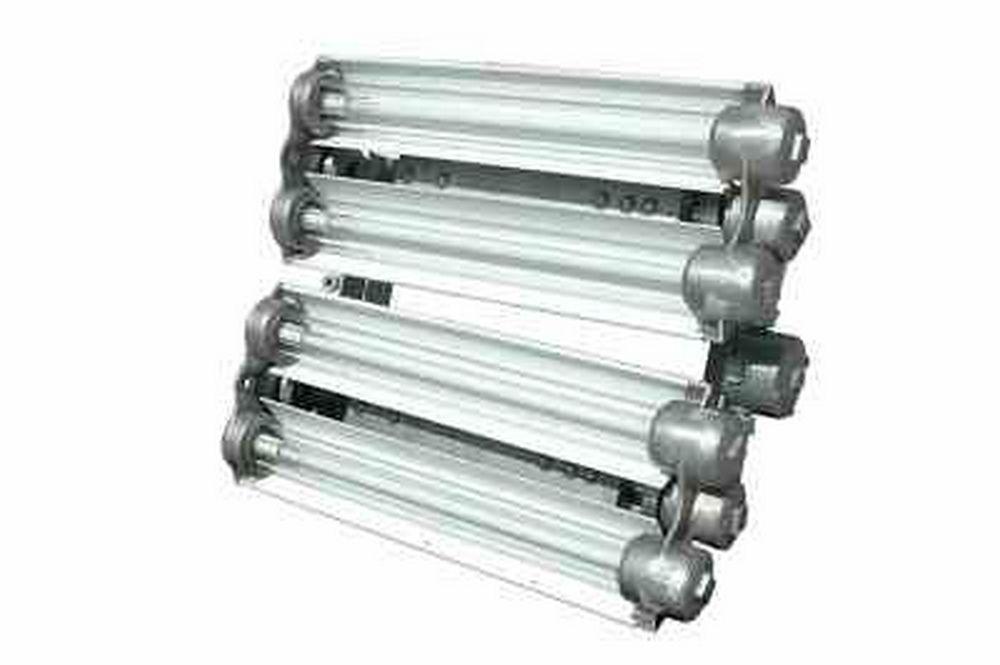

Made in the USA The Larson Electronics EPL-EMG-24-4L-T8 Explosion Proof Fluorescent Light Fixture is NRTL Listed For United States and Canada Class 1 Division 1, Class 2 Division 1 and ideal for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The EPL-EMG-24-4L-T8 fixture is a 2 foot long, 4 lamp, Class 1 Division 1 and Class II Division 1&2 explosion proof fluorescent light and an ideal choice for use in applications where space is at a premium. This T6 temperature rated fixture comes standard with F17-T8 lamps and is available with a variety of lamp options which are listed below. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is multi-voltage capable and for use in paint spray booths. The EPL-EMG-24-4L-T8 provides operators in hazardous locations with a compact, reliable and affordable lighting solution that provides the best explosion proof protection available without sacrificing light quality or fixture durability. | ||||||
|
||||||
This fluorescent light works, mounts and is wired like our EPL-24-4L-T8 explosion proof fluorescent light fixtures. The main difference is that we attach an extra Bodine ballast box to the unit that adds the emergency light functionality to the fixture. This explosion proof emergency light will run the standard 90 minutes after power is lost. The light recharges the battery once standard electrical power is restored. Standard configuration includes a single emergency ballast that will run a single lamp at 1325 lumens for 90 minutes. For an additional charge, a second ballast can be added to run a second lamp for 2650 total lumens output for 90 minutes.The battery backup unit includes a switched leg for turning the light fixture on/off without kicking the unit into emergency mode.
NOTE ON LAMPS: This unit comes equipped with an electronic ballast and F17-T8/841 bulbs which produce 1325 lumens per bulb and have a rated lifespan of 24,000 hours.
Additional mounting options: Unless otherwise specified, our standard, most popular configuration is the bracket end mounting shown in the photos above. We also offer a pendant mount for those needing to suspend the fixture away from the ceiling surface (i.e. suspend from pipe or conduit).
Standard Bracket Mounts: Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg. The first picture shown above illustrates the ballast side bracket and also shows the access caps for changing the bulbs. The second picture shows the bracket at the opposite end of the fluorescent light.
|
