Larson Explosion Proof Fluorescent Light with Emergency Battery Backup - 4' 4 Lamp Fixture - Bi-Axial Bulb
Larson Explosion Proof Fluorescent Light with Emergency Battery Backup - 4' 4 Lamp Fixture - Bi-Axial Bulb
Made in the USA

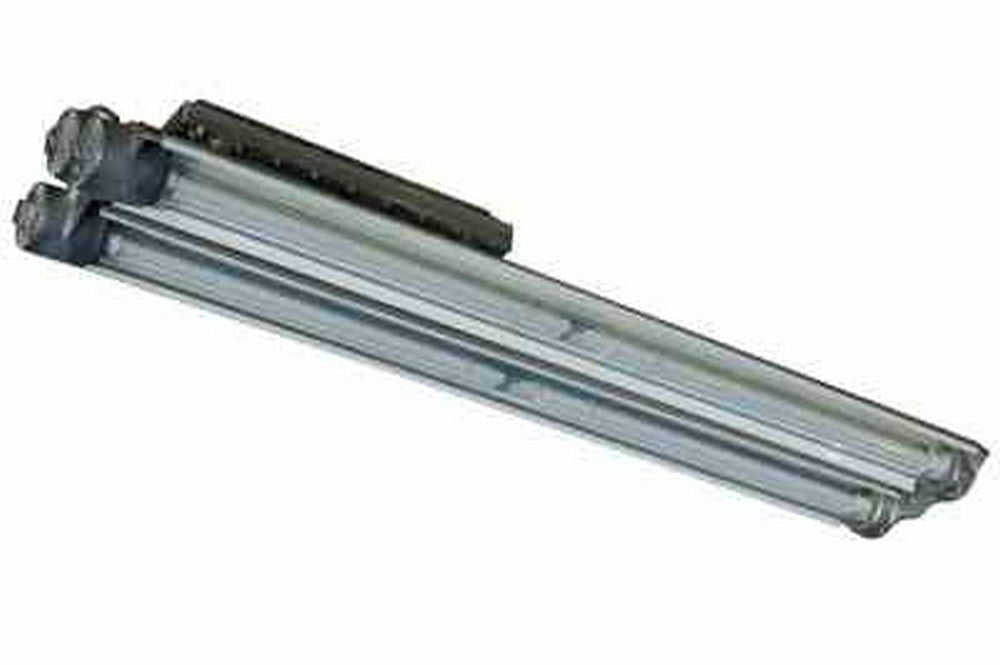

The Larson Electronics EPL-EMG-48-2L-BX Explosion Proof Four Bi-Axial Bulb Fluorescent Light Fixture is U.S./Canada UL Listed Class 1 Division 1, Class 1 Division 2, carries a T6 temperature rating
and ideal for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist.
The EPL-EMG-48-2L-BX fixture is a 4 foot long, 4 lamp, UL listed Class 1 Division 1 and Class 2 Division 1 & 2 explosion proof fluorescent light which is also approved for use in paint spray booth applications. This T6 temperature rated fixture comes standard with four Bi-Axial 40 watt compact fluorescent bulbs which produce a combined 80 watts of illumination. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This unit is equipped with an emergency batery backup system which will power one lamp for 90 minutes in the event of power failures.
The EPL-EMG-48-2L-BX is multi-voltage capable and provides operators in hazardous locations with a reliable and durable lighting solution that provides explosion proof protection along with the security of an emergency battery backup. Â
This Biaxial light works, mounts and is wired like our EPL-48-2L explosion proof fluorescent light fixtures. The main difference is that we attach an extra Bodine ballast box to the unit that adds the emergency light functionality to the fixture. This explosion proof emergency light will run the standard 90 minutes after power is lost. The light recharges the battery once standard electrical power is restored and maintains the battery until needed again. Standard configuration includes a single emergency ballast that will run a single lamp at 900 lumens for 90 minutes. For an additional charge, a second ballast can be added to run a second lamp for 1800 total lumens output for 90 minutes.
This Biaxial Lamp fixture is multi-voltage capable and can operate on voltages ranging through 100/120 Volts 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ, and 277 Volts 60 HZ with 347 Volt and 480 Volt versions available upon request.
Additional mounting options:
Unless otherwise specified, our standard, most popular configuration is the bracket end mounting shown in the photos above. We also offer a pendant mount for those needing to suspend the fixture away from the ceiling surface (i.e. suspend from pipe or conduit).
Standard Bracket Mounts
: Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg. The first picture shown above illustrates the ballast side bracket and also shows the access caps for changing the bulbs. The second picture shows the bracket at the opposite end of the fluorescent light.
Made in USA Quality
1. Each unit dialectically tested.
Specifications
NRTL Listed for United States & Canada
United States & Canada NRTL Listed forÂ
Dimensions: W-11.25" L-52" H-8.5 "
Weight: 65 Lbs
Total Watts: 160 watts
Voltage: 120V-60hz 220V-50hz 240V-60hz 277V-60hz
Optional Voltages: 347 Volt and 480 Volt
Ambient Operating Temp Range :Â -30 C to 70 C*
: 65 Lbs 160 watts 120V-60hz 220V-50hz 240V-60hz 277V-60hz347 Volt and 480 VoltAmbient Operating Temp Range-30 C to 70 C* T6 Rated -30 C
90 C N/A N/A Bracket Standard - Pendant Optional 1/2 inch threaded info@purilite.ca
Operating Temp Rating: T6 Rated
Minimum Operating Temp: -30 C
Maximum Case Temp: 90 C
Maximum Case Temp: Minimum Operating Temp: -30 C
90 C
Beam Angle: N/A
Color Temp: N/A
Mounting: Bracket Standard - Pendant Optional
Wiring Hub: 1/2 inch threaded
