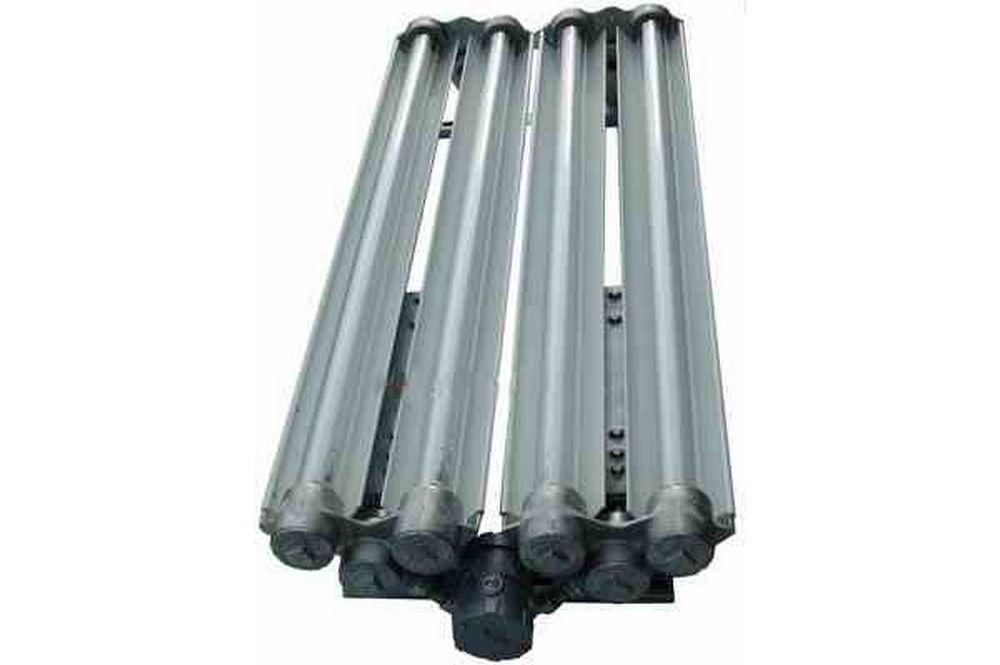

Explosion Proof Fluorescent Light w/ Emergency Battery Backup - 4' 8 Biaxial Lamp - Paint Booth
Explosion Proof Fluorescent Light w/ Emergency Battery Backup - 4' 8 Biaxial Lamp - Paint Booth
| EPL-EMG-48-4L-BX Explosion Proof Biaxial Failsafe Emergncy Light | Ratings/Approvals |
| NRTL Listed for United States & Canada | Class I Division 1, Groups C and D T6 |
| Lamp Type: Biaxial Compact Fluorescent | Class I Division 2, Group A,B,C,D |
| Dimensions: 52"-L x 22.50"-W x 8.5"-H | Class II, Division 1 & 2, Groups E,F,G |
| Weight: 130 Lbs | NRTL Certified to UL 595 Marine Type (Saltwater) |
| Voltage: Universal 120-277VAC 50/60 Hz | NRTL Certified to UL 844, UL 924 |
| Total Wattsage 56 watts | NRTL Certified to UL 1598 Marine Type |
| Total Lumens: 28,000 | Certified Canadian Standards |
| Lumens per Lamp: 3,500 | Listed for Paint Spray Booths |
| Luminous Efficacy: 87.5 Lm/W | California Title 24 Compliant |
| Lamp Life Expectancy: 22,500 Hours | IP67 Rated - Waterproof |
| Color Temp: 4000K | T6 Temperature Rating |
| Color Rendering Index: 82 | NEMA 4X |
| Beam Angle: 150° | Approved for Confined Spares |
| Ambient Operating Temp Range:0° C to +50°C | Approved for Confined Spares |
| Operating Temp Range: T6 Rated | Factory Sealed Fixture |
| Minimum Operating Temp: -30° C | Failsafe Lighting |
| Maximum Case Temp: 90° C | Emergency Battery Backup |
| Battery AC Input Voltage: 120/277V AC 60Hz | Switch Leg for Powering Light On/Off |
| Battery AC Input Current: 90 mA | 90+ Minute Runtime |
| Battery AC Input Current: 90 mA | Made in the USA |
| Battery Output Current: 120V @ 165mA - 277V @ 72mA | |
| Illumination Time: 90+ Minutes |  |
| Battery Type: High Temp, Maintenance Free, Nickel Cadmium |  |
| Battery Lifespan: 7 to 10 Years |  |
| Battery Charge Current: 250 mA |  |
| Battery Recharge Time: 24 Hours | |
| Housing Material: Cast Aluminum End Caps, Aluminum Reflectors - Copper Free | |
| Lens Material: Hardened Borosilicate Glass Tubes | Toll Free: 1-800-369-6671 |
| Gasket Material: Buna Rubber O-Rings | Intl: 1-214-616-6180 |
| Mounting: Unistrut Surface Mount - Pendant Mount Optional | Fax: 1-903-498-3364 |
| Wiring Hub: 1/2" NPT | E-mail: |
| Made in the USA The Larson Electronics EPL-EMG-48-4L-BX Explosion Proof, Paint Booth Approved, Fluorescent Light Fixture with Emergency Battery Backup is NRTL Listed for United States and Canada Class 1 Division 1, Class 1 Division 2 and ideal for hazardous locations where flammable petrochemical vapor or combustible dust exists or has the potential to exist. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The EPL-EMG-48-4L-BX is our 4 foot long, 4 lamp style, Class 1 Division 1 and Class 2 Division 1 & 2 explosion proof fluorescent light which is equipped with an added battery backup providing 90 minutes of emergency runtime. This T6 temperature rated fixture comes standard with eight Bi-Axial 40 watt compact fluorescent bulbs which produce a combined 160 watts and 28,000 lumens of illumination. This fixture is multi-voltage capable and provides operators in hazardous locations with a reliable and durable lighting solution that provides explosion proof protection along with the security of emergency battery backup. | ||||
|
||||
This fluorescent light works, mounts and is wired like our EPL-48-4L-BX explosion proof fluorescent light fixtures. The main difference is that we attach an extra Bodine ballast box to the unit that adds the emergency light functionality to the fixture. This explosion proof emergency light will run the standard 90 minutes after power is lost. The light recharges the battery once standard electrical power is restored. Standard configuration includes a single emergency ballast that will run a single lamp at 3500 lumens for 90 minutes. For an additional charge, a second ballast can be added to run a second lamp for 7000 total lumens output for 90 minutes. The battery backup unit includes a switched leg for turning the light fixture on/off without kicking the unit into emergency mode.
Mounting: Standard end mounting via Unistrut. The Unistrut is attached to our standard L-bracket mounts. These L-bracket mounts can be adjusted to create angle mounts. As illustrated in the photos above, the series of mounting holes at the top of the bracket enable this explosion proof LED light to be attached to any wall, ceiling or floor surface. A simple through bolt can be used to secure the light to the surface. A single junction box at one end of the light is provided for the electrical connection.
Suspension Mounting: Pendant mount fixtures hang from the ceiling and are suspended by rigid pipe. Each fixture features a 1/2†NPT junction box on one end, and a 1/2†NPT bracket on the other end of the fixture. Operators bring rigid pipe down to the threaded mounting hubs. Wiring is fed down through the rigid pipe to the junction box and tied in to the fixture’s lead wires, completing the electrical connection. The threaded mounting bracket provides support for the opposite end of the fixture.
Suggested Applications: Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, gas processing plants, chemical manufacturing, waste treatment plants, gas processing plants.
|
