Explosion Proof 26 Watt Fluorescent Handheld Light - Class 1 Division 1 - 100' Cord

LARSON ELECTRONICSSKU: PL3-EPL-FL26-100
filler

Precio:
Precio de venta$2,584.00

Descripción

Specifications / Additional Information
EPL-FL26-100 Work Light F.M. Ratings
FM Listing: United States Class 1, Division 1 for Groups C, D
Dimensions: L-14.5 " Dia-3.5" Class II, Division 1 Groups E, F, G
Total Watts: 26 watts Class III, Division 1
Total Lumens: 1,740 NEMA 4
Lux: At Lens: 15,000
Voltage: Stnd-120V-60hz Optional-120 Volts, 50 Hz and 220 volts, 50 Hz
Mounting: Handheld / Hanging Hook Toll Free: 1-800-369-6671
Wiring: 100` SOOW Cord Intl: 1-903-270-1187
Cord Cap: 5-15, 6-15, 6-15, L5-15, L6-15, BS1363, Schuko, or Pigtail E-mail:
' Product Overview '

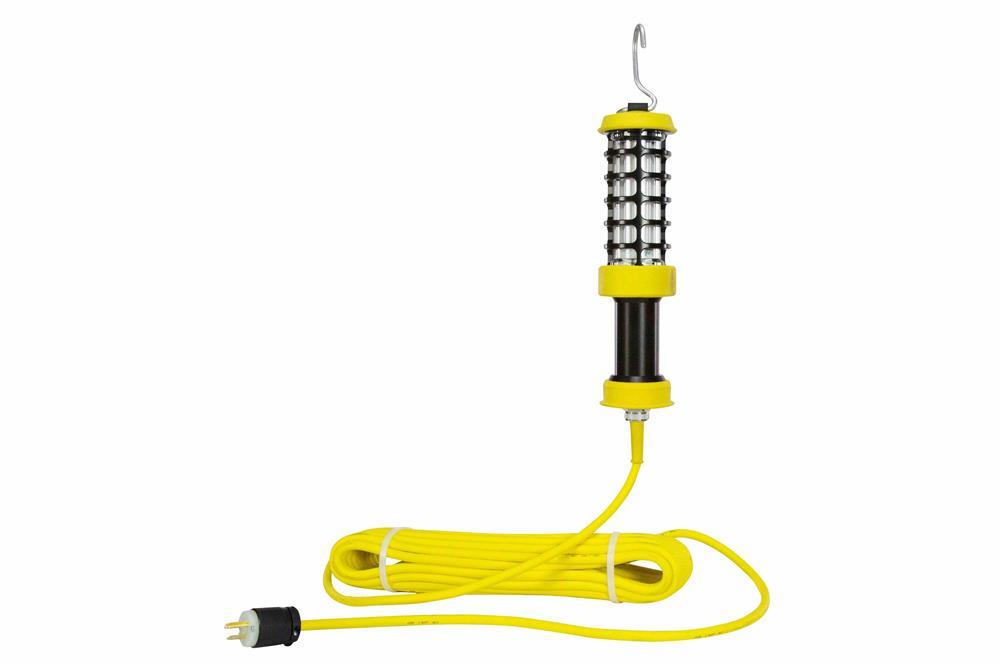

Made in the USA The Larson Electronics EPL-FL26-100 Hazardous Area Fluorescent Work light is F.M. approved Class 1 Division1 Groups C and D - FM 508 listed and is ideal for close quarter work and inspection activities in hazardous locations requiring explosion proof protection. This 26 watt explosion proof fluorescent work light from Larson Electronics produces 1,740 lumens of fluorescent illumination and comes complete with 100 feet of explosion proof cord. The EPL-FL26-100 fluorescent drop light ballast is contained within the handle while the housing is constructed of non sparking aluminum with molded bumper guards, an annealed glass tube shield and integral lamp shock absorbers. An inline ballst is also available. This hazardous location hand lamp is designed to Article 500 of the National Electrical Code and is Class 1, Division 1 and Class 2 Division 1 hazardous location environment approved. This explosion proof fluorescent hand lamp can be installed and used within the hazardous location area making it ideal for hazardous work areas where a ready source of easily managed lighting is desired.
40` Container Dark Click Photos to Enlarge Illuminated by EPL-FL26-100-HR
Click Photos to Enlarge
This 26 watt fluorescent light is suitable for use in areas where petrochemical vapors and various dusts are present and projects 1,740 lumens of light, roughly equivalent to a 100 watt incandescent bulb as estimated by Sylvania. Fluorescent lights are popular in paint prep, painting and post-paint inspection operations due to the even white color light produced. Incandescent lights tend to create yellowish, shadowy light that confuses the eye and makes it difficult to examine a work area with consistency. The light output, color and evenness of coverage make fluorescent lights popular for a wide variety of close quarter work and inspection activities. This hand lamp has the ballast inside the handle so the operator doesn`t need to drag the ballast housing around. This can be particularly annoying when the transformer becomes entangled in the cord. The ballast is lightweight and encapsulated in the handle so that operator can easily move to different positions without having to stop and adjust an inline ballast unit. The feedback on this feature has been very positive. This explosion proof fluorescent hand light comes standard with 120 Volts, 60 Hz for US voltages but is also available in 120 Volts, 50 Hz (Mexico) and 220 volts, 50 Hz for international usage.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring and Plug: This explosion proof LED work light is equipped with 100 foot of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Made in USA Quality Lamp Features
1. Federal Spec JC-580A Cord. 2. Indoor or outdoor use. 3. 15 amp, 1-4 conductors 600 Volt 4. Rugged fabricated steel and cast aluminum construction. 5. Gray epoxy finish on steel parts. 6. FM Listed 508 table 36.1 (3 and 4 conductor units with cable only) 7. Conforms to NEMA 9 and NEMA 4 (IP56) standards 8. SOOW cable. 26 watt fluorescent light produces 1740 lumens Non-sparking aluminum housing Ballast contained in handle (inline also available) Molded rubber bumper guards Annealed glass tube shields prevent shattering Integrated lamp shock absorbers prevent drop damage to bulbs Swivel hook for hanging and hands free operation Explosion proof cord
