Explosion Proof Compact LED Handlamp - Class I, Div. I - 100' SOOW Cord - EXP Plug - 400 Lumens

LARSON ELECTRONICSSKU: PL3-EPL-FL26-LED-100-EPP
filler

Precio:
Precio de venta$3,014.00

Descripción

Specifications / Additional Information
EPL-FL26-LED-100-EPP Work Light F.M. Ratings
Listing: United States Class 1, Division 1 for Groups C, D
Lamp Type: LED Class II, Division 1 Groups E, F, G
Dimensions: L-14.5 " Dia-3.5" FM Listed JC-580A Cord
Voltage: 120-277V AC 50/60 Hz Class III, Division 1
Total Watts: 5 Watts NEMA 4
Total Lumens: 400 FM Listed JC-580A Cord
Luminous Efficacy: 80 Lm/W
Lamp Life: 50,000+ Hours
Color Temp: 5600K
Lux At Lens: 48,900
Mounting: Aluminum Swivel Hook Toll Free: 1-800-369-6671
Wiring: 100` 16/3 SOOW w/ Straight Blad Plug Intl: 1-903-270-1187
Cord Cap: 5-15 Straight Blade Plug, 5-20 Straight Blade Plug, 6-20 Straight Blade Plug E-mail:
' Product Overview '

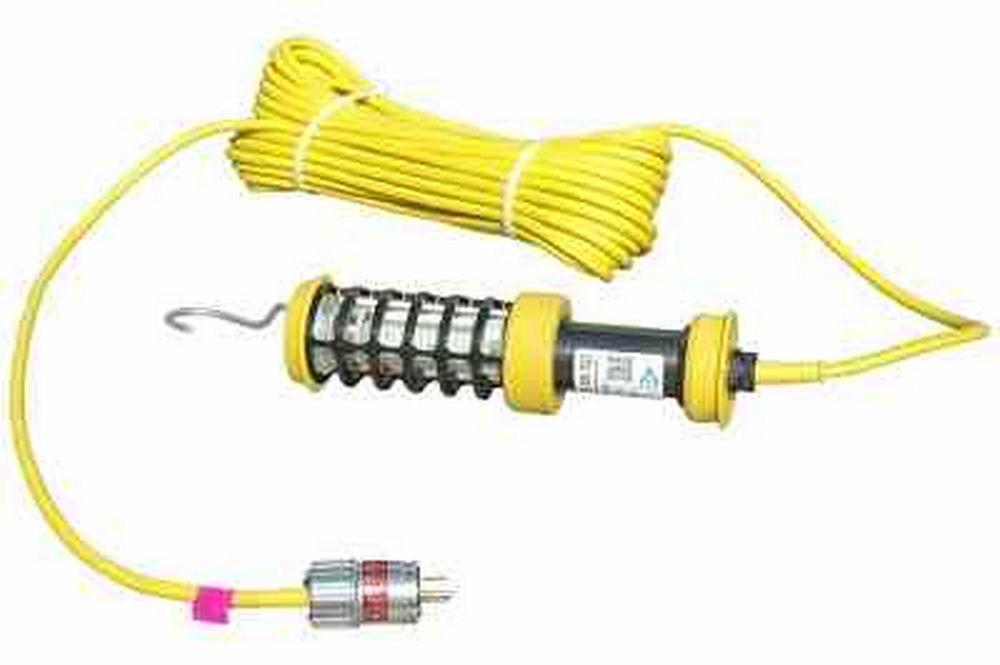

Made in the USA The Larson Electronics EPL-FL26-LED-100-EPP Compact Hazardous Location LED Work light is F.M. approved Class 1 Division1 Groups C and D, FM 508 listed, and is ideal for close quarter work and inspection activities in hazardous locations requiring explosion proof protection. This 5 watt explosion proof LED handlamp from Larson Electronics produces 400 lumens of pure LED illumination and comes complete with 100 feet of SOOW cord termintated in an 1523 explosion proof straight blade plug. The EPL-FL26-LED-100-EPP LED drop light`s housing is constructed of non sparking aluminum with molded bumper guards, an annealed glass tube shield and integral lamp shock absorbers. This hazardous location hand lamp is designed to Article 500 of the National Electrical Code and is Class 1, Division 1 and Class 2 Division 1 hazardous location environment approved. This explosion proof LED hand lamp can be installed and used within the hazardous location area making it ideal for hazardous work areas where a ready source of easily managed lighting is desired. This particular unit`s internal LED circuitry automatically senses and adjusts the incoming current to the correct level, allowing the unit to run off a variety of voltages ranging from 120 - 277VAC. The lamp assembly contains 24 individual LED diodes that produce an exceptionally bright output, creating three times as much light as its fluorescent counterparts. The Kelvin temperature color on this unit is 5600K and the rated lifespan of the LEDs lamp assembly is approximately 50,000 hours.
EPL-FL26-100 fluorescent hand lamp illuminating a closed warehouse. EPL-FL26-LED-100`s output, more than triple the amount of it`s fluorescent counterpart.
This 5 watt LED light is suitable for use in areas where petrochemical vapors and various dusts are present and projects 400 lumens of light, roughly equivalent to a 150 watt incandescent bulb as estimated by Sylvania. This unit is approximately 287% brighter than it`s fluorescent counterpart, nearly tripling the output with use of a low wattage, low amp draw LED light emitter. LED lights are popular in paint prep, painting, and post-paint inspection operations due to the even, pure, white color light produced. Incandescent lights tend to create yellowish, shadowy light that confuses the eye and makes it difficult to examine a work area with consistency. The light output, color, and evenness of coverage make LED lights popular for a wide variety of close quarter work and inspection activities. This unit is rated Class 1, Division 1 and is complete with 100’ of SOOW 16/3 AWG cord ending in an 1523 explosion proof straight blade plug that meets federal specification JC-580A. Wiring & Plug: This explosion proof task light is equipped with 100 foot of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Made in USA Quality Lamp Features
1. Federal Spec JC-580A Cord. 2. Indoor or outdoor use. 3. 35 amp, 1-4 conductors 600 Volt, 5-12 conductors 250 Volt. 4. Rugged fabricated steel and cast aluminum construction. 5. Gray epoxy finish on steel parts. 6. UL Listed 508 table 36.1 (3 and 4 conductor units with cable only) 7. Conforms to NEMA 9 and NEMA 4 (IP56) standards 8. SOOW cable. 9. Explosion Proof Plug 9. 4-roller adjustable cable guide and Ball Stop 5 watt fluorescent light produces 400 lumens Non-sparking aluminum housing Molded rubber bumper guards Annealed glass tube shields prevent shattering Integrated lamp shock absorbers prevent drop damage to bulbs Swivel hook for hanging and hands free operation SOOW Cord
