Explosion Proof Light on Adjustable Rail/Ladder Bracket Mount - 150W High Pressure Sodium - 220V

LARSON ELECTRONICSSKU: PL3-EPL-JH-150W-150-220V
filler

Precio:
Precio de venta$5,598.00

Descripción

Specifications / Additional Information
EPL-JH-150W-150-220V High Pressure Sodium U.L Ratings
Lamp Type: High Pressure Sodium Class I & II, Division 1 & 2, Groups C,D
Lamp Only Dimensions:W-13 1/4"  D-12 1/2"  H-11 1/2" Class II Division 1 & 2, Groups F, G
Bracket Dimensions: Adjustable from 26" to 43" Class III
Watts: 150 UL 781 portable HAZLOC use
Lamp Life Expectancy: 25000+ Hours ECP 1523 5-15P plug
Voltage: 220VAC UL 595 for Marine Type
Lighting Configuration: Flood Pattern UL Listed U.S. / CSL
Mounting: Aluminum Ladder/Scaffold Bracket
Operating Temp Range: T4 rated
U.L. Listing: Marine Saltwater Use
Wiring: 100 ft SOOW Cord ECP1523 plug Toll Free: 1-800-369-6671
U.L Approval: Intl: 1-903-270-1187
E-mail:
' Product Overview '

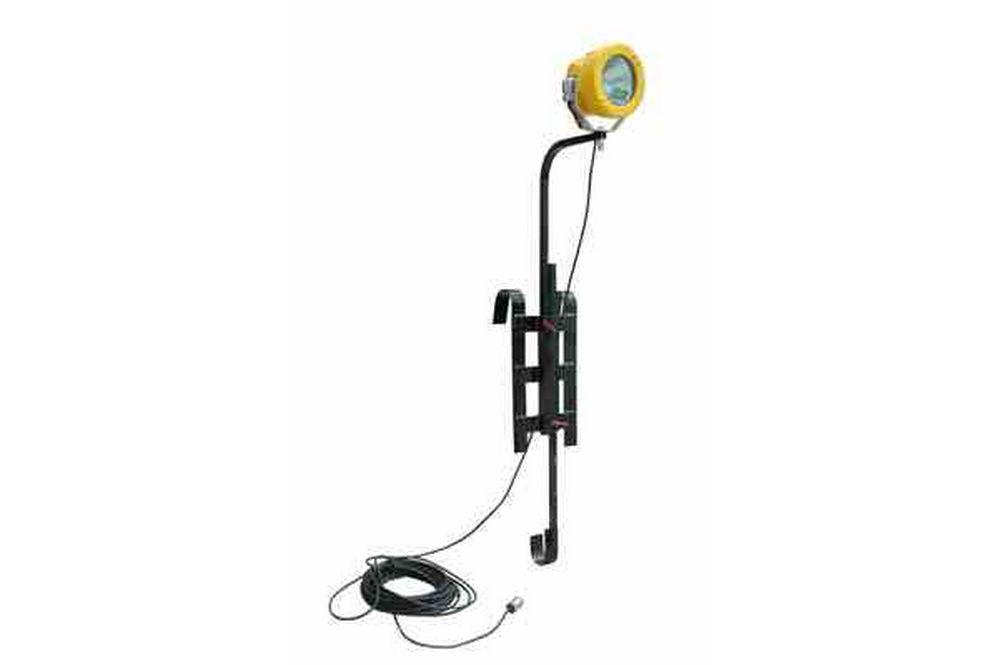

Made in the USA The EPL-JH-150W-150-220V high pressure sodium hazardous area light fixture from Larson Electronics is capable of illuminating an area 16,000 square feet in size. Weather proof and U.L. listed for marine use, this high pressure sodium lamp comes attached to an aluminum rail/ladder mount bracket that allows operators to easily mount this unit to ladders, handrails, catwalks and other similar structures.. The versatile EPL-JH-150W-150-220V bracket mounted high pressure sodium fixture from Larson Electronics is weatherproof and comes with an adjustable aluminum ladder/scaffold mount that makes it ideal for industrial applications, maintenance, cleaning and servicing duties, large open space hazardous work areas and any Class 1 DIV 2 Groups A,B,C,D area where ladders, scaffolding and other railings provide opportunities for mounting. This unit contains a 150 watt high pressure sodium lamp and is capable of illuminating 16,000 square feet of work space. The 150 watt high pressure sodium lamp produces illumination equivalent to a typical 400 watt halogen bulb while drawing only 150 watts at .675 amps. The high pressure sodium lamp runs cooler than a 400 watt halogen, resulting in an easier to handle unit and less heat in the workspace. The aluminum rail/ladder bracket can be adjusted from 26 inches to 43 inches to allow mounting to a wide variety of railings, scaffoldings or ladders.
This units` lamp assembly includes a 150 watt high pressure sodium bulb, internal ballast and aluminum finish reflector in a copper-free cast aluminum housing with a thermoset powder coat finish. The shell, covers and sealed fittings are also made of copper-free aluminum. The lens is constructed of thermal shock and impact resistant tempered glass and the housing contains threaded joints lubricated with non-drying lubricant. The high pressure sodium lamp in this unit has no filament and is thus highly resistant to damage from shocks or impacts. The lamp is rated at 25000+ hours of life providing longer service life than typical halogen lamps. The lamp operates with 220 VAC and is supplied with 100 feet of 16/3 SOOW cord ending in an explosion proof straight blade plug. This light is highly durable and produces high light output in a wide flood pattern. The lamp is mounted to an aluminum bracket with adjustable J-hook bottom bracket that enables operators to securely mount the light to any ladder or scaffolding. Lamp adjustment is via an adjustable yolk that allows the operator to adjust the lamp both vertically and horizontally. All hardware on this unit is non sparking/corrosion resistant and the included explosion proof cord is resistant to damage from chemicals and abrasion. Suggested Applications: include but are not limited to wastewater treatment plants, refinery tanks, oil and gasoline loading docks, coal pulverizing facilities, munitions storage areas, tunnel projects, utility gas plants, power plant areas, hazardous areas and mining conveyor belts.
Made in the USA Quality Metal Halide Benefits
1. High Efficiency High Pressure Sodium lamp. 2. 150 Watt Output. 3. Rugged Die Cast Aluminum Lamp Housing. 4. 3/4" Shock Resistant Tempered Glass. 5. Heavy Duty Checmical/Abrasion Resistant Cord. 6. 220 Volt Operation. 7. Low Maintenance. 8. Adjustable Ladder/Scaffold Mount. 9. Yellow Powder Coat Paint Finish 10. UL Listed for Marine Environments. 1. Long lamp life. 2. High efficiency and low amp draw after initial startup. 3. High durability and reliability. 4. High output and very good color rendering. 5. Vibration and shock resistant. 6. Low maintenance.
