100W Explosion Proof LED Light - 11,667 Lumens - Class 1 Div 1 & Class 2 Div 1 - Adustable J-Bracket

100W Explosion Proof LED Light - 11,667 Lumens - Class 1 Div 1 & Class 2 Div 1 - Adustable J-Bracket

$6,790.00 CAD
$6,790.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
EPL-JH16C-100LED-100 Explosion Proof Tank Light Ratings/Approvals
Listing: United States Class I Division 1, Groups C & D
Lamp Type: Cree LED Class I Division 2, Groups C,D
Dimensions: 16" Light head Class II, Division 1 - 2, Groups E,F,G
Weight: 55 lbs cETL Certified to UL844 and C22.2 Standards
Voltage: Universal 120-277V AC 50/60 Hz Explosion Proof Cord Cap Options
Total Watts: 100 watts
Total Lumens: 11,667
Luminous Efficacy: 116.67 Lm/W
Beam Angle: 60° or 125°
Beam Lux: 8500 @ 1 Meter 1250 @ 3 Meters
Operating Temp Range: -40°C to +65°C
LED Lamp Life Expectancy: 60,000 Hours
Color Temp: 5000K, 4000K, 3000K
Mounting: Aluminum Ladder/Rail J-Bracket
Wiring: 100 feet SOOW Cord w/ Explosion Proof Cord Cap
Cord Cap Options: 5-15P, 5-20P, 6-20P
' Product Overview '

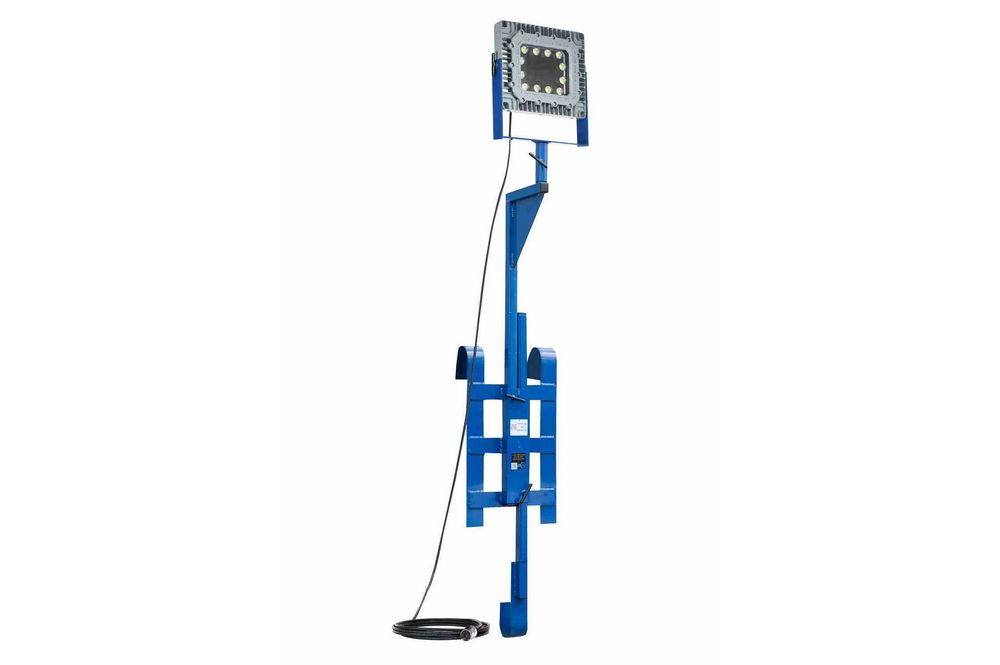

Made in the USA The EPL-JH16C-100LED-100 Explosion Proof LED Light from Larson Electronics is rated Class I Divisions 1-2 Groups C & D and Class II Divisions 1-2 and uses LEDs to produce 11,667 lumens of light while drawing only 100 watts. This hazardous area Cree LED light comes attached to an aluminum rail/ladder mount bracket that allows operators to easily mount this unit to ladders, handrails, catwalks and other similar structures. The EPL-JH16C-100LED-100 explosion proof LED light provides 8,000 square feet of work area coverage with 11,667 lumens of light output. This portable LED light has an angle adjustable light head measuring 16 inches in diameter and an aluminum rail/ladder bracket that can be adjusted from 26 inches to 43 inches to allow mounting to a wide variety of railings, scaffoldings or ladders. This explosion proof LED light has a light head measuring only 16" in diameter, which allows it to fit through most standard sized manholes and entryways and produces a brilliant flood pattern of light that is ideal for illuminating large enclosed areas, further adding to this unit`s desirability as a portable hazardous area lighting solution.

Mounted at 10` Mounted at 12` Mounted at 15`
The above images display the EPL-JH16C-100LED-100 illuminating a take with a 90` circumference at three different heights.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This portable LED light is comprised of a 16 inch LED light head mounted to an aluminum bracket with an adjustable J shaped bottom hook that enables operators to securely mount the light to any ladder or scaffolding. Lamp adjustment is via an adjustable yolk that allows the operator to position the lamp angle through a full 90 degrees of vertical adjustment. All hardware on this unit is non sparking/corrosion resistant and the power cord is resistant to damage from chemicals and abrasion. Included with this LED light cart is 100 feet of SOOW cord terminating in an explosion proof plug, which combined with the 90 degrees of tilt offered by the LED light head provides an effective alternative to often cumbersome explosion proof string lights. This unit is universal voltage and can be can be operated with 120-277 VAC, 50/60Hz. 25 peel off mylar overspray lamp protectors ship with this ladder rack mount light, further adding to the versatility and convenience this LED light. The protectors provide lamp protection from dirt or debris and can be removed, cleaned and replaced, lessening the need for tedious lamp cleaning or replacements. This lamp is T5 temperature rated and the LED light head retains 80% of its lumen output after 60,000 hours of use, far longer than incandescent or fluorescent lamps.
Click Photos to Enlarge
60° Beam Angle 125° Beam Angle
Beam Angles: When used as a portable lighting solution, the varying beam angles are each individually ideal for several environments. The 60° beam provides the most intense beam of the three options. It is perfect for narrow, confined spaces and is ideally suited for tank cleaning purposes. It offers focused light to provide ample illumination to tight work spaces and other environments. The 125° beam offers a more diffused source of light that is also less intense in brightness. It is a great general area work light and performs well when used for outdoor illumination.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This explosion proof tower mounted flood lighting system is equipped with 100 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets.
Made in USA Quality Superior LED Benefits
1. Approved Class I Divs 1-2 Class II Divs 1-2. 2. Fixture arrives assembled and lamped to reduce installation time and cost. 3. J-Bracket constructed of non sparking aluminum. 4. No ballast box. No ballast to replace. 5. Extreme long life LEDs reduce maintenance and replacement costs. 6. Light weight and High Output. 7. 25 peel off mylar overspray lamp protectors ship with the unit. 8. 11,667 Lumens from only 100 watts. 9. Mercury free shock proof LED lamp light head. 1. 50,000+ hour lifespan. 2. Can SAVE 50% or more on energy. 3. 100% recyclable. 4. No toxins-lead, mercury. 5. No UV light, infrared radiation or CO2 emissions. 6. Bright, even light maintains consistent color over time. 7. Instant on/off - No flickering, delays or buzzing. 8. Very good color rendering. 9. Vibration/impact resistant. 10. Significantly cooler operation. 11. Less frequent outages, higher output improves workplace safety.
