150W Explosion Proof UV LED Light Tower - Quadpod Mount - C1D1 - 365NM - 100' Cord w/ EXP Plug
150W Explosion Proof UV LED Light Tower - Quadpod Mount - C1D1 - 365NM - 100' Cord w/ EXP Plug
| EPL-QP-1X100LED-UVA-100 Explosion Proof UV LED Quadpod Tower | Ratings |
| Listing: United States & Canada | Listed for United States and Canada |
| Lamp Type: LED | Class I, Division 1 Groups C,D |
| Dimensions: 14"-W 16"-H 5"-D- Light Head - 7` to 12` - Quadpod | Class I, Division 2 Groups A,B,C,D |
| Weight: - | Class II, Divisions 1&2 Groups E,F,G |
| Voltage: 120-277V AC 50/60Hz | Class III |
| Total Watts: 150W | T5 Temperature Rating |
| Total Intensity: 46,550 mW | Certified to UL844 and C22.2 Standards |
| Efficiency: 350 mW/w | Paint Spray Booth Approved |
| Lamp Life: 50,000+ Hours | LEL Approved |
| Wavelength Curve: 350-400 NM - Peak @ 365 NM | IP67 Rated Waterproof |
| Color: Ultraviolet - 365 NM | Multiple Driver Banks |
| Lighting Configuration: Flood Pattern | 80% Intensity Retention after 50,000 Hours |
| Lamp Housing Material: Copper-Free Cast Aluminum | Â |
| Lens Material: Hardened Borosilicate Glass | Â |
| Quadpod Material: Non-Sparking Aluminum Tubing w/ Rubber Casters | Â |
| Mounting: Non-Sparking Wheeled Aluminum Quadpod | Â |
| Wiring: 100` 16/3 SOOW Cable w/ EXP Cord Cap | Â |
| Cord Cap: 15A 5-15P, 20A 5-20P or 20A 6-20P | Â |
| Â | Â |
| LED Driver Specs | |
| Input Voltage: 100-277V AC | |
| Input Current: 1.8A Max | Toll Free:Â 1-800-369-6671 |
| Power Factor: 0.992 | Intl:Â 1-214-616-6180 |
| Output Voltage: 54V Max | |
| Output Current: 2.1A |
|

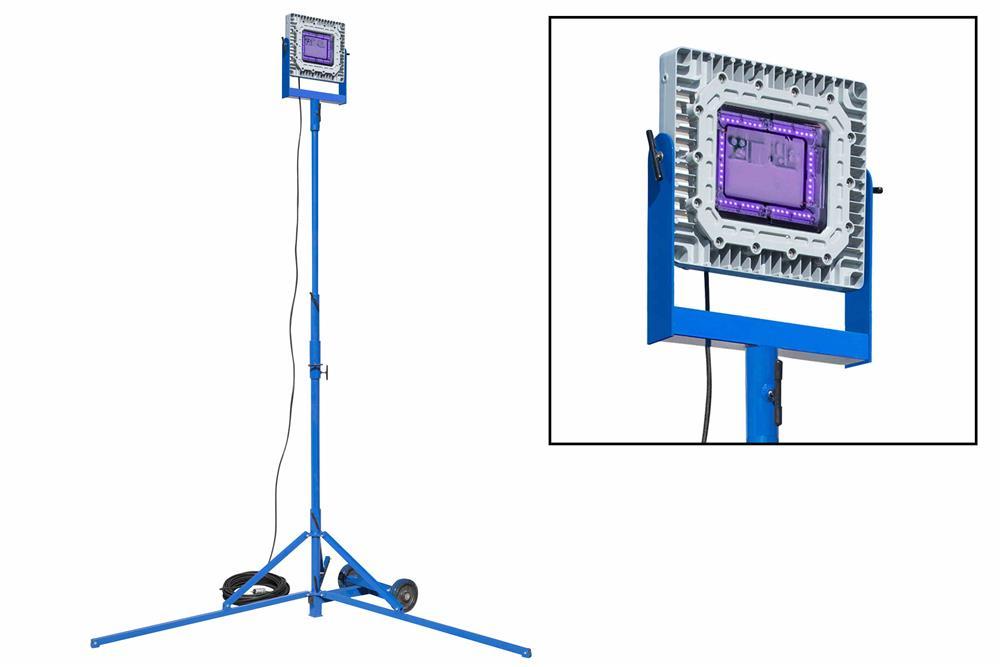

The EPL-QP-1X100LED-UVA-100 Quadpod Mounted Explosion Proof UV LED Light Tower from Larson Electronics offers a portable UV lighting solution for combustible environments and hazardous locations. Capable of extending to 12 feet and retracting to 7 feet, the 150-watt UV LED light head provides a 365 nm beam during use. The portable LED light tower operates on universal 120-277V AC and comes with 100` of 16/3 SOOW cord and an explosion proof cord cap.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS, LIGHT TOWERS, OR QUADPODS*
The EPL-QP-1X100LED-UVA-100 is a quadpod mounted explosion proof UV LED lighting system for flammable work sites. The UV LED light head provides 46,550 mW of high quality ultraviolet light while drawing only 150 watts. This high output UV LED fixture provides a 6,384 µW/cm2 center beam maximum intensity at 12" while providing a minimum 2,660 µW/cm2 intensity over a 14" by 14" area. Mounted on a quadpod, the fixture has been thoroughly tested with the DuPont line of ultraviolet curable paint and primers, accelerating the cure times over metal halide fixtures with surface temperatures as low at 55°F.
This UV LED light is universal voltage capable and can be operated with 100-277V AC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25V. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
|
|||||||||
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
The EPL-QP-1X100LED-UVA-100 uses ultraviolet LED light technology, a technology that is far better in energy saving than traditional fluorescent bulbs used for the same purposes. Traditional ultraviolet lights require a coating to block out visible light or a special composition of gases and chemicals used to create a higher concentration of ultraviolet light. This process, however, also produces many other wavelengths of light which go unused and end up as wasted energy. LED lights are unique in that they have a narrower wavelength band than traditional ultraviolet sources and therefore do not require these special coatings. As a result, LED lights do not produce unused, wasted light and therefore consume less energy than traditional UV lights on the market. LED lights have the added benefit of being capable of producing very specific wavelengths with tighter curves and are more durable and light weight as well. This eliminates harmful UV-B and UV-C wavelengths from being emitted from the light source, adding in productivity and safety during operation.
|
|||||||||
