Explosion Proof LED String Lights - 10 lights - Daisy Chain Connection - 12/3 SOOW - 100ft Stringer

LARSON ELECTRONICSSKU: PL3-EPL-SL-10-LED-12.3-E2E
filler

Precio:
Precio de venta$14,482.00

Descripción

Specifications / Additional Information
EPL-SL-10-LED-12.3-E2E Explosion Proof String Light Set U.L. Ratings
Listing: United States Class 1, Divisions 1 & 2, Groups C, D
Dimensions- Each Lamp: L-16.5"  Diam-5"  Class 2, Divisions 1 & 2, Groups, F, G
Total Watts: 100 Class 1, Zone 1, Group IIB
Single Lamp Watt: 10 watts NEMA 4X
Voltage: 120-277V AC or 12-24V DC
Amps: 0.84 120V AC
Mounting: Handheld / Hanging via Aluminum Hooks
Wiring: 125` 12/3 SOOW Cable - 10` between lamps - 25` input whip - 10` output whip
Total Length: 125`
Cord Cap: 5-20 or 6-20 Explosion Proof Plug Toll Free: 1-800-369-6671
Outlet: 5-15/5-20 or 6-15/6-20 Explosion Proof Outlet Intl: 1-214-616-6180
Single Lamp Weight: 6 lbs
Total Weight: 70 lbs
' Product Overview '

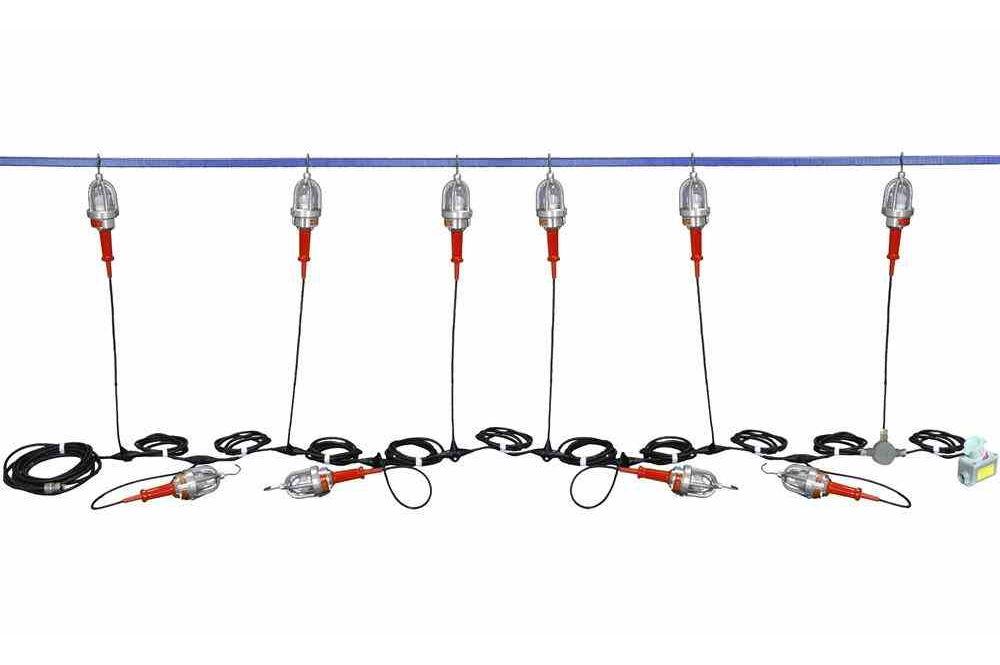

Made in the USA The Larson Electronics EPL-SL-10-LED-12.3-E2E Explosion Proof String Light set is UL Listed Class I Division 1 Groups C and D and is ideal for general close work and inspection activities in hazardous locations requiring explosion proof protection. This explosion proof string light set from Larson Electronics contains a total of ten 10 watt work lights equipped with aluminum hooks and connected in series along 90 feet of 12/3 SOOW explosion proof cord. A molded T junction is mounted every ten feet, with 3 feet of 14/3 SOOW cord connecting a single drop light to the backbone. The cord on this unit is terminated with a 20 amp 5-20 or 6-20 Class I Division 1 explosion proof plug for complete protection. With this arrangement, each drop light cannot spark if pulled apart or dragged. An 25 foot tail section of main SOOW cord is included to allow ample length for connection to power sources. An explosion proof outlet at the end of the backbone provides the ability to connect multiple units end to end, allowing operators to daisy chain multiple stringers together along the job site.
  10 Watt LED Bulb Molded T Connector w/ Hook Ring   25` whip w/ EXP Plug
Click Photos to Enlarge Click Photos to Enlarge Click Photos to Enlarge
100 Watt Incandescent Bulb With the EPL-SL-10-LED-12.3-E2E
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This unit incorporates ten explosion proof LED hand lamps connected in series and is suitable for use in areas where petrochemical vapors and various dusts are present. The machined aluminum housings, cast aluminum guard, tempered glass lamp globe, and abrasion resistant cord make this a very durable unit that will resist damage from chemicals, abrasion, vibrations and impacts. This string lighting solution will provide the lighting you require in a flexible, easy to manage configuration. The hand lamps can be moved around and hooked to different points on your scaffold. The lights, however must remain within 10 feet of one other. Each molded T section contains a hook eyelet, allowing operators to suspend the entire backbone off the ground and out of the work space.
Click Photos to Enlarge
5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This explosion proof flood light is equipped with 100 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur.
Stringer Energy Consumption Comparison
Incandescent CFL LED
Wattage 1000 watts 260 watts 100 watts
Amp Draw @ 120V AC 8.34 amps 2.17 amps 0.84 amps
Amp Draw @ 277V AC 3.61 amps 0.94 amps 0.36 amps
Amp Draw @ 12V DC 83.34 amps 21.67 amps 8.34 amps
Amp Draw @ 24V DC 41.67 amps 10.84 amps 4.17 amps
Lamp Life Expectancy 1,500 hours 8,000 hours 50,000 hours
Color Temperature 2800K 4300K 6000K
Operation cost per year (8hs/day @ 11c/kWh) $321.2 $83.52 $32.12
This stringer light set is Class 1, Division 1 rated for Groups C and D and Class II, Division 1 Groups F and G. This unit is multi-voltage and configured to operate on 120-277V AC or 12-24V DC, please choose your configuration below.
Made in USA Quality Lamp Features
1. Federal Spec Cord. 2. Explosion Proof. 3. Total of  (10) 10 watt LED Lamps. 4. Non-sparking aluminum construction. 5. UL Class 1 Div 1 Class 2 Div1 7. 120-277V AC or 12-24V DC Operation 8. SOOW cable. 9. Aluminum Hooks for Convenient Placement. 10. Daisy Chain Connections. 100 watts of LED illumination Non-sparking aluminum housings Light weight mold T Junctions Cast aluminum guard prevent lamp or globe damage Tempered Soda-Lime Glass Lamp Globe Integrated lamp shock absorbers prevent drop damage Swivel hook for hanging and hands free operation 12/3 SOOW Abrasion Resistant Cable
