150W Explosion Proof LED Light - Non-Spark Aluminum Base - 24V AC/DC - C1D1

LARSON ELECTRONICSSKU: PL3-EPL-TFM-150LED-RT-140DB-24V-12.3-100
filler

Precio:
Precio de venta$4,898.00

Descripción

Specifications / Additional Information
EPL-TFM-150LED-RT-140DB-24V-12.3-100 Explosion Proof LED Light Quick Summary
ETL Listing: United States Class, I Division 1, Groups C and D
Dimensions: Light Head - 16"W x 14"H x 5"D Class I, Division 2, Groups A, B, C, D
Weight: 30 lb Class II, Divisions 1-2, Groups E, F, G
Total Watts: 150 Watts T5 Temperature Rating
Voltage: 24 V AC/DC Class III
LED Lamp Lumens: 21,000 CSA Certified to C22.2 No.137-M81
LED Lamp Life Expectancy: 60,000 Hours cETL Certified to UL844 and C22.2 Standards
Mounting: Tubular Aluminum Base Stand LEL Approved
Wiring: 100` 12/3 SOOW Cord w/ Explosion Proof Cord Cap
Cord Cap Options: 5-15P, 5-20P or 6-20P
Operating Temp Range: T5 Rated -40°C to 65°C
Color Temp: 5600K, 5000K, 4500K, 4000K, 3500K, 3000K, 2700K, or 6500K
Beam Angle: 60°, 125°, or 140°
Lighting Configuration: Flood Pattern
LED Lamp Life Expectancy: 60,000 Hours
' Product Overview '

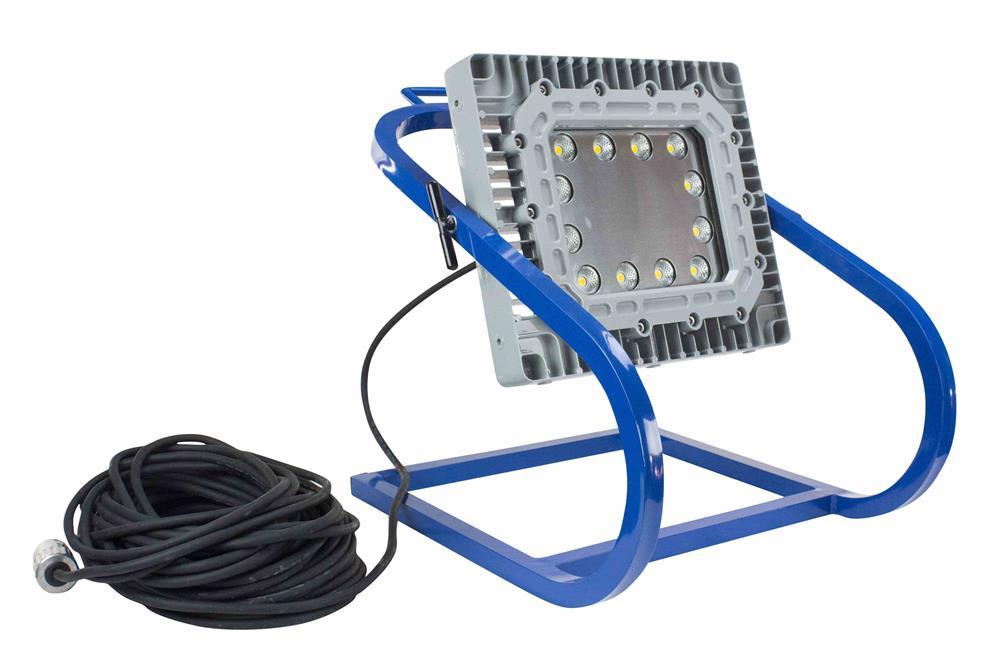

The EPL-TFM-150LED-RT-140DB-24V-12.3-100 from Larson Electronics Explosion Proof LED Light that is rated Class I Divisions 1-2 Groups C & D and Class II Divisions 1-2 and uses a 16 inch LED light head to produce 21,000 lumens of light while drawing only 150 watts. The EPL-TFM-150LED-RT-140DB-24V-12.3-100 explosion proof LED light provides 9,000 square feet of work area coverage with 21,000 lumens of light output. This portable LED light is mounted to a spun aluminum base and has an LED light head measuring 16 inches wide by 14 inches high. The LED light head on this unit produces a brilliant flood pattern of light that is ideal for illuminating enclosed areas and hazardous locations where flammable vapors, gases and dusts may be present. This explosion proof LED light fixture is comprised of a 16 inch wide square LED light head mounted atop a base stand fabricated from non sparking spun aluminum with a convenient carrying handle built into the top of the stand. The lamp can be easily adjusted up or down 90 degrees and locked into position by simply loosening the two hand screws located on either side of the light head and retightening them once the desired angle is found.
Click Photo to Enlarge
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. The explosion proof LED light head in this unit features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate. The LED lamp produces 21,000 lumens with a color temperature of 6000K and a color rendering index of 70, which produces colors and details much more accurately than high pressure sodium or mercury vapor lamps. The copper free aluminum alloy lamp body is powder coated for added durability and resistance to corrosions. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Included with this LED light is 100 feet of 12/3 SOOW cord terminated in a standard straight blade plug.
Click Photos to Enlarge
60° Beam Angle 125° Beam Angle 140° Beam Angle
Beam Angles: When used as a portable lighting solution, the varying beam angles are each individually ideal for several environments. The 60° beam provides the most intense beam of the three options. It is perfect for narrow, confined spaces and is ideally suited for tank cleaning purposes. It offers focused light to provide ample illumination to tight work spaces and other environments. The 125° beam offers a more diffused source of light that is also less intense in brightness. It is a great general area work light and performs well when used for outdoor illumination. The 140° beam offers a very wide lighting pattern and is ideal for situations where lighting distance is not a concern, but illumination of a wider area and even light distribution is. The 140° beam is great for situations that call for working in close proximity to lights such as in a paint booth.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This explosion proof LED light is equipped with 100 feet of 12/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur. This portable explosion proof flood light is configured to operate on 24 V AC/DC. The lamp is T5 temperature rated, Design Lights Consortium approved, and the LED light head retains 80% of its lumen output after 60,000 hours of use, far longer than incandescent or fluorescent lamps. The entire assembly is ETL listed Class I, Divisions 1-2, Class II, Divisions 1-2 for use in hazardous locations and approved for paint spray booths. The extreme durability, universal voltage capabilities, and LED longevity make this LED flood lighting system an ideal fit for tank cleaning, oil field maintenance and repairs, and offshore applications.
