Explosion Proof Two Color Traffic Light - C1D1&2 - C2D1&2 - Control Module - MODBUS

Explosion Proof Two Color Traffic Light - C1D1&2 - C2D1&2 - Control Module - MODBUS

$12,816.00 CAD
$12,816.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
EPL-TL-2X10W-C-MOD3 Explosion Proof LED Stack Light Ratings/Approvals
Lamp Type: LED Listed for United States & Canada
Dimensions: Class I, Divisions 1 & 2, Groups C and D
Wattage: 10 Watts per Lamp - 20 Watts Max Class II, Divisions 1 & 2, Groups E, F and G
Lamp Color: Red & Green, Red & White, Red & Blue, Red & Amber, Red & Purple, White & Blue, White & Green, White & Amber, White & Purple, Blue & Green, Blue & Amber, Blue & Purple, Amber & Green, Amber & Purple, Green & Purple Class III, Divisions 1 & 2
Voltage: 120-277 Volts AC, 11 or 25 Volts DC or AC IP67 (water proof)
Mounting: Predrilled Aluminum Flat Surface Mounting Bracket T3C Temperature Rating
Temp Rating: T3C New York City Department of Buildings approved
Lighting Configuration: Steady Burn or Strobe - Mix/Match available
Protocol: MODBUS via RS485 Connector
Lamp Life: 50,000+ Hours
Wiring: 10` SOOW Cable w/ Flying Leads  Toll Free: 1-800-369-6671
' Product Overview '

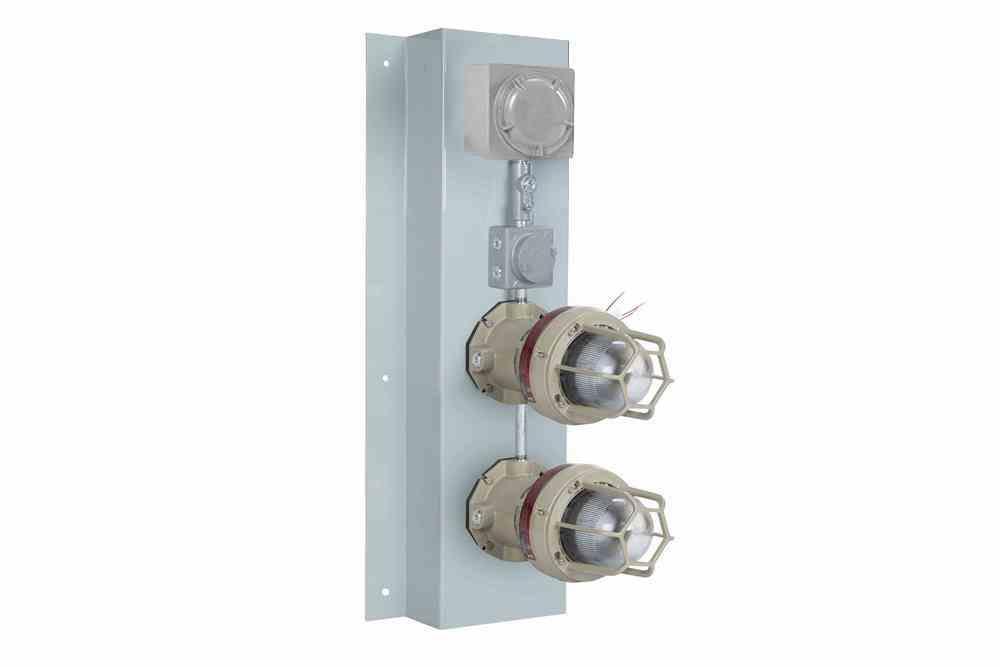

Made in the USA The EPL-TL-2X10W-C-MOD3 from Larson Electronics is a Class I, Divisions 1 & 2 and Class II Divisions 1 & 2 LED Signal Stack Light that is approved for use in wet locations and marine environments. Equipped with an analog input/output control module, this MODBUS-capable signal stack light is designed for routing traffic in industrial refueling stations and processing status indications in manufacturing facilities. The EPL-TL-2X10W-C-MOD3 explosion proof LED traffic light from Larson Electronics is an ideal indicator lighting solution for industrial refueling stations and manufacturing facilities. The light housings are constructed with a polyester powder coated copper free aluminum casting that can withstand 1490 pounds PSI hydrostatic pressure. The mounting plate is constructed of non-sparking aluminum and can be custom built to customer specifications. This explosion proof dual color indicator light has a 50,000 hour operational life and is available in 120-277 VAC and 11 or 24 VDC or VAC configurations for standard or low voltage operation. The EPL-TL-2X10W-C-MOD3 is equipped with a control module, which enables connection to remote alarms. During use, a customer-provided 24 V power supply and up to 4 sensor control wires are connected to the analog input/output unit, allowing the explosion proof signal stack lights to be activated via an alarm trigger. This unit is MODBUS capable via an RS485 connector, which can be used to setup a 2-step warning system. The master/slave communication protocol enables operators to activate/deactivate each light separately, using one trigger for one light and another trigger for the other light.
This explosion proof LED stack light carries a T3C temperature rating and has a -40°C to +85°C ambient operating temperature range. The EPL-TL-2X10W-C is Class II, Class II, Class II, Divisions 1 & 2 approved. Line-in supply power is provided by 10` of 16 AWG SOOW cable with flying leads. Individual leads per lamp allow independent operation, making this unit ideal for fuel depots and manufacturing facilities where status indicators are necessary. The individual leads can be connected to user provided terminal blocks or existing indicator systems. Unlike traditional indicator lamps that use a colored globe with low color temperature incandescent lamps, this explosion proof LED stack light incorporates a clear glass globe and colored LED lamps. By utilizing colored LEDs instead of tinted lenses or globes, the total visibility and light output is increased when compared to traditional colored lamps. This is particularly important for strobe configurations, increasing the peak candela of the signal during indications. The standard lamp configuration is dual colored with options of red, white, blue, amber, green, or purple LED bulbs in a steady burn or strobing configuration. Please contact us for special lamp configurations. These stack lights can also be configured with audible horns. Commonly used color codes for indicators: • Red: Stop / Failure conditions, such as an emergency stop or machine fault • Yellow: Caution / Warnings, such as over-temperature or over-pressure conditions • Green: Go / Normal machine or process operation • Blue: External help request / Operator/Supervisor required / Maintenance personnel assistance required •White: User-defined conditions specific to application and environment LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This explosion proof fixture is configured for dual colored output (one lamp each color) in the following color options: red, white, blue, amber, green, and purple. It offers exceptional lumen output, a 50,000+ hour life span, and the lamps are protected by Pyrex globes and cast aluminum globe guards. The LED lamps in this traffic light are 10 watts each and offer cool operation and clean bright output that surpasses that of 100 watt incandescent indicator lamps. Mounting is provided by a heavy gauge aluminum back plate fabricated from copper free aluminum with four predrilled holes designed to be bolted to walls, ceilings, and flat surfaces for permanent and secure attachment. Note on Lights: Please note, the color choices and light configuration of this unit can be customized to your requirements. We offer steady burn or strobing LED lamps, as well as high or low voltage configurations. Please contact us for special color configurations. Voltages: 120-277VAC 50/60Hz, 11 or 25V AC/DC Temp Code: Class 1 T3C Groups C,D : Class 2 - T3C Groups E,F,G
