Explosion Proof Traffic Light - Class 1 & Class 2 Signal Stack Light - Red, Yellow, Green - 1.5" GRC

LARSON ELECTRONICSSKU: PL3-EPL-TL-3X10W-C-1.5GRC
filler

Precio:
Precio de venta$5,934.00

Descripción

Specifications / Additional Information
EPL-TL-3X10W-C-1.5GRC Signal Stack Light U.L Ratings
Lamp Type: LED United States & Canada
Colors: Red, Yellow, and Green Class 1, Division 1 Groups C and D
Watts: 10 Watts Per Lamp - 30W Total Class 2, Division 1 Groups E and F
Voltage: 120-277 Volts AC, 12 or 24V AC or DC Class 3, Groups E, F and G
Lighting Configuration: Steady Burn IP67 (water proof)
Lumens: 3150 total (1050 each) T3C Temperature Rating
Mounting: 1.5" GRC New York City Department of Buildings approved
Temp Rating: T3C
Lamp Life: 50,000+ Hours
Wiring: 4 Conductor cable

' Product Overview '

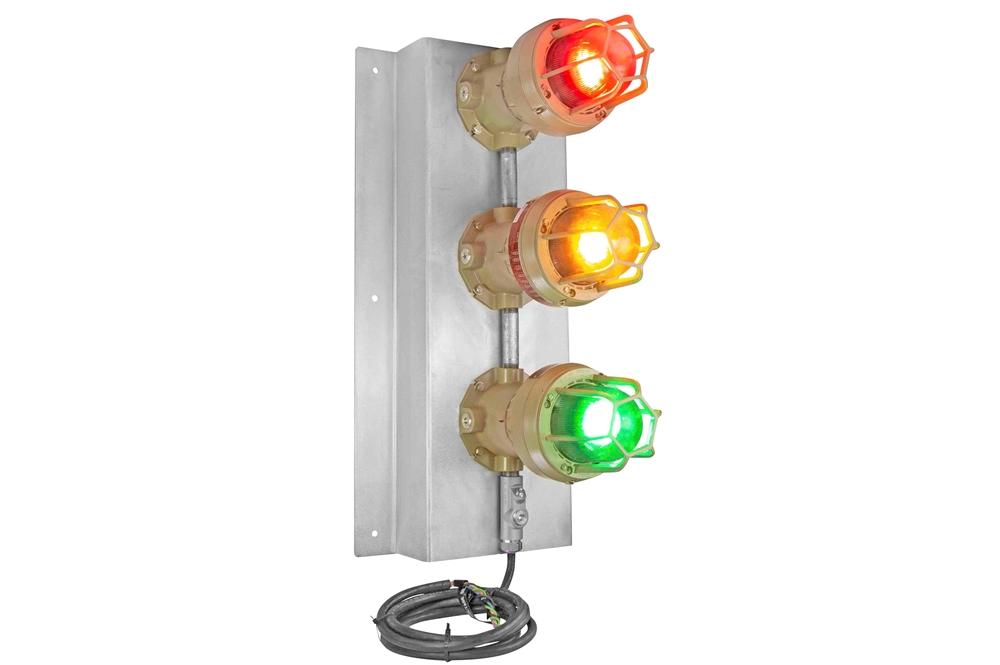

Made in the USA The EPL-TL-3X10W-C-1.5GRC Class 1, Division 1 and Class 2 Division 1 LED Traffic Light from Larson Electronics is also approved for use in wet locations and marine environments. This waterproof LED equipped light is designed for routing traffic in industrial refueling stations and process status indication in manufacturing facilities. The EPL-TL-3X10W-C-1.5GRC explosion proof LED stack light is an ideal indicator lighting solution for industrial refueling stations and manufacturing facilities. The light housings are constructed with a polyester powder coated, copper free aluminum casting, that can withstand 1490 pounds PSI hydrostatic pressure. The mounting plate is also made from aluminum and features a 1.5" GRC for overhead suspension mounting. This explosion proof red, yellow, and green indicator light has a 50,000 hour operational life and is available in 120-277 VAC and 12 or 24 VDC or VAC configurations for standard or low voltage operation.

Click Image to Enlarge
This explosion proof LED light carries a T3C temperature rating and has a -40C to 85C operating temp range. The EPL-TL-3X10W-C-1.5GRC is Class 1, Class 2, Class 3, Division 1 approved. Power is provided by individual conductors to allow independent operation of each lamp, making this unit ideal for fuel depots and manufacturing facilities where status indicators are necessary. This explosion proof fixture is configured for red, yellow, and green output (one lamp each color) offers exceptional lumen output, a 50,000+ hour life span, and the lamps are protected by Pyrex globes and cast aluminum globe guards for added durability. The LED lamps in this stack light are 10 watts each with a 1050 lumen output and offer cool operation and clean, bright output that surpasses that of 100 watt incandescent indicator lamps. Mounting is provided by a heavy gauge aluminum base with a 1.5" GRC hub on the back side of the unit for overhead suspension mounting. Note on Lights: Please note, the color choices and light configuration of this unit can be customized to your requirements. We offer steady burn or strobing LED lamps, as well as high or low voltage configurations. Please contact us for special color configurations. Voltages: 120-277VAC 50/60Hz or 12 or 24VDC Temp Code: Class 1 T3C, Class 2 - T3
