Explosion Proof Traffic Light w/ Remote Control - Class I, II, III - Red, Amber, Green - Stop/Go

Explosion Proof Traffic Light w/ Remote Control - Class I, II, III - Red, Amber, Green - Stop/Go

Precio habitual $13,326.00 CAD
Precio habitual Precio de oferta $13,326.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
EPL-TL-3X10W-C-EXWR Explosion Proof LED Stack Light Ratings/Approvals
Listing: United States & Canada Class I, Division 1&2 Groups C, D
Lamp Technology: LED Class II, Division 1&2 Groups E, F, G
Dimensions: - Class III
Lamp Quantity: 3 IP67 (Water proof)
Weight: - T3C Temperature Rating
Voltage: 120-277V AC, 11-24V AC or DC New York City Department of Buildings approved
Frequency: -
Total Watts: 30W
Single Lamp Watts: 10W
Minimum Lumens: -
Maximum Lumens: -
Luminous Efficacy: -
Lamp Life: 50,000+ Hours
Colors: Red, Amber, Green (other color configurations available upon request)
Color Rendering Index: -
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle: Full, 360°
Lighting Pattern: Steady Burn or Strobe
Light Color Control: Wireless Remote
Wireless Remote Distance: 200 Feet
Ambient Operating Temp Range: -
Temp Rating: T3C
Housing Material: Aluminum Base
Finish: -
Lens Material: -
Mount: Predrilled Aluminum Flat Surface Mounting Bracket
Wiring: 10` 16 AWG Cable w/ Flying Leads
' Product Overview '

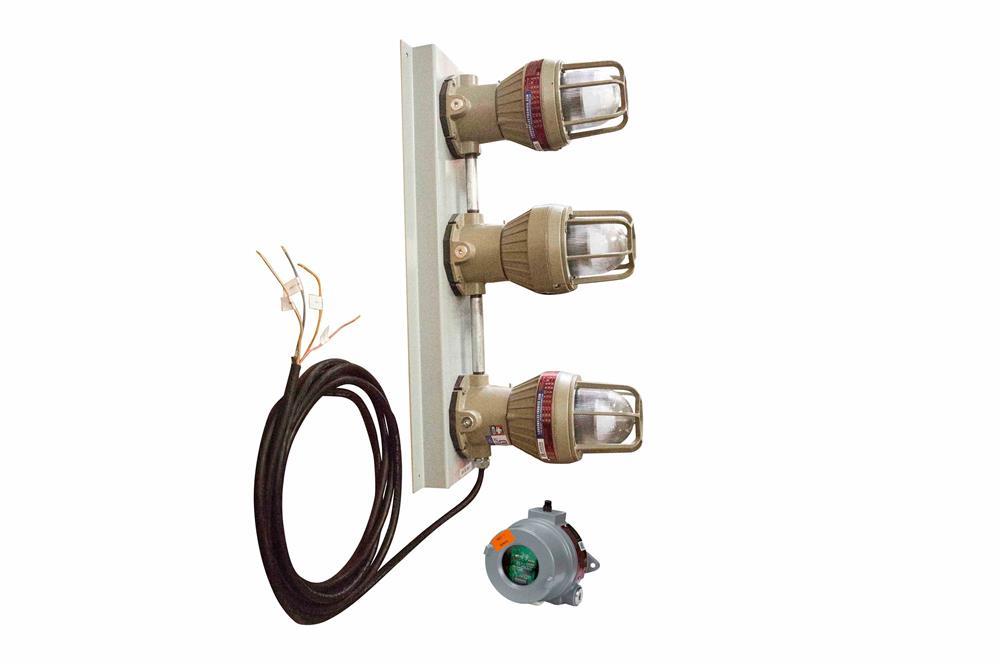

The EPL-TL-3X10W-C-EXWR Explosion Proof Traffic Light w/ Remote Control from Larson Electronics is designed for combustible facilities and is approved for use in wet locations and marine environments. Equipped with a wireless remote, this explosion proof LED stack light is designed for routing traffic and signaling, and visual indications in industrial refueling stations and process status indication in manufacturing facilities. The EPL-TL-3X10W-C-EXWR is an ideal indicator lighting solution for industrial refueling stations and manufacturing facilities. This explosion proof fixture is configured for red, amber and green output (one lamp each color). The lamps are protected by Pyrex globes and cast aluminum globe guards. The LED lights in this traffic light are 10 watts each and offer cool operation and clean bright output that surpasses that of 100 watt incandescent indicator lamps. The light housings are constructed with a polyester powder coated copper free aluminum casting that can withstand 1490 pounds PSI hydrostatic pressure. The mounting plate is constructed of non-sparking aluminum and can be custom built to customer specifications. This explosion proof red and green indicator light has a 50,000+ hour operational life and is available in 120-277V AC and 11 or 24V DC or V AC configurations for standard or low voltage operation.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
This explosion proof LED stack light carries a T3C temperature rating and has a -40°C to +85°C ambient operating temperature range. Individual leads per lamp allow independent operation, making this unit ideal for fuel depots and manufacturing facilities where status indicators are necessary. The individual leads can be connected to user provided terminal blocks or existing indicator systems. Unlike traditional indicator lamps that use a colored globe with low color temperature incandescent lamps, this explosion proof LED stack light incorporates a clear glass globe and colored LED lamps. By utilizing colored LEDs instead of tinted lenses or globes, the total visibility and light output is increased when compared to traditional colored lamps. This is particularly important for strobe configurations, increasing the peak candela of the signal during indications. The standard lamp configuration is red, amber, and green LED bulbs in a steady burn or strobing configuration. We offer a large assortment of lamp color options including red, green, blue, amber, purple, and white LED lamps. Please contact us for special lamp configurations. These stack lights can also be configured with audible horns. Commonly used color codes for indicators:
  • Red: Stop / Failure conditions, such as an emergency stop or machine fault
  • Yellow: Caution / Warnings, such as over-temperature or over-pressure conditions
  • Green: Go / Normal machine or process operation
  • Blue: External help request / Operator/Supervisor required / Maintenance personnel assistance required
  • White: User-defined conditions specific to application and environment Wireless Remote: The EPL-TL-3X10W-C-EXWR comes with an explosion proof wireless remote with a range of 200 feet. This wireless component is of a single button design, which can be used to change light colors on the signal-stack system. Pressing the button on the remote cycles through the available colors. Wiring: Line-in supply power is provided by 10` of 16 AWG SOOW cable with flying leads. Mounting: Mounting is provided by a heavy gauge aluminum back plate fabricated from copper free aluminum with four predrilled holes designed to be bolted to walls, ceilings, and flat surfaces for permanent and secure attachment. Note on Lights: Please note, the color choices and light configuration of this unit can be customized to your requirements. We offer steady burn or strobing LED lamps, as well as high or low voltage configurations. Please contact us for special color configurations.
  •
