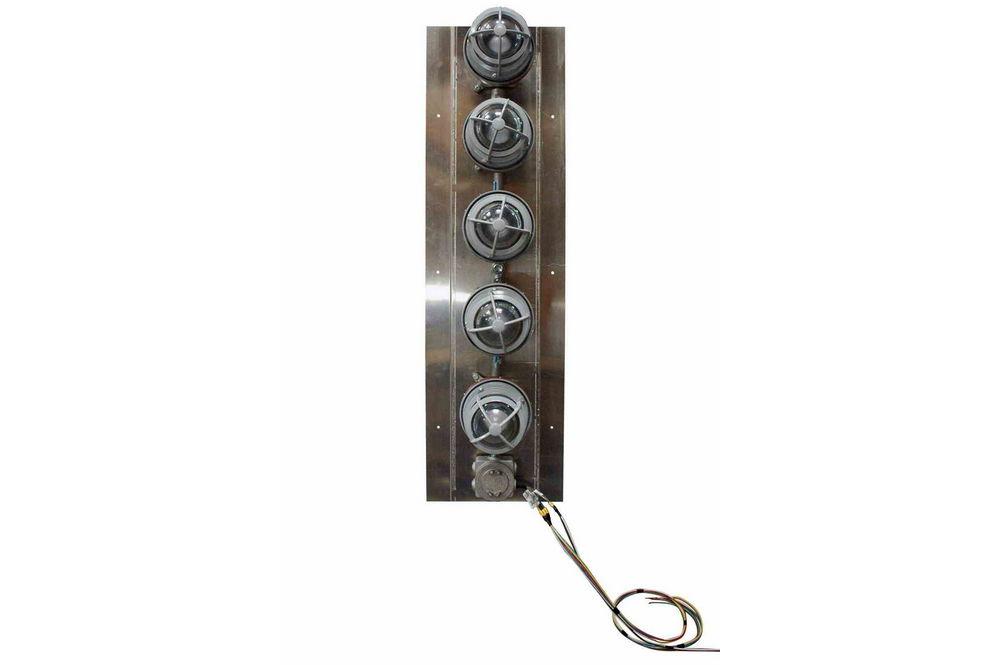

Explosion Proof Stack Light With 5 Color - Class 1 Division 1 Class 2 Division 1 - Steady or Strobe
Explosion Proof Stack Light With 5 Color - Class 1 Division 1 Class 2 Division 1 - Steady or Strobe
| EPL-TL-5X100W-C Signal Stack Light w/ Alarm | Ratings/Approval |
| Lamp Type: LED | United States & Canada |
| Colors: Red, Green, Amber, Blue, and White | Class 1, Division 1 Groups C and D |
| Watts: 10 Watts Per Lamp - 50W Total | Class 2, Division 1 Groups E and F |
| Voltage: 120-277V AC, 11 or 25V AC/DC | Class 3, Groups E, F and G |
| Lighting Configuration: Steady Burn or Strobe | IP67 (water proof) |
| Mounting: Ceiling, Wall, Flat Surface | T3C Temperature Rating |
| Temp Rating: T3 | Nema 4X rated |
| Wiring:Â 3/4" Hub - Flying Leads | New York City Department of Buildings approved |
| Lamp Life: 50,000+ Hours | |
| Mounting: 48" Predrilled Aluminum Base | |
| Â | Â |
| Made in the USA The EPL-TL-5X100W-C Class 1 Division 1 and Class 2 Division 1 LED Stack Light from Larson Electronics is approved for use in hazardous environments where explosive and flammable gases, vapors, and dusts exist or stand a potential to exist, as well as wet locations and marine environments. This explosion proof signal stack light light is designed for routing traffic in industrial refueling stations and processing status indications in manufacturing facilities. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The EPL-TL-5X100W-C explosion proof signal stack LED light is a signal/traffic light that offers 50 Watts of LED light in red, green, amber, blue, and white. This light unit is rated for Class 1 Division 1 and Class 2 Division 1 work environments, T3 temperature rated, weatherproof/dust-proof, and NEMA 4X and marine rated for wet environments. These indicator lights have 50,000 hours of operational life and the unit works on 120/240 volts AC or 24 volts DC configurations for standard or low voltage operation. This explosion proof fixture is configured for red, green, amber, blue, and white output (one lamp each color) and offers exceptional 1050 lumen output each. A NEMA 4X rated explosion proof junction box protects the internal wiring and can be tapped in order to connect this stack light to power sources. This explosion proof signal light is durable, can operate in any weather condition, and is rated for Class 1 Divisions 1 & 2 and Class 2 Divisions 1 & 2 areas where flammable gas and dust are present or have potential to exist. | |||||||
|
|||||||
| The LED lamps in this hazardous location stack light 10 Watt colored LED lamps, with a lifespan of 50,000 hours, are protected by durable Pyrex globes and cast aluminum globe guards for added durability, and offer cool operation and clean, bright output surpassing that of 100 Watt incandescent indicator lamps. The LED lamps are colored LEDs instead of colored globes, providing more light output. We offer strobe or steady burn lamps for this fixture. The light housing is constructed of a polyester powder coated, copper free aluminum casting that can withstand 1490 pounds PSI hydrostatic pressure. The housing on this explosion proof stack light is constructed of heavy duty aluminum. The entire unit is finished in a durable gray powder coat for resistance to corrosion. The lamps are positioned 9" from center to center of the lamp. Wiring is through a 3/4" NPT conduit access hub. The unit can be ordered in 120V or 240V AC configuration for use with standard line voltages, or 24V DC for low voltage use. Mounting is provided by a 48" heavy gauge aluminum base plate with predrilled holes designed to be bolted to walls and flat surfaces for permanent and secure attachment. Power is provided by individual conductors to allow independent operation of each lamp. Operators tap the C1D1 junction box in order to connect to a power source. This 50 Watt five lamp explosion proof signal stack LED light with alarm system is an ideal fixture indicator for manufacturing facilities, routing shipping lanes, and any hazardous work area where status indicators and audible alarms are necessary. Note on Lights: Please note, the color choices and light configuration of this unit can be customized to your requirements. We offer steady burn or strobing LED lamps, as well as high or low voltage configurations. Please contact us for special color configurations. | |||||||
| Â |
