Specifications / Additional Information
EPL-TP.S-50LED-RT-110C - Explosion Proof LED Tripod Light | Ratings/Approvals |
Listing: NRTL Listed for United States, Canada | Class I, Divisions 1 & 2, Groups C and D |
Lamp Technology: LED | Class II, Divisions 1 & 2, Groups E, F and G |
Tripod Dimensions: 3.5' to 10' | Class III, Divisions 1 & 2 |
Weight: 25 lbs | T5 Temperature Rating |
Voltage: 100-277V AC | Paint Spray Booth Approved |
Total Watts: 50W | IEC 60529 Tested |
Total Lumens: 7,000 lms | IP67 Rated Waterproof |
Luminous Efficacy: 140 Lm/w | LEL Approved |
Lamp Life: 60,000+ Hours | Single LED Driver |
Color Temp: 5600K, 5000K, 4500K, 4000K, 3500K, or 3000K | 80% Lumen Retention after 60,000 Hours |
Color Rendering Index: >75 CRI | Factory Sealed Light Fixture |
Beam Angle: 60°, 125°, 140° | Surge Protection |
Lighting Configuration: Flood Pattern | Replacement for 250W Metal Halide Lamps |
Power Efficiency: >95% | Â |
Power Factor: 0.99 | Â |
Amps: 0.42A @ 120V, 0.21A @ 240V, 0.18A @ 277V | Â |
Ambient Operating Temp Range: -50° C to +65°C |  |
Operating Temp Rating: T5 | Â |
Temperature Rise: 11°C (10°F) Over Ambient |  |
Housing Material: Copper Free Cast Aluminum | Â |
Housing Finish: Epoxy Powder Coated - Grey | |
Lens Material: Hardened Borosilicate Glass | |
Gasket Material: Silicone | |
Mounting: Adjustable Trunnion and Aluminum Tripod | |
Wiring: 110' 16/3 SOOW Cord w/ Cord Cap | |
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail |

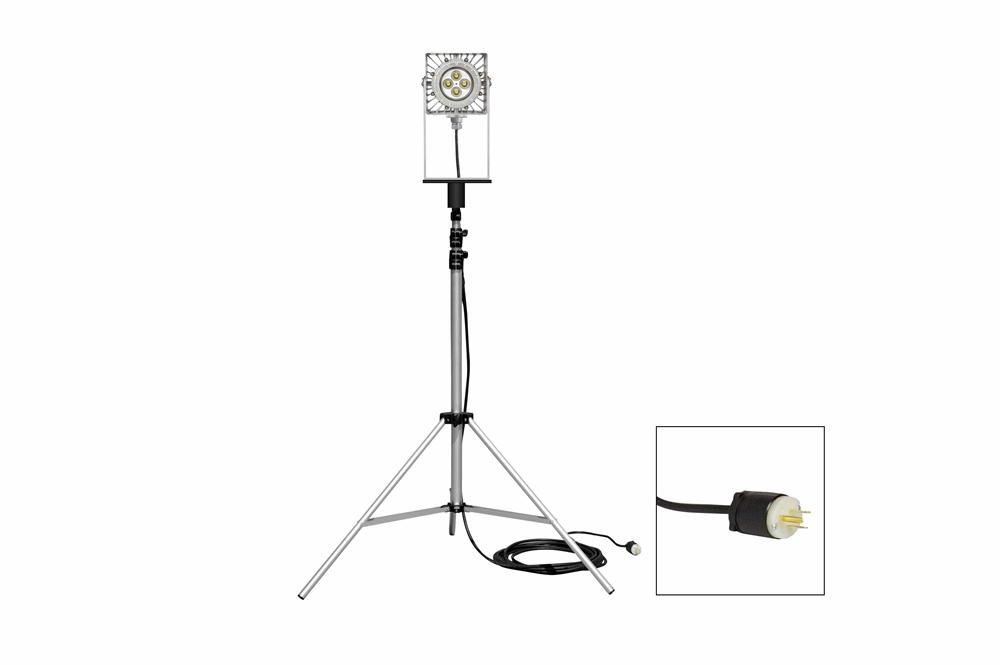

The Larson Electronics EPL-TP.S-50LED-RT-110C Explosion Proof LED Tripod Light provides operators with a powerful alternative to traditional hazardous location luminaries. Capable of replacing 250-watt metal halide lamps, this 50-watt LED unit emits 7,000 lumens, carries an IP67 waterproof rating and features a long lifespan of 60,000+ hours. The explosion proof LED light is secured on an adjustable trunnion bracket, equipped with a 110' cord, and mounted atop an aluminum tripod that extends from 3.5' to 10'. This portable explosion proof tripod can be shipped UPS/FedEx Next Day Air.
The EPL-TP.S-50LED-RT-110C is a Class I, Division 1 & 2 and Class II, Division 1 & 2 explosion proof light that is designed for energy efficient and superior illumination in combustible environments. Mounted on a sturdy adjustable tripod, this 50-watt LED light offers 7,000 lumens of high quality light with a standard color temperature of 5000K. We also offer a 3000K warm white and 4500K natural white color temperature options (longer lead times may apply for non-standard temperatures). Serving as a suitable replacement for 250-watt metal halide lamps, a color rendering index of 75 ensures colors and details are produced more accurately than high pressure sodium or mercury vapor luminaries.
The compact design of the EPL-TP.S-50LED-RT-110C allows this tower mounted explosion proof LED light to be shipped via standard carriers (UPS, FedEx, DHL) and can be shipped via air shipments without suffering damage. This translates to a readily available product that can be quickly shipped and delivered for last minute projects and requirements. With a complete assembly weight of 25 (including light head, cord, and tower mount combined), this is a truly portable explosion proof light without sacrificing the performance output typically seen with other small form factor explosion proof products. No more having to hassle with pallet shipments for bulky and heavy explosion proof luminaries.
This powerful lighting solution is IP67 rated, dust-proof and protected against high pressure jets and temporary submersion. The copper-free aluminum alloy housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronic components. An epoxy powder coated finish facilitates durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture achieve an excellent 60,000-hour rated lifespan with 80% lumen retention. The explosion proof LED light also offers operators convenience in the form of field serviceability.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
|
