Explosion Proof Tumbler Switch - 20 Amp Rated - Class 1 Div 1 and Class 2 Div 1

LARSON ELECTRONICSSKU: PL3-EPL-TSW-20A
filler

Precio:
Precio de venta$824.00

Descripción

Specifications / Additional Information
EPL-TSW-20A Explosion Proof Switch Ratings/Approvals
Configuration: On/Off Switch Class 1, Division 1 & 2, Groups C & D
Dimensions: Class 2, Divisions 1 & 2, Groups E, F, G
Weight: 8 lbs Class 3, Divisions 1 & 2
Switch Style: 2-pole NEMA 7 (Groups C & D)
Voltage: 120-277V AC NEMA 9 (Groups E, F, G)
Horsepower: 1HP @ 120VAC / 2HP @ 250VAC Certified to USA / Canadian Standards
Amp Rating: 20A
Materials: Non-sparking aluminum body
' Product Overview '

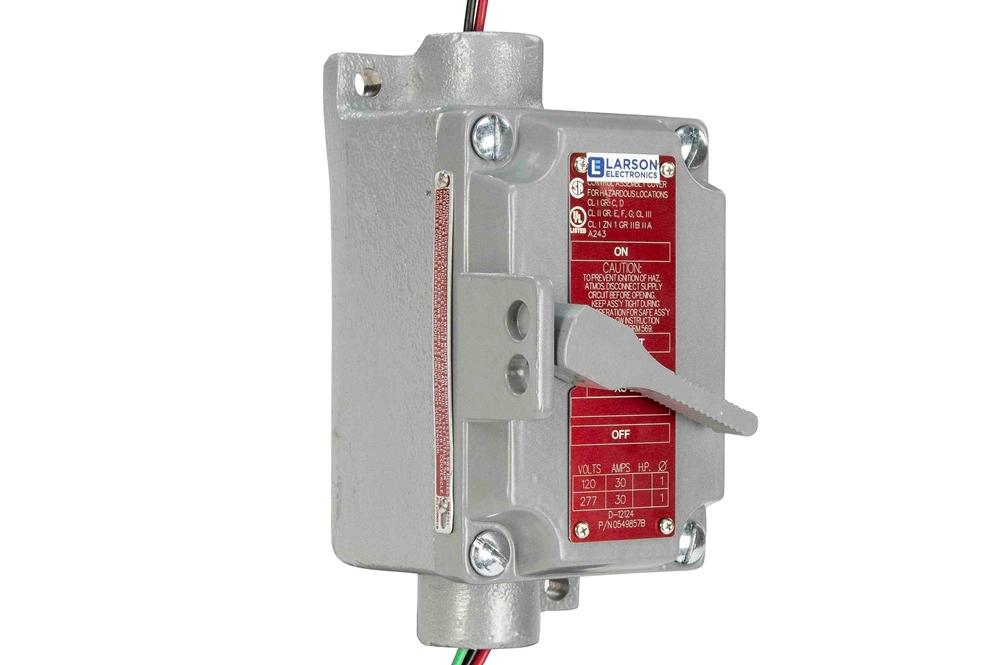

Explosion Proof On/Off Tumbler Switch. Feed-Through Tumbler switch, front-operated; Dust-ignition proof fixture. 20 Amp Rated. This particular unit is rated at 20 amps and accepts currents ranging from 120-277VAC. The wiring hub is offered in 1/2" or 3/4" and the unit is a feed through model. The unit has a rocker switch which allows locking of the ON/OFF position. The unit is constructed of non-sparking aluminum body and is triple coated. The lever is connected to a threaded stainless steel shaft that passes through the faceplate. This front level rotary style switch allows for padlocking in the on or off position. The entire unit is completely corrosion resistant. The unit box, switch, and face plate are all included with the product.   These switches are ideal for installation in; chemical plants, petrochemical plants, refineries, and other process industries.
