Hazardous Location Terminal Strip Junction Box - C1D2 - Internal Backplate - Type 4X - (3) Total Hubs - (6) Contact Blocks
Hazardous Location Terminal Strip Junction Box - C1D2 - Internal Backplate - Type 4X - (3) Total Hubs - (6) Contact Blocks

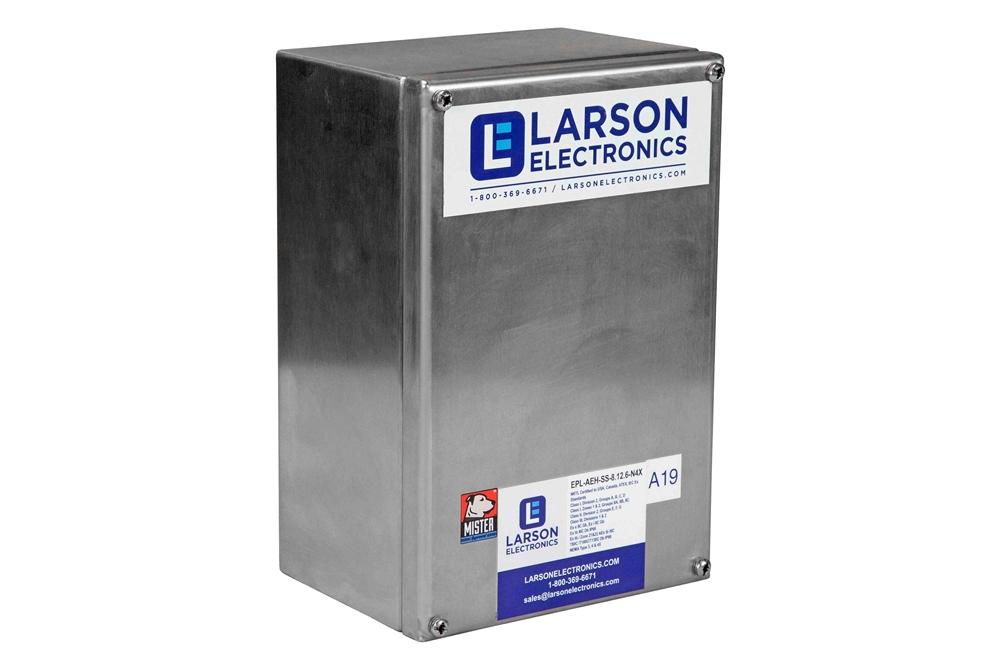

| EPL-TWH-SS-8.12.6-N4X-6XTB-MOD3 Hazardous Location Terminal Strip Junction Box | Ratings |
| Dimensions: 11.81" x 7.87" x 5.91" | Class I, Division 2, Groups A,B,C,D |
| Weight: - | Class I, Zones 1 & 2, Groups IIA,IIB,IIC |
| Earth Connection: 1/4" External | Class II, Division 2, Groups E,F,G |
| Body and Cover Material: 316 Stainless Steel (Brush Finished) | Class III, Divisions 1 & 2 |
| Cover Type: Screw | ATEX/IECEx Rated |
| Hubs: (3) Total - (1) 3/4" NPT Hub North, (1) 3/4" NPT Hub West, (1) 3/4" NPT Hub South Side | Ex e IIC Gb, Ex i IIC Gb |
| Mounting: Wall/Surface Mount via Flanged Backplate | Ex tb IIIC Db IP66 |
| Terminal Blocks: (6) 30-Amp 600 V Rated Terminal Blocks | Ex tb / Zone 21&22 AEx tb IIIC |
| Terminal Block Configuration/Type: Feed Through | T80C / T100C / T130C Db IP66 |
| Terminal Block Wiring: 10-20 AWG | NEMA Type 3, 4 & 4X |
| Â |
| The EPL-TWH-SS-8.12.6-N4X-6XTB-MOD3 from Larson Electronics is a Hazardous Location Terminal Strip Junction Box that provides operators with a rugged, stainless steel enclosure that is designed to hold and protect equipment in flammable environments. This explosion proof enclosure is ideal for Class I, Division 2 sites and indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. The EPL-TWH-SS-8.12.6-N4X-6XTB-MOD3 features an internal backplate that is equipped with six, 30-amp contact blocks. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-TWH-SS-8.12.6-N4X-6XTB-MOD3 explosion proof enclosure is made of 316 stainless steel and features a Type 4X protection rating. Equipped with a screw cover, this Class I, Division 2 junction box measures 11.81" x 7.87" x 5.91". A 1/4" external earth protection is available on the unit. This terminal strip junction box is designed for easy mounting on walls or surfaces. Hubs: The EPL-TWH-SS-8.12.6-N4X-6XTB-MOD3 is equipped with three hubs. (1) 3/4" NPT hub on the north side of the enclosure, (1) 3/4" NPT hub on the west side of the enclosure, and (1) 3/4" NPT hub on the south side of the enclosure. All holes include galvanized hubs and are centered on the enclosure. Applications: Offshore rigs, sewage and wastewater treatment plants, coal plants, gas facilities and any other hazardous location where an explosion proof enclosure is needed. |
