Explosion Proof Transformer with 150 Watt LED Light - 500 VA - 4 Receptacle - 120 VAC Secondary
Explosion Proof Transformer with 150 Watt LED Light - 500 VA - 4 Receptacle - 120 VAC Secondary
| EPL-TX-500-4-1MLED Explosion Proof Power Transformer | Features/Ratings |
| Line In: 220V 50/60Hz | Class 1 Division 1 |
| Line Out: 4- 2023, Class 1, Div. 1 20A Receptacles - 120V AC, 12V AC, 24V AC, 12V DC, 24V DC outputs | 2023, Class 1, Division. 1 Receptacles |
| Wiring: 25` SOOW with 20 Amp, 220v Plug | Class 2 Division 1 |
| Dimensions: 30â€Â-H x 14â€Â-D x 24â€Â- W | 220VAC/ 20Amp Plug |
| Weight: 135lbs | 4 Explosion Proof Receptacles |
| Mounting: Wheeled Aluminum Dolly Cart | 21,000 Lumen, 150 Watt LED Light |
| Ratings: Class 1 Division 1 Class 2 Division 1 Explosion Proof | cETL Certified to UL844 and C22.2 Standards |
| Transformer: 500VA | |
| *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |

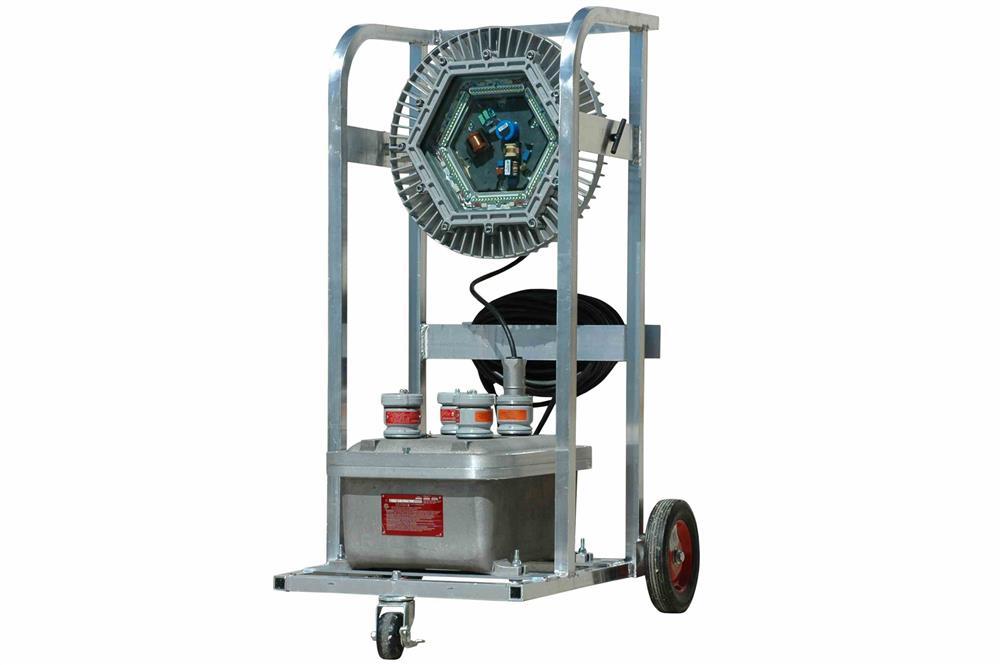

| Made in the USA The Larson Electronics EPL-TX-500-4-1MLED explosion proof 500VA power transformer converts 220V 50/60Hz current to 120 VAC 50/60hz secondary output with optional 12 VAC, 12 VDC and 24 VDC configurations also available. This unit is cart mounted for easy mobility and is equipped with a 150 watt explosion proof LED light head for maximum convenience and versatility. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* The EPL-TX-500-4-1MLED explosion proof power transformer from Larson Electronics is built to provide operators in hazardous locations with an effective and mobile method of stepping down single phase high primary voltages to safe and reliable 120 VAC 50/60hz, 12 VAC, or 12/24VDC current depending upon configuration. This unit doubles as a power distribution station as well, with four included explosion proof receptacles rated at 20 amps each. This compact power distribution transformer is designed for portability and convenience as well as durability and is mounted to a non sparking aluminum dolly cart with wheels for easy mobility. This portable step down transformer features a 150 watt LED light head that provides 21,000 lumens of bright white light, four 2023 Class 1 Division 1 receptacles with twist lock operation to provide positive connections, a 500VA transformer, and a wheeled aluminum cart for easy movement of the unit about the workplace. Included with this combination explosion proof transformer/light/cart is 25 feet of SOOW cord equipped with a 20amp, 220v Plug. This unit is explosion proof approved Class 1 Div 1 and Class 2 Div 1. The four outlets and standard output voltages of this step down transformer make it a popular choice for operating our 100 watt explosion proof drop lights and work lights. The included 150 watt LED light head provides a highly convenient and powerful light source that allows operators to immediately provide large scale illumination once the unit is connected to a power source. |
| The EPL-TX-500-4-1MLED portable power transformer and light system converts primary high voltage electrical current into more common secondary 120 VAC 50/60hz, 12 VAC, or 12/24VDC current and distributes it via 4 explosion proof outlets. The output side is equipped with four 2023, Class 1, Division 1 receptacles designed to accept twist lock plugs like our EPP-15A and EPP-20A explosion proof plugs. This power transformer is rated at 500VA, and comes standard with a 25 foot primary power cord equipped with a 20amp, 220v explosion proof male plug. The included Class 1 Division 1 & 2, Class 2 Division 1 & 2 rated explosion proof LED light head provides 21,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy lamp body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this LED fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. The light head is adjustable and can be moved vertically by loosening the two T-handle side screws and then retightening once positioned. The cart on this unit is constructed of non-sparking aluminum and is designed for rugged use. Two solid rubber wheels and one caster wheel allow operators to easily roll this unit from one area to another in the workplace for the best light coverage and convenience. This cart`s simple design includes ergonomically designed rails which act as handles and an integral cord holder for neat storage of the included cord. Choose your primary input and secondary output voltages below when ordering. Larson Electronics.com can build transformers to your specifications. If this model does not meet your needs, please contact us at 1-800-369-6671 or . |
|  |
