50W Hazardous Location Integrated Wall Pack LED Fixture - C2D1 - 120-277V - 7,600 lms, Gasketed Bubble Lens, Trunnion Mount - Food Safe

LARSON ELECTRONICSSKU: PL3-EPLC2-PRM-LED-R1-NSF-1227-WP-TRN
filler

Precio:
Precio de venta$708.00

Descripción

Specifications / Additional Information
EPLC2-PRM-LED-R1-NSF-1227-WP-TRN - Hazardous Location LED Fixture Ratings/Approvals
Listing: NRTL Listed to United States, Canada Class I, Division 2 Groups A, B, C and D
Lamp Technology: LED Class II, Division 1 Groups E, F and G
Dimensions: 7.47" x 6.14" x 6.72" Class II, Division 2 Groups F and G
Weight: - Class III, Divisions 1 & 2
Voltage: 120-277V AC, 50/60Hz NRTL Certified to UL 844 Ed. 13
Total Watts: 50W NRTL Certified to UL 1598
Total Lumens: 7,600 lms NRTL Certified to C22.2 No. 137 Rev 2009
Luminous Efficacy: 152 Lm/w NRTL Certified to C22.2 No. 250.0
Lamp Life: 75,000+ Hours NRTL Certified to C22.2 No. 30-M-1986 Rev 2012
LED Color Temperature: 5000K, 4500K, 4000K, 3500K or 3000K IEC 60529 Tested
Color Rendering Index: - IP66 Rated Waterproof
Lamp Type: Integrated LED Replacement for Fluorescent Wall Pack Fixtures
Lamp Base: - Field Serviceable
Replacement Lamp: - Food Safe
Beam Angle: 24°, 60° or 90° NSF Compliant
Lighting Configuration: Spot or Flood
Power Efficiency: >95%
Power Factor: 0.992
Amps: 0.416A @ 120V, 0.240A @ 208V, 0.227A @ 220V, 0.208A @ 240V, 0.180A @ 277V
Ambient Operating Temp Range: -50°C to +65°C
Operating Temp Rating: T5
Housing Material: Copper Free Cast Aluminum (non sparking)
Housing Finish: Epoxy Powder Coated - Gray
Lens Material: Molded Polycarbonate Protruding Lens - Gasketed Bubble Lens
Gasket Material: Silicone
Mounting: Trunnion Mount - Other Mounts Available
Wiring Hub: (1) 3/4" NPT
' Product Overview '

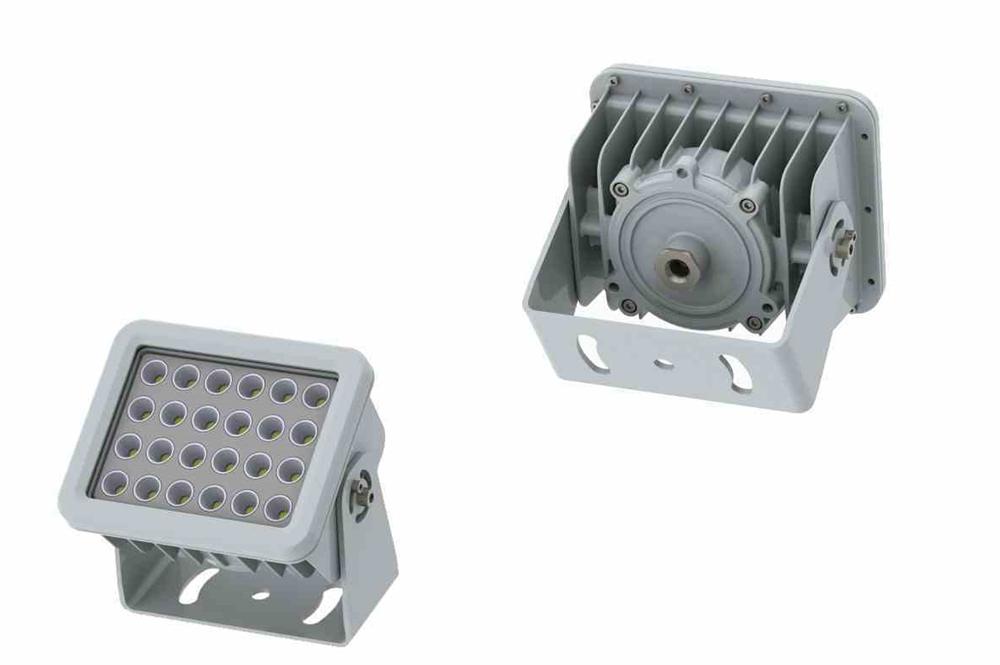

The Larson Electronics EPLC2-PRM-LED-R1-NSF-1227-WP-TRN Hazardous Location Integrated Wall Pack LED Fixture offers powerful lighting with heavy-duty and energy efficient benefits in Class II, Division 1 rated combustible sites that contain combustible dust, fiber or flyings. Designed for food safe applications, this 50-watt LED unit delivers 7,600 lumens and is field serviceable. The NSF compliant fixture has a gasketed molded polycarbonate protruding lens for added protection and light diffusion. This IP66 rated fixture is compatible with trunnion mount installations and features a 3/4" NPT wiring hub. The LED unit is recommended for illuminating busy, outdoor ground areas for vehicles and pedestrians. The EPLC2-PRM-LED-R1-NSF-1227-WP-TRN is a Class I, Division 2 and Class II, Division 1 & 2 wall pack fixture that is designed for reliable illumination in food processing or handling facilities with combustible dust (flammable "finely divided" solid materials of 420 microns or less, which can pass through a No. 40 sieve). This 50-watt fixture offers 7,600 lumens of high quality light along the outdoor, exterior areas of buildings. The LED fixture is offered in a 24-degree spot, 60-degree flood or 90-degree wide flood beam configuration. Color temperature options for the LED light includes: 5000K, 4500K, 4000K, 3500K or 3000K. This unit is a suitable replacement for fluorescent wall pack fixtures. Equipped with field serviceable features, the LED assembly is sealed from the driver box, allowing the driver to be changed without impacting the LEDs. This NSF compliant light is protected by a copper-free cast aluminum housing, with an epoxy powder coated gray finish for durability in rugged environments. The non-sparking housing is specially designed to dissipate heat, which increases the efficiency and lifespan of the LEDs and electronic components. A protruding molded polycarbonate lens bolted directly on the front of the fixture provides protection from accidental damage or rough contact. For food safe applications, no exposed glass on light fixtures is allowed to prevent potential contamination of food products in the event the fixture breaks. The gasketed bubble lens also helps diffuse the light when the fixture is mounted at low positions or heights. This feature eliminates LED hot spots when looking at the light. Light diffusion reduces issues with blinding, increases operational safety and is a requirement in food safe applications. The T5-rated LED fixture carries an IP66 waterproof rating. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Field Serviceability: This LED light fixture is field serviceable. All major internal components can be purchased from Larson Electronics and installed by a licensed electrician with basic tools. With most explosion proof fixtures, the fixture must be returned to the manufacturer for repair work, which presents downtime and long turn around times for repair work. Larson Electronics addresses this issue with products that cater to field serviceability, allowing operators to perform service work without having to return the fixture to the manufacturer in the event of damage or failure. Voltage: The hazardous location light is universal voltage capable and can be operated with 120-277V AC, 50/60Hz. Wiring: A 3/4" NPT hub at the back of the unit is available for completing wiring connections. Mount: This LED light fixture comes standard with trunnion mounting features. Several mounting options including ceiling, wall and pendant mounts for replacing existing light fixtures can be ordered separately. Suggested Applications: The EPLC2-PRM series of hazardous location light fixtures are approved for use within environments where flammable or combustible dusts, fibers, and flying exist or stand the potential to exist, and where flammable or combustible gases or vapors stand the potential to exist. This hazardous area light is ideal for a wide variety of applications. Applications include but not limited to chemical manufacturing, coke processing, cranes, food processing (with food grade gasketed polycarbonate lens), grain processing, laboratories, manufacturing, marine vessels, mining, paper processing, pharmaceuticals, power plants, sand blast cabinets, shipyards, storage facilities, textile, washdown areas, and woodworking.
