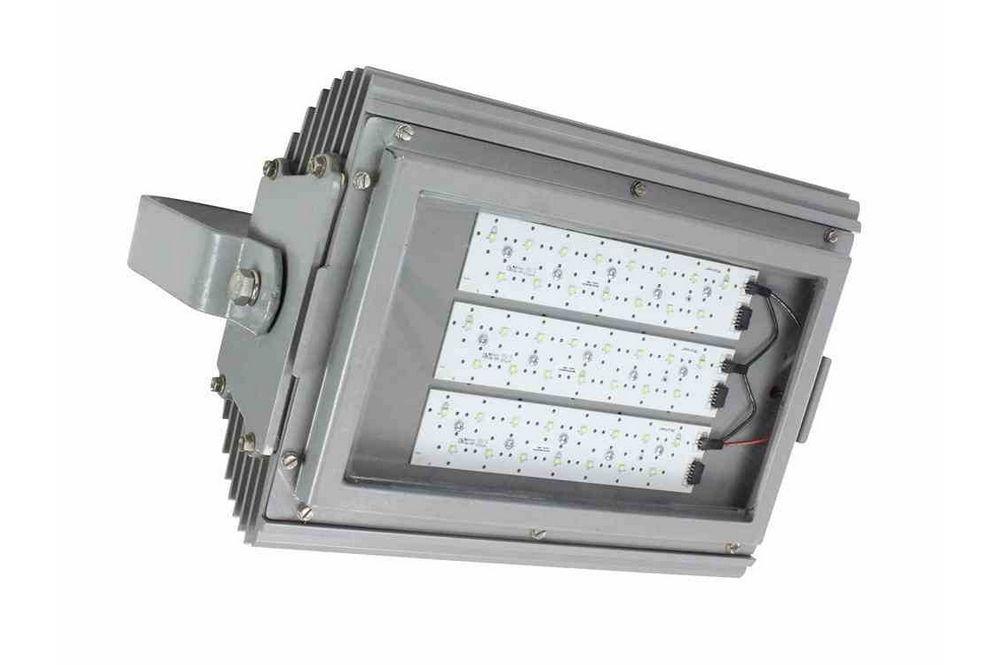

110 Watt Explosion Proof LED Flood Light - Surface Mount - 13,780 Lumens - C1D2 / C2D1

LARSON ELECTRONICSSKU: PL3-EPLC2-TRN-110W-LED
filler

Precio:
Precio de venta$3,442.00

Descripción

Specifications / Additional Information
Specifications / Additional Information
EPLC2-TRN-110W-LED Explosion Proof LED Flood Light Quick Summary
Lamp Type: LED Listed for United States and Canada
Dimensions: 19.9"H x 20.6"W x 6.4"D Class I Division 2 Groups C and D
Weight: 30 Lbs Class II Division 1 & 2 Groups E,F,G
Voltage: Multi - 120-277V AC, 50/60Hz Class III
Total Watts: 110W Certified to UL844 and C22.2 Standards
Total Lumens: 13,780 Certified to UL 1598
LED Lamp Life Expectancy: 100,000+ Hours T4 Temperature Rating
Color Temp: 5000K NEMA 3, 4X
Color Rendering Index: 70 CRI IP66 Rated Waterproof
Beam Angle: 120° Enclosed and Gasketed
Lighting Configuration: Flood Pattern 70% Lumen Retention after 100,000 Hours
Power Efficiency: >90% ATEX Certification
Power Factor: 0.95 Suitable for Wet Areas
Amperage: 0.40A @ 120V, 0.90 @ 277V
Ambient Operating Temp Range:-40° C to +55°C
Operating Temp Rating: T4
Lamp Housing Material: Copper Free Cast Aluminum
Lens Material: Impact Resistant Glass (Polycarbonate Available)
Gasket Material: Silicone
Mounting: Trunnion Style Fixed Mount
Finish: Baked Powder Epoxy/Polyester
Wiring Hub: 3/4" NPT

' Product Overview '
The Larson Electronics EPLC2-TRN-110W-LED Explosion Proof LED Flood Light provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures. This Class 1 Division 2, Class 2 Division 1 & 2 explosion proof LED flood light fixture provides 13,780 lumens of high quality light while drawing only 110 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 100,000 hour rated lifespan with 70% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.
This light is universal voltage and operates on and voltage within a range 120-277V AC, 50/60Hz without any need for a special ballast. The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 13,780 lumens with a color temperature of 5000K and a color rendering index of 70 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The EPLC2-TRN-110W-LED offers an adjustable mounting system that this fixture to be mounted to any flat surface including walls and ceilings. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MH. 5. Retains 70% lumen output after 100,000 operating hours. 6. Powder coated aluminum fixture body. 7. Pendant and Swivel Bracket mount included 8. Low profile - Light weight 9. 13,780 Lumen output from only 110 watts 1. 100,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off - No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
