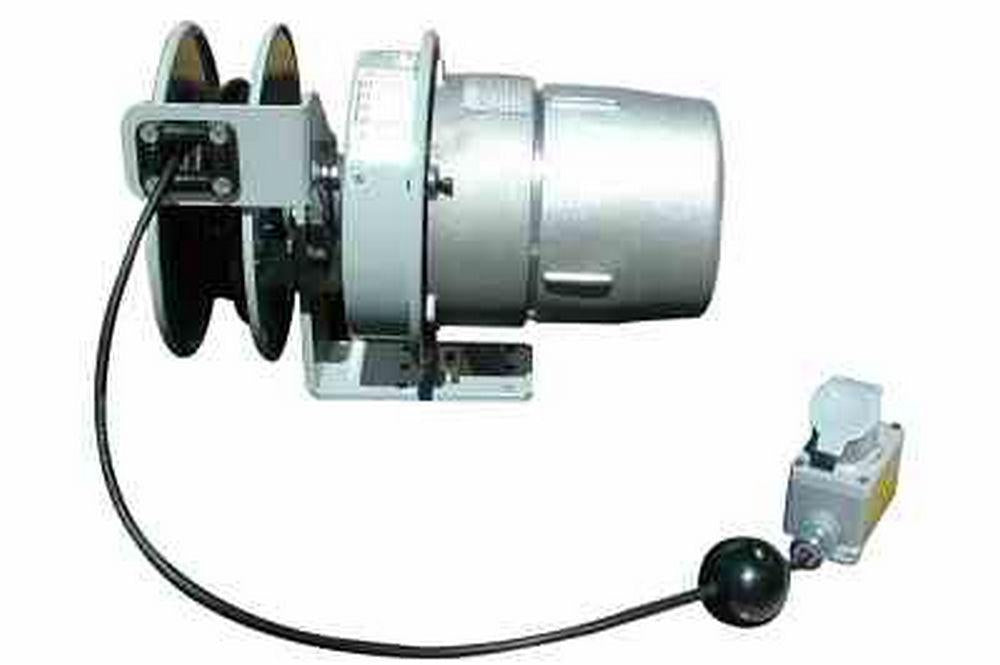

Explosion Proof Tool Tap Reel - 50' 12/3 Cable Reel w/ ATEX DXN Outlet - C1D1 Rated

LARSON ELECTRONICSSKU: PL3-EPLRT-50-12.3-DXN1-HR
filler

Precio:
Precio de venta$11,612.00

Descripción

Specifications / Additional Information
EPLRT-50-12.3-DXN1-HR Explosion Proof Cord Reel w/ Tool Tap Safety Rating
Standard Features: Class 1, Div. 1, Groups C & D, Zone 0, 1, & 2
12/3 SOOW cable Class II, Div. II, Groups E, F, & G
Spring activated ratchet Class I, Div 1 & 2 Group D; Class II, Group G
4-roller adjustable cable guide and ball Class I, Zone 1, AEx d IIB
Built to UL 508 table 36.1/NEC Standards NEMA 9 and NEMA 4 (IP56)
Indoor or Outdoor Use UL 508 table 36.1 / NEC Standards
Rugged fabricated steel and cast aluminum slip ring enclosure UL508 table 36.1 (3- 4 conductor with cable only)
Gray epoxy finish on all steel parts
6` feeder cord on fixed end
230V 20 Amp ATEX Rated DXN1 outlet



' Product Overview '
Made in the USA The EPLRT-50-12.3-DXN1-HR Explosion Proof Cord Reel w/ Tool Tap provides 20 amps of continual service and easy management of an included 50` of 12/3 SOOW cord and is equipped with an ATEX rated 230V DXN1 outlet, giving operators in hazardous locations the ability to easily extend the working reach of their tools and lighting equipment. This tool tap is built to UL 508 table 36.1 / NEC standards and constructed of aluminum and fabricated steel for light weight and durability. This cord reel with tool tap is ideal for petroleum facilities, waste water treatment plants, grain storage and handling silos, paint booths, underground mines, chemical plants, and much more. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** This explosion proof tool tap is rated for Class 1 Division 1 and Class 2 Division 2 environments and includes the reel, 50` of 12/3 SOOW cord, and an ATEXrated DXN1 receptacle. For proper protection and to maintain HAZLOC approval, a matching twist lock plug should be used with this unit’s power receptacle. This unit is of a modular design and is suitable for indoor or outdoor applications. The unit includes 50` of 12/3 SOOW Cord with a 14" flange diameter and is ready to install a portable explosion proof fixture to the end. These reels are built with modular components, coupled with a spark proof ratchet and hazardous location slip ring housing. The cord feeds onto the steel reel assembly through a 4 roller adjustable cable guide with a ball stop. This reel includes an integral spring actuated ratcheting mechanism for positive cord management housed within the explosion proof threaded slip ring enclosure. This cord reel is assembled to UL 508 table 36.1 / NEC Standards and conforms to NEMA 9 and NEMA 4 (IP56) standards as well.
This 20 amp rated tool tap is ideal for operators seeking a high quality, wet area rated power receptacle suitable for use in industrial and manufacturing applications. The unit is factory sealed and any arcing is safely contained within the interior of the receptacle. The receptacle is configured for use with 230V ATEX rated cord caps. The receptacle contacts are deep recessed to avoid accidental contact and will not be energized by non explosion proof plugs to preserve explosion proof protection in hazardous environments. Ordinary location plugs will NOT activate this explosion proof receptacle. This unit is designed to withstand wet and corrosive conditions such as those found in docks and shipyards and comes with a spring loaded receptacle door to prevent ingress of water and contaminants when the unit is not in use. An EYM seal off completes the Class 1 Division 1 rating on this explosion proof tool tap. This explosion proof tool tap is ideal for use with drop lights and tools in locations where connection to fixed receptacles is unavailable or impractical, and safely extends the operational range without creating the hazards associated with excessive cord lengths strewn about the workplace. Larson Electronics offers a wide variety of lighting solutions to accommodate this reel. For more information on these lights, please contact us at 1-800-369-6671.
Features
Built to UL 508 table 36.1 / NEC Standards Indoor or outdoor use 600 Volt 12/3 SOOW Cable Rugged fabricated steel and cast aluminum construction Threaded slip ring enclosure Gray epoxy finish on steel parts UL Listed 508 table 36.1 ATEX Rated DXN1 20 Amp outlet
