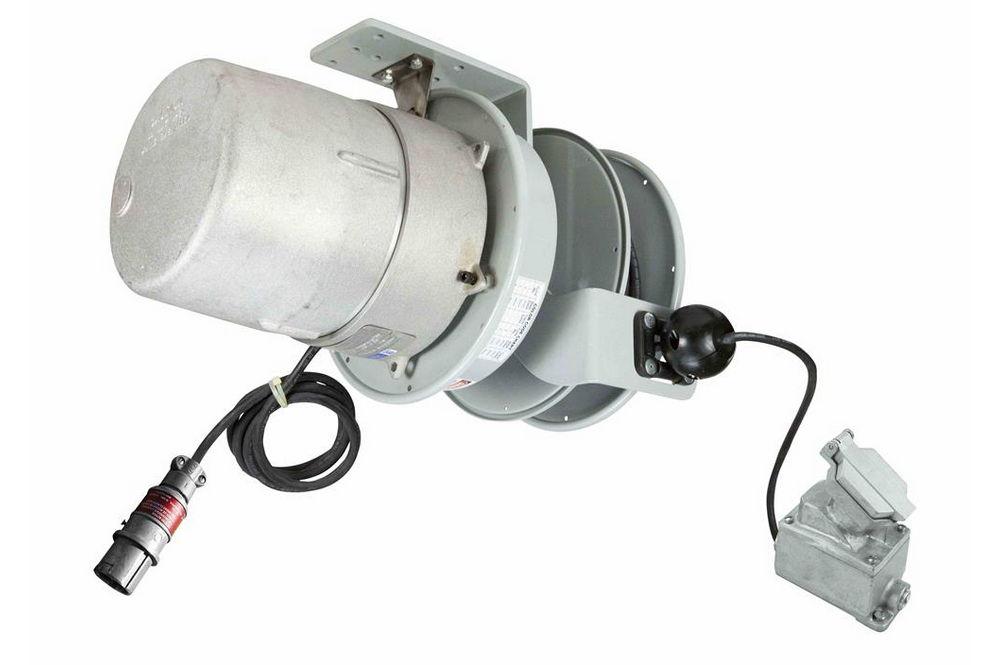

Explosion Proof Tool Tap Reel - 50 Foot Cord Reel w/ Explosion Proof Outlet - C1D1 Rated -Pin Sleeve

LARSON ELECTRONICSSKU: PL3-EPLRT-50-HR-EPP-125.250V
filler

Precio:
Precio de venta$12,730.00

Descripción

Specifications / Additional Information
EPLRT-50-HR Explosion Proof Cord Reel w/ Tool Tap Safety Rating
Standard Features: Class I Division 1, Groups C&D
16/3 SOOW cable (on all reels) Class II Division 1, Groups E,F, & G
Spring activated ratchet Class III Division 1
4-roller adjustable cable guide and ball Class 1 Zone 1: AEx d IIB, EX d IIB
Built to UL 508 table 36.1/NEC Standards Conforms to NEMA 9 and NEMA 4 (IP56)
Indoor or Outdoor Use
Rugged fabricated steel and cast aluminum slip ring enclosure
Gray epoxy finish on all steel parts
6` feeder cord on fixed end
20 Amp C1D1 Mating Plug & Receptacle
This fixture is being remanufactured with cord reel under file number E193373.

' Product Overview '
Made in the USA The EPLRT-50-HR-EPP-125.250V Explosion Proof Cord Reel w/ Tool Tap provides easy management of an included 50 feet of SOOW cord, giving operators in hazardous locations the ability to easily extend the working reach of their tools and lighting equipment. This cord reel with tool tap is ideal for petroleum facilities, waste water treatment plants, grain storage and handling silos, paint booths, underground mines, chemical plants, and much more. This explosion proof cord reel has a 20 amp rated explosion proof 2 pole 3 wire power receptacle paired with a 20 amp rated explosion proof plug, ideal for operators who need a secure, high quality connection that can withstand harsh industrial and manufacturing conditions. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** This explosion proof tool tap is rated for Class 1 Division 1 and Class 2 Division 2 environments and includes the reel, 50 feet of 16/3 AWG SOOW cord, and a Class 1 Division 1 & 2 pin sleeve receptacle that features a rop-hinged cover design and optimal protection from dust, ice, snow, water and other environmental factors. This receptacle is factory sealed and has a rotating mechanism thqt prevents complete withdrawal of the plug. This delayed action feature allows the plug to be used as a push-pull switch in case of emergency. A matching 2 wire 3 pole explosion proof input plug is located on the line in cord, and is designed for secure power connections in flammable work sites and industrial facilities. This Class 1 Division 1, Zones 1 & 2 rated plug is rated at 20 amps and features solder terminations for reliable connections. The plug is factory sealed and constructed of copper-free aluminum. Contacts are made through round tellurion copper tubing, allowing the explosion proof accessory to withstand arcing. This unit features an extra long grounding pole for safety and secured bonding. This unit is of a modular design and is suitable for indoor or outdoor applications. The unit includes 50 feet of SOOW Cord with a 14" flange diameter and is ready to install a portable explosion proof fixture to the end. These reels are built with modular components, coupled with a spark proof ratchet and hazardous location slip ring housing. The cord feeds onto the steel reel assembly through a 4 roller adjustable cable guide with a ball stop. This reel includes an integral spring actuated ratcheting mechanism for positive cord management housed within the explosion proof threaded slip ring enclosure. This cord reel is assembled to UL 508 table 36.1 / NEC Standards and conforms to NEMA 9 and NEMA 4 (IP56) standards as well.
This explosion proof tool tap is ideal for use with drop lights and tools in locations where connection to fixed receptacles is unavailable or impractical, and safely extends the operational range without creating the hazards associated with excessive cord lengths strewn about the workplace. Larson Electronics offers a wide variety of lighting solutions to accommodate this reel. For more information on these lights, please contact us at 1-800-367-6671.
Features
Built to UL 508 table 36.1 / NEC Standards Indoor or outdoor use 50,000 hour LED Lamp Rugged fabricated steel and cast aluminum construction Threaded slip ring enclosure Gray epoxy finish on steel parts Pin Sleeve Receptacle w/ Mating Input Plug on Line In Cord
