Explosion Proof Tool Tap Reel - 50 Foot Cord Reel w/ Triple Gang Explosion Proof Outlet - C1D1
Explosion Proof Tool Tap Reel - 50 Foot Cord Reel w/ Triple Gang Explosion Proof Outlet - C1D1
| EPLRT3-50-HR Explosion Proof Cord Reel w/ Tool Tap | Safety Rating |
| Standard Features: | Class I Division 1, Groups C&D |
| 16/3 SOOW cable (on all reels) | Class II Division 1, Groups E,F, & G |
| Spring activated ratchet | Class III Division 1 |
| 4-roller adjustable cable guide and ball | Class 1 Zone 1: AEx d IIB, EX d IIB |
| Built to UL 508 table 36.1/NEC Standards | Conforms to NEMA 9 and NEMA 4 (IP56)Â |
| Indoor or Outdoor Use | |
| Rugged fabricated steel and cast aluminum slip ring enclosure | |
| Gray epoxy finish on all steel parts | |
| 6` feeder cord on fixed end | |
| Three 15 Amp or 20 Amp C1D1 outlets | |
| Â | |
| This fixture is being remanufactured with cord reel under file number E193373. |

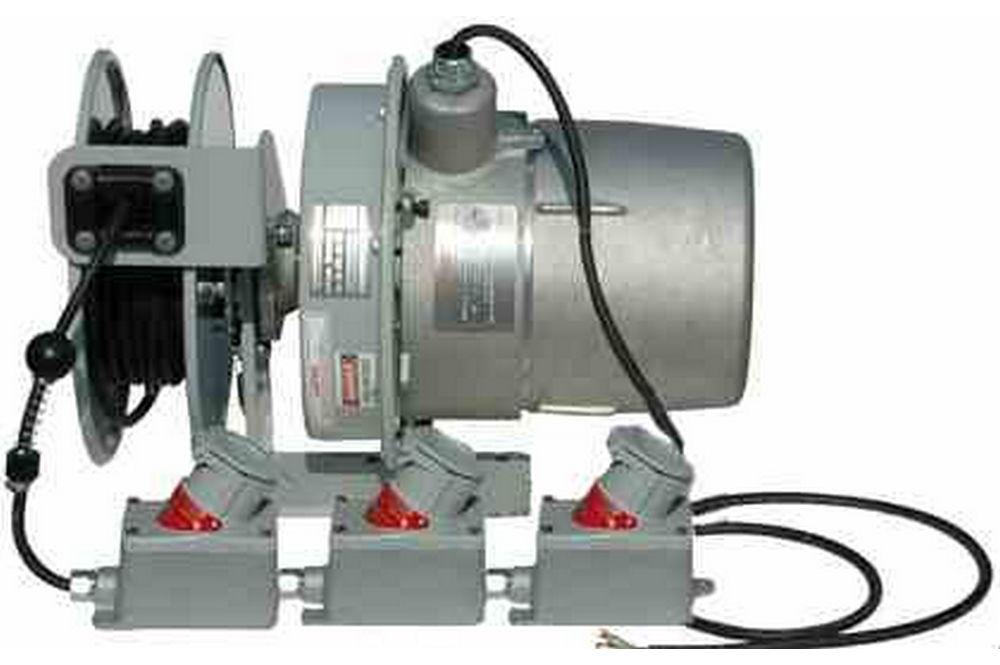

| Made in the USA The EPLRT3-50-HR Explosion Proof Cord Reel w/ Triple Gang Tool Tap provides easy management of an included 50 feet of SOOW cord, giving operators in hazardous locations the ability to easily extend the working reach of their tools and lighting equipment. This cord reel with tool tap is ideal for petroleum facilities, waste water treatment plants, grain storage and handling silos, paint booths, underground mines, chemical plants, and much more. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** This explosion proof tool tap is rated for Class 1 Division 1 and Class 2 Division 2 environments and includes the reel, 50 feet of 16/3 AWG SOOW cord, and a triple gang Class 1 Division 1 twist lock receptacle. For proper protection and to maintain HAZLOC approval, a matching twist lock plug should be used with this unit’s power receptacle. This unit is of a modular design and is suitable for indoor or outdoor applications.The unit includes 50 feet of SOOW Cord with a 14" flange diameter and is ready to install a portable explosion proof fixture to the end. These reels are built with modular components, coupled with a spark proof ratchet and hazardous location slip ring housing. The cor d feeds onto the steel reel assembly through a 4 roller adjustable cable guide with a ball stop. This reel includes an integral spring actuated ratcheting mechanism for positive cord management housed within the explosion proof threaded slip ring enclosure. This cord reel is assembled to UL 508 table 36.1 / NEC Standards and conforms to NEMA 9 and NEMA 4 (IP56) standards as well. | ||
This explosion proof tool tap is ideal for use with drop lights and tools in locations where connection to fixed receptacles is unavailable or impractical, and safely extends the operational range without creating the hazards associated with excessive cord lengths strewn about the workplace. Larson Electronics offers a wide variety of lighting solutions to accommodate this reel. For more information on these lights, please contact us at 1-800-367-6671.
|
