Explosion Proof Outlet - 20 Amp Rated - (2) 1" NPT Hubs on South Side
Explosion Proof Outlet - 20 Amp Rated - (2) 1" NPT Hubs on South Side
| EPO-20A-V2-2X1S Explosion Proof Power Outlet | Certifications - Compliance |
| Unit Dimensions: 3"W x 5.69"D x 7.63"H | U.L.-Standard: No.-22.2,25,C22.2,30,C22.2,42,C22,159 |
| Receptacle Current Rating: 20 Amp | U.L Listed.- E10784, E81751 |
| Configuration: 3 Pole 2 Wire | CSA Standard: C22.2 No. 182.1 |
| Number of Poles: 3 | CSA Certified: 065179 |
| Conduit Openings: (2) 1" NPT Hubs on South Side | NEMA 3, 3R, 7BCD, 9FG |
| Mating Plugs: ****, **** | Class 1, Division 1&2 Groups B*,C, D |
| Grounding: Housing only | Class 2, Division 1&2 Groups F, G |
| Unit Materials:Â Box- Iron /Receptacle- Copper Free Aluminum (4/10 of 1% max.) | Class III |
| Finish:Â Box-Triple Coat / Receptacle-Epoxy Powder Coat | Â |
| Insulating Blocks: Fiber Glass Reinforced Polyester | |
| Ambient Temp Rating: -40°C to +65°C | |
| Fax:Â 1-903-498-3364 | |
| Â | E-mail:Â Â |
| *Suitable for use in Class I, Division 1, Group B when used with external seals. |

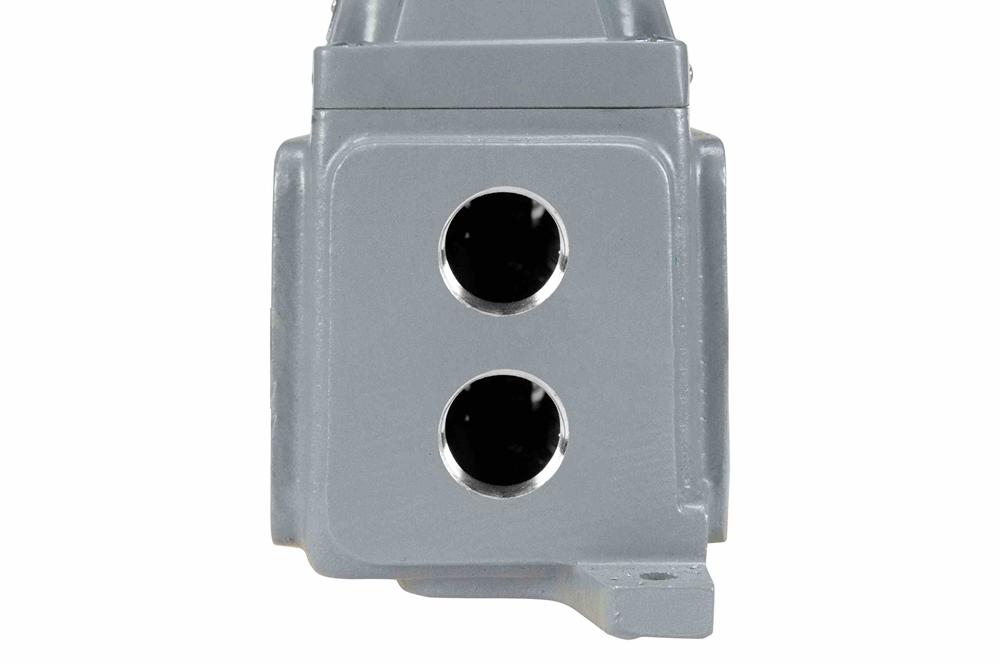

The EPO-20A-V2-2X1S from Larson Electronics is an Explosion Proof Power Outlet that provides durable and secure weatherproof power connection for portable or stationary electrical devices and equipment in locations where equipment is susceptible to wet and corrosive environments. The EPO-20A-V2-2X1S is equipped with two 1" NPT hubs located on the south side of the outlet enclosure. Choose 125 V 1 HP or 250 V 2 HP.
This 20 amp rated power receptacle is ideal for operators seeking a high quality, wet area rated power receptacle suitable for use in industrial and manufacturing applications. This unit's power receptacle is constructed of copper free aluminum and the housing is malleable iron. The unit is factory sealed and any arcing is safely contained with the interior of the receptacle. The receptacle contacts are deep recessed to avoid accidental contact and will not be energized by non explosion proof plugs to preserve explosion proof protection in hazardous environments. Ordinary location plugs will NOT activate this explosion proof receptacle.
The iron housing is finished in a triple-coat zinc electroplate, chromate and epoxy powder coat while the receptacle is finished with an epoxy powder coat. This unit is designed to withstand wet and corrosive conditions such as those found in docks and shipyards and comes with a spring loaded receptacle door to prevent ingress of water and contaminants when the unit is not in use.
|
