Explosion Proof Receptacle- 3 wire 4 pole - 60Amp 125-250 Vac - Class 1 Division 1 & 2

LARSON ELECTRONICSSKU: PL3-EPO-60A
filler

Precio:
Precio de venta$6,314.00

Descripción

Specifications / Additional Information
EPO-60A Explosion Proof Power Outlet Certifications - Compliance
Vertical Feed Dimensions: 12.75"-H   7.25"-W  9.31 "-D Class 1, Division 1&2 Groups C, D
Vertical & Horizontal Feed Dimensions: 11.88"-H   7.31"-W  6.88 "-D UL Standard: 1010 (UL 1203), 894, 1682, 1686
Configuration: 4 Pole 3 Wire UL Listed: E10784
Grounding: Shell and Extra Wire CSA Stnd: C22. No 30, C22.2 No. 159, C22.2 No 182.1
Conduit Openings: 1 1/4"
Mating Plugs: ********
Sealing: Factory Sealed Toll Free: 1-800-369-6671
Unit Materials:Box- Iron /Receptacle- Copper Free Aluminum (4/10 of 1% max.) Intl: 1-214-616-6180
Finish: Box-Triple Coat / Receptacle-Ceramic Burnisht Fax: 1-903-498-3364
Receptacle Current Rating: 125-250 Vac, 60 Amp, 5 HP E-mail:
' Product Overview '
The Larson Electronics EPO-60A explosion proof power receptacle provides a durable and secure power connection for portable or stationary electrical devices and equipment in locations where equipment is exposed to flammable chemicals and vapors. This 60 amp rated explosion proof Pin and Sleeve receptacle is ideal for operators seeking a high quality, Class 1 Division 1 rated power receptacle suitable for use in industrial and manufacturing applications. This unit is constructed of a copper free aluminum receptacle and cover mated with a malleable iron mounting box. The unit is factory sealed and any arcing is safely contained with the interior of the receptacle. The receptacle contacts are deep recessed to avoid accidental contact and cannot be energized by an ordinary plug to preserve explosion proof protection in hazardous environments. Ordinary location plugs will NOT work with this explosion proof receptacle. The iron housing box is finished in a triple-coat zinc electroplate, chromate and epoxy powder coat while the receptacle finish is a ceramic burnishing. This unit is designed to resist wet or dusty conditions with factory seals and a spring loaded receptacle door to prevent ingress of water and dusts when the unit is not in use.

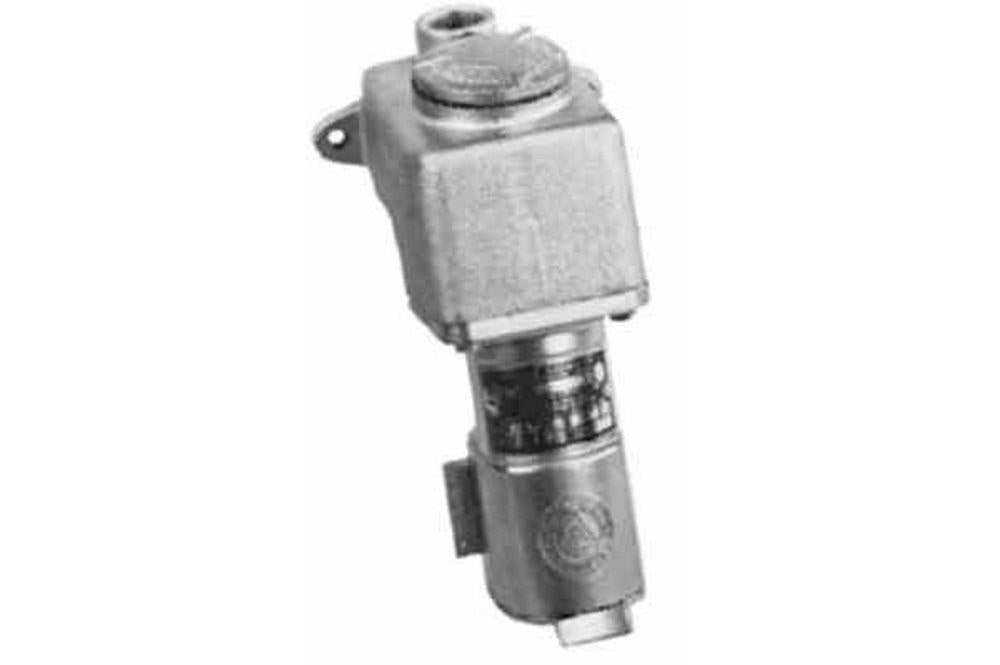

 Vertical Feed  Click Photos to Enlarge Vertical & Horizontal Feed
The EPO-60A power receptacle is constructed of non sparking aluminum and finished with an epoxy powder coating while the housing box is constructed of triple coated malleable iron for durability and added corrosion resistance. The internal receptacle plug contacts are constructed of brass with beryllium copper wire springs and are designed to maintain constant pressure along their entire length for superior connectivity. The plug receptacle is deeply recessed to prevent accidental contacts and designed for slide lock plug insertion to ensure positive sealing and secure connections. A neoprene seal fitted inside the connector receptacle seals against the plug when inserted to provide positive sealing against water ingress. A spring loaded receptacle door provides an automatic weather-tight seal when the plug is removed. In standard installations within the hazardous location area, threaded rigid pipe is brought to the receptacle and the unit is affixed to a mounting surface.  This receptacle is a mate for the Larson Electronics explosion proof plug and is suitable for use with Larson Electronics explosion proof lights and equipment. Options: This unit is available in a vertical feed through configuration with a hub located on the top and bottom, or a vertical and horizontal feed through configuration with a single hub on top and two located on the sides of the receptacle. The hubs on this unit are 1 1/4" diameter and threaded to accept threaded conduit or plugs. Please choose your hub feed configuration option below when ordering. Circuit protection: This unit`s receptacle is designed to safely contain any arcs between the internal contacts that may be created within the receptacle housing. This receptacle is a 3 wire 4 pole design with shell and extra pole grounding. The unit is factory sealed and does not require external seals. Inter-Compatibility: These units are cross compatible with Crouse Hind„¢ receptacles under catalogue number "CES2214" and Crouse Hind CPH plugs and Hubbell-Killark KR Series 60 amp plugs and receptacles. Due to possible manufacturer changes we cannot guarantee interchangability although we have made every effort to ensure cross compatibility correctness. Suggested Applications: Areas Where Ignitable Vapors and Gases May Be Present; Manufacturing, Industrial, Commercial, Docks, Shipyards, Shipping Ports and other similar ship to shore applications as well as any application requiring a hazardous area suitable and highly durable source of secure power connection.
Features
1. Specially designed receptacle contains arcs within the unit. 2. Spring loaded door seals receptacle when not in use. 3. Brass contacts provide constant pressure and superior conductivity. 4. Will not be energized by non explosion proof plugs. 5. Neoprene seal compressed by plug prevents water ingress into receptacle when in use. 6. Rated to handle loads of 125-250Vac, 60 Amps, 5 HP. 7. Receptacle ceramic burnish finish for durability. Housing Triple coated for durability/corrosion resistance. 8. 3 wire 4 pole with shell and extra wire grounding. 9. Corrosion resistant.
