Explosion Proof - 60Amp- Receptacle Plug - Slip Pin

LARSON ELECTRONICSSKU: PL3-EPP-4P-60A-SP
filler

Precio:
Precio de venta$14,618.00

Descripción

Specifications / Additional Information
EPP-4P-60A-SP Explosion Proof PLug Certifications - Compliance
Amp Rating: 60 Class 1 Groups B, C and D
Dimensions:8.44"-L 3.06"-W Class2 Groups F and G
Configuration: 4 Pole 3 Wire Class 2 DIV 1 - 2 Group F & G
Suitable Cable Diameter: .390" to 1.375" Class 3/ NEMA 3, 3R, 7CD, 9FG
Max Current: 600 Vac Max. 250 Vdc @ 60 Amps Max
Materials: Copper Free Aluminum
Toll Free: 1-800-369-6671
Intl: 1-214-616-6180
Fax: 1-903-498-3364
' Product Overview '

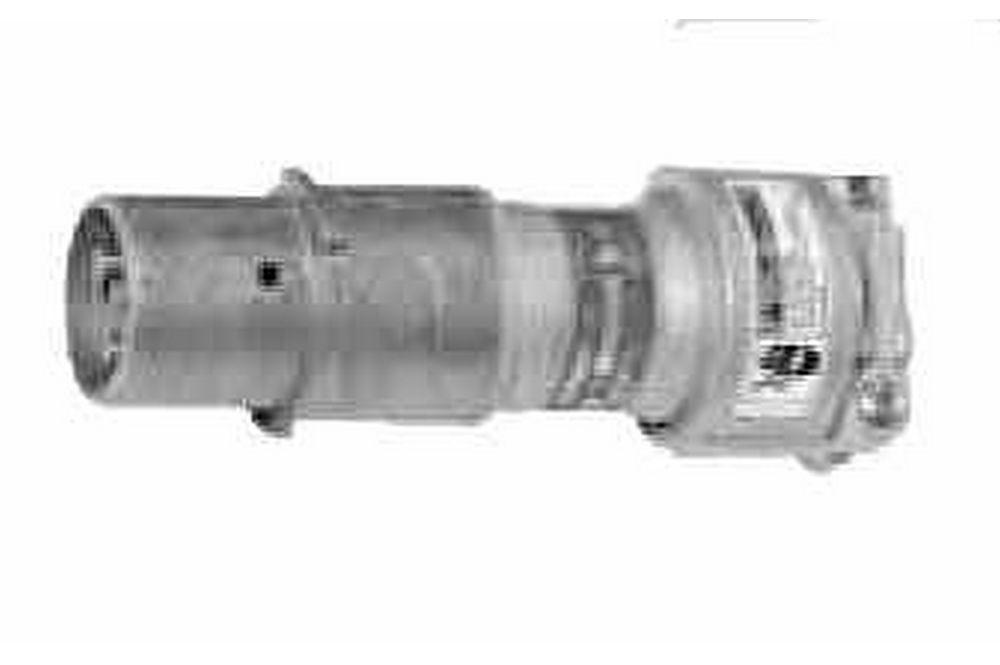

Larson Electronics EPP-4P-60A-SP Explosion Proof Plug This explosion proof slip pin plug is compatible with our EPO-3W4P-60A power receptacles and is ideal for hazardous locations where flamable vapors, gases and dusts may be encountered.. This plug is rated for 60amps and is suitable for Class 1 Groups B, C and D and Class 2 Groups F and G. This explosion proof plug features non sparking aluminum construction, recessed brass pins to prevent accidental contact, and a 60 amp current rating.
Inter-Compatibility: These plugs are are cross-interchangeable with Crouse Hind plugs under catalogue numbers "CPH7734, CPH7934" and Hubble-Killark KR SERIES ® plugs under catalogue numbers "KP-604D345, KP-604E45, KP-604E67". Any equipment requiring these C-H or H-K plugs should work with these plugs. Due to possible manufacturer changes we cannot guarantee interchangability although we have made every effort to ensure cross compatibility correctness. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Motor-Generator  Sets, Compressors, Wet areas or Locations Where Combustible Dust is Present.
