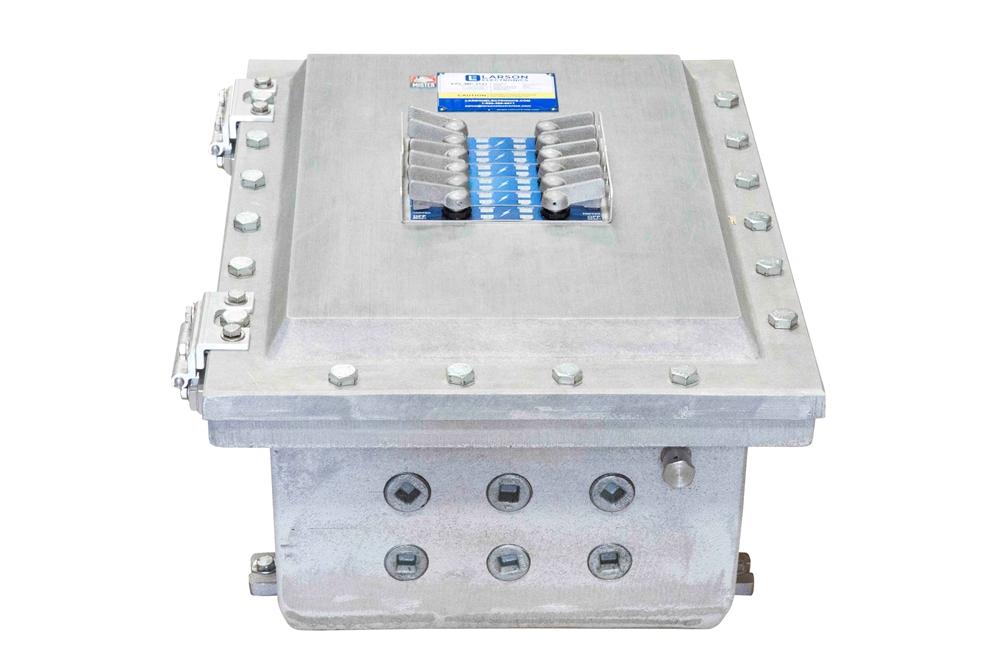

Explosion Proof Panelboard - Class I, II, III - 120/240V 1-phase - 225A MCB - (1) 30A (12) 20A Breakers - (11) Hubs
Explosion Proof Panelboard - Class I, II, III - 120/240V 1-phase - 225A MCB - (1) 30A (12) 20A Breakers - (11) Hubs
| EPPB-1P-120.240V-30AMB-12X20A.1P Explosion Proof Panelboard | Ratings/Approvals |
| Listing: NRTL Listed for United States and Canada | Class I, Division 1&2, Groups B,C,D |
| Dimensions: 45 3/8" x 33" x 16 7/8" | Class II, Division 1&2, Groups E,F,G |
| Weight: - | Class III |
| Voltage: 120/240V AC, 1-phase | NEMA 4X, 7, 9 |
| Panel Type: Main Circuit Breaker | Â |
| Primary Max OCP:Â 225A @ 240V | Â |
| Circuits: 24 | |
| Breakers: (1) 30A 2P Main Bolt-on Breaker [120/240V] w/ (1) 2P Padlockable MB Operator, (12) 20A 1P Bolt-on Breakers [120V] w/ (12) 1P Padlockable Breaker Operators | |
| Materials: Cast Aluminum w/ Hinged Cover | Toll Free:Â 1-800-369-6671 |
| Mount: Wall or Surface | Intl:Â 1-214-616-6180 |
| Conduit Configuration: (1) Top, (8) Bottom, (2) Right | |
| Hub Sizes: (1) 2" NPT @ Top, (8) 1" NPT @ Bottom, (2) 1" NPT @ Lower Right Side | |
| *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
| The EPPB-1P-120.240V-30AMB-12X20A.1P Explosion Proof Panelboard offers circuit management and protection in hazardous locations and indoor/outdoor work sites. The 225-amp rated main circuit breaker panel is compatible with single-phase 120/240V and comes with 12 breakers. This explosion proof panel is constructed of cast aluminum and features a hinged cover. The EPPB-1P-120.240V-30AMB-12X20A.1P is a rugged main circuit breaker panel for use in hazardous locations and explosive work sites. This unit comes with a 225-amp rating and supports single-phase 120/240V AC. The explosion proof panel is furnished with copper buss, with padlocking main/branch breaker handles. Operators can access one 30-amp 2-pole 120/240V main bolt-on breaker with one 2-pole padlockable main breaker operator and twelve 20-amp 1-pole 120V bolt-on breakers with twelve 1-pole padlockable breaker operators. This unit is constructed of cast aluminum with a hinged cover. The explosion proof panelboard contains the following conduit openings: (1) top, (8) bottom and (2) right. Hub sizes include (1) 2" NPT, (8) 1" NPT and (2) 1" NPT. This top feed panel is NEMA rated and suitable for use in Class I, Divisions 1 & 2; Class II, Divisions 1 & 2; and Class III work sites. Mount: The EPPB-1P-120.240V-30AMB-12X20A.1P is compatible with wall or surface mounting configurations. Applications: Hazardous locations, oil and gas facilities, petroleum refineries, chemical processing, lighting systems, overcurrent protection, short circuit protection and more. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units If this model does not meet your needs, please contact us at 1-800-369-6671 or |
