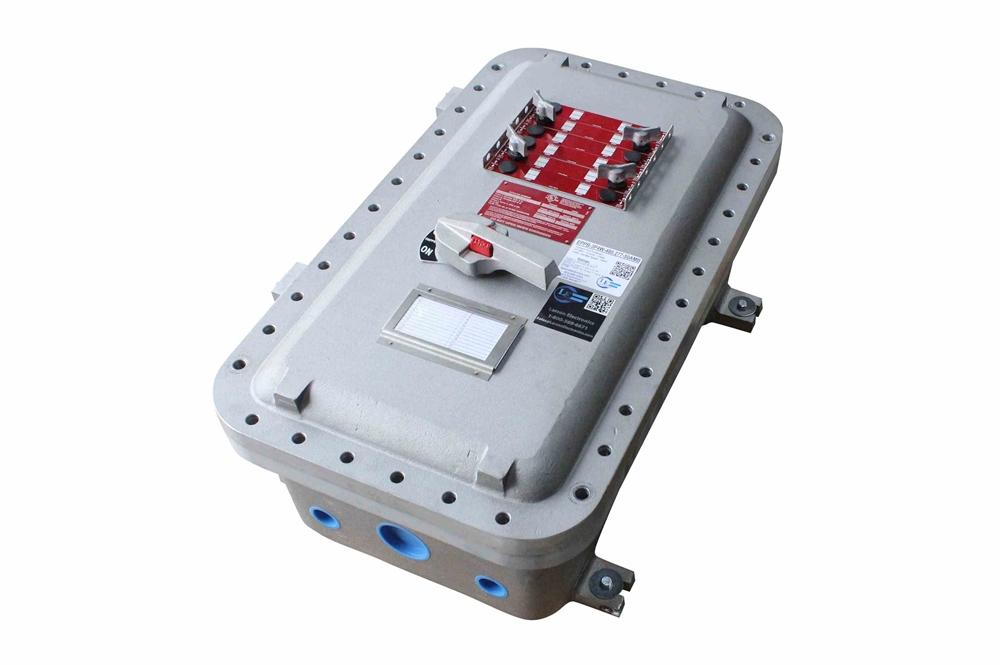

Explosion Proof Panelboard - C1D1 - 208Y/120 3-phase - 200A Main Breaker - 12 Circuit Panel - (4) Breakers, (12) Hubs

LARSON ELECTRONICSSKU: PL3-EPPB-3P4W-208Y.120-200MB-2X60A.3P-2X20A.1P-M2
filler

Precio:
Precio de venta$41,034.00

Descripción

Specifications / Additional Information
EPPB-3P4W-208Y.120-200MB-2X60A.3P-2X20A.1P-M2 Explosion Proof Panelboard Ratings/Approvals
Listing: NRTL Listed for United States and Canada Class I, Division 1 Groups C, D
Unit Type: Explosion Proof Lighting Panelboard NEMA Type 4X, 7, 9 - IP66
Dimensions: 45-3/8"H x 17-1/2"W x 10-3/8"D
Weight: 250 lb
Primary Voltage: 208Y/120 AC
Primary Phase: 3-phase
Panel Type: Main Circuit Breaker
Main Panel Amp Rating: 200 Amps
Configuration: 3 Pole, 4 Wire
Circuit Panel: 12
Breakers: (2) 60A 3P, (2) 20A 1P w/ External Handles
Ground Bar: Internal Ground Terminal
Bus Materials: Copper Special Orders - Requirements
Ground Materials: Copper
Housing Materials: Copper-free Aluminum Toll Free: 1-800-369-6671
Finish: Aluminum Lacquer Paint Intl: 1-214-616-6180
Mount: Wall or Surface
Hubs: (1) 2" NPT @ South Side/Bottom; (2) 1" NPT & (1) 3/4" NPT @ North Side/Top; (2) 1" NPT & (2) 3/4" NPT @ West Side/Left; (2) 1" NPT & (2) 3/4" NPT @ East Side/Right
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The Larson Electronics EPPB-3P4W-208Y.120-200MB-2X60A.3P-2X20A.1P-M2 Explosion Proof Panelboard offers circuit management and protection in hazardous locations and indoor/outdoor work sites. The 200-amp rated main breaker panel is compatible with three-phase 208Y/120 AC and comes with four breakers. Suitable for Class I, Division 1 Groups C and D rated locations, this explosion proof panel is constructed of copper-free aluminum. The EPPB-3P4W-208Y.120-200MB-2X60A.3P-2X20A.1P-M2 is a rugged main circuit breaker panel for applications in hazardous locations and explosive work sites. This unit comes with a 200-amp rating and supports three-phase 208Y/120 AC. Equipped with a 3-pole, 4-wire configuration, the main breaker panel is furnished with a heavy-duty operating handle. This explosion proof unit utilizes 12 circuit minimum for branch breakers. Operators can access a total of four breakers on the explosion proof panelboard. The breakers are configured as follows: (2) 60-amp 3-pole and (2) 20-amp 1-pole. The breakers are equipped with external handles. This unit is constructed of copper-free aluminum and is finished in aluminum lacquer paint. The NEMA-rated explosion proof panelboard carries an IP66 waterproof rating. Hubs: The explosion proof panelboard contains the following hubs: (1) 2€ NPT on the south side of enclosure (bottom side), (2) 1€ NPT & (1) ¾€ NPT on the north side of enclosure (top side), (2) 1€ NPT & (2) ¾€ NPT on the west side of enclosure (left side) and (2) 1€ NPT & (2) ¾€ NPT on the east side of enclosure (right side). Mount: The EPPB-3P4W-208Y.120-200MB-2X60A.3P-2X20A.1P-M2 is compatible with wall or surface mounting configurations. Applications: Hazardous locations, oil and gas facilities, petroleum refineries, chemical processing, lighting systems, overcurrent protection, short circuit protection and more. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units If this model does not meet your needs, please contact us at 1-800-369-6671 or
