Explosion Proof Panelboard - C1D1/2 - 230-400V AC 3PH - 225A Rated MCB - Photocell
Explosion Proof Panelboard - C1D1/2 - 230-400V AC 3PH - 225A Rated MCB - Photocell
| EPPB-3P4W-225AMB-1X100A-6X40A-DNS Explosion Proof Panelboard | Ratings/Approvals |
| Unit Type: Explosion Proof Lighting Panelboard | Class I, Div 1&2 Groups B,C,D |
| Dimensions: - | Class I, Zones 1&2 Groups IIB+H2, IIA |
| Primary Voltage: 230-400V AC 3PH 60 Hz | Class II, Div 1&2 Groups E,F,G |
| Main Panel Amp Rating:Â 225A | Class III, Div 1&2 |
| Configuration: 3 Pole 4 Wire | NEMA 4X, 7 (IP66) |
| Breakers: (1) 100A, (1)Â 40A, (6) 16A | CENELEC/ATEX/IEC - Ex |
| Temp Rating: -20ºC to +60ºC | Ex d IIB + H2 T5 or T6 |
| Materials: Copper Free Aluminum, SS Hardware | Ex tD A21 IP66 |
| Finish: Aluminum Lacquer Finish | |
| Mount: Surface | |
| Wire Size: 4/0 AWG (Input), 1/0 AWG (Ground) | |
| Hubs: (1) 1.5" NPT (Top), (9) 3/4" NPT (Bottom) | Toll Free:Â 1-800-369-6671 |
| Devices: Photocell | Intl:Â 1-214-616-6180 |
| Â | Fax:Â 1-903-498-3364 |
| Â | E-mail:Â |
| *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |

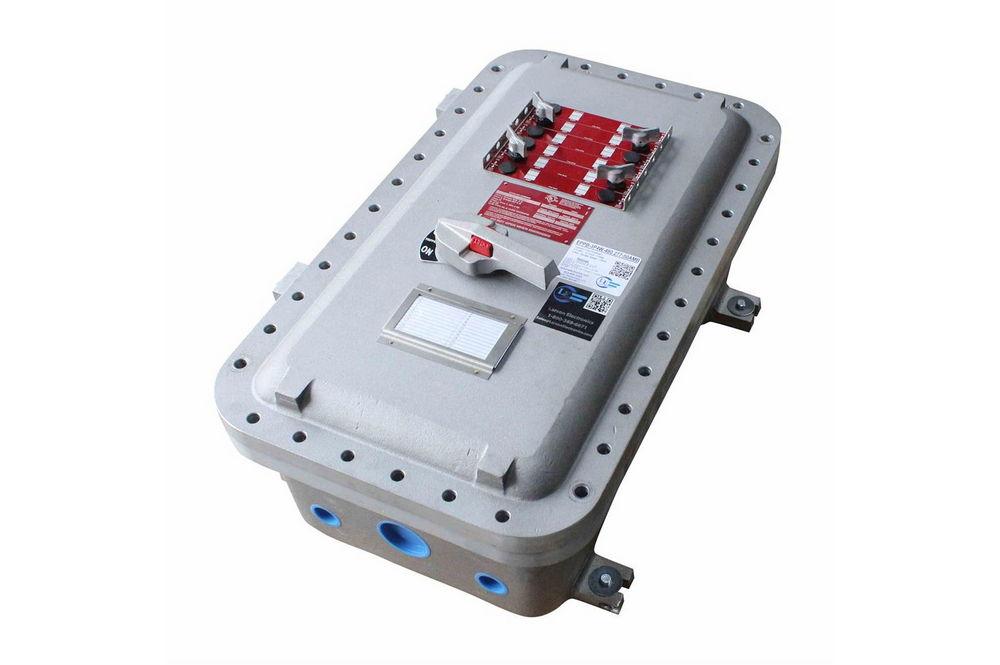

| The EPPB-3P4W-225AMB-1X100A-6X40A-DNS from Larson Electronics is an Explosion Proof Lighting Distribution Board for Class I, Division 1 & 2 and Class II, Division 1 & 2 facilities. The 3-pole, 4-wire panelboard features a primary voltage of three-phase 230-400V AC 60 Hz and a 225-amp rated main panel. Constructed of copper-free aluminum with stainless steel hardware, the IP66-rated unit is equipped with a photocell. The EPPB-3P4W-225AMB-1X100A-6X40A-DNS is suitable for circuit protection in hazardous locations. This unit features a primary voltage of three-phase 230-400V AC 60 Hz and a 225-amp rated main breaker. Taking on a 3-pole 4-wire configuration, the explosion proof panelboard consists of one, 100-amp 3-pole breaker (protecting the panel), one, 40-amp 1-pole breaker and six, 16-amp 1-pole breakers. For security, this unit is pad lockable in the ON or OFF position (accepts up to 3 padlocks). Operators are provided access to a photocell on the lighting panel board, with on/off controls. This explosion proof panelboard is constructed of copper-free aluminum, with stainless steel hardware. Equipped with aluminum closing plugs, the unit is finished in aluminum lacquer for durability. The IP66-rated panelboard is approved with the following explosion proof ratings: Class I, Divisions 1 & 2 Groups B, C, D; Class II, Divisions 1 & 2 Groups E, F and G; and Class III. Mounting/Hubs: The EPPB-3P4W-225AMB-1X100A-6X40A-DNS can be mounted on flat surfaces. One, 1.5" NPT hub located the top of the unit and nine, 3/4" NPT hubs located at the bottom of the enclosure are available for completing connections. Applications: Industrial facilities, hazardous locations, offshore refineries, marine locations, indoor/outdoor spaces, agricultural sites, ship yards, docks and more. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units If this model does not meet your needs, please contact us at 1-800-369-6671 or |
