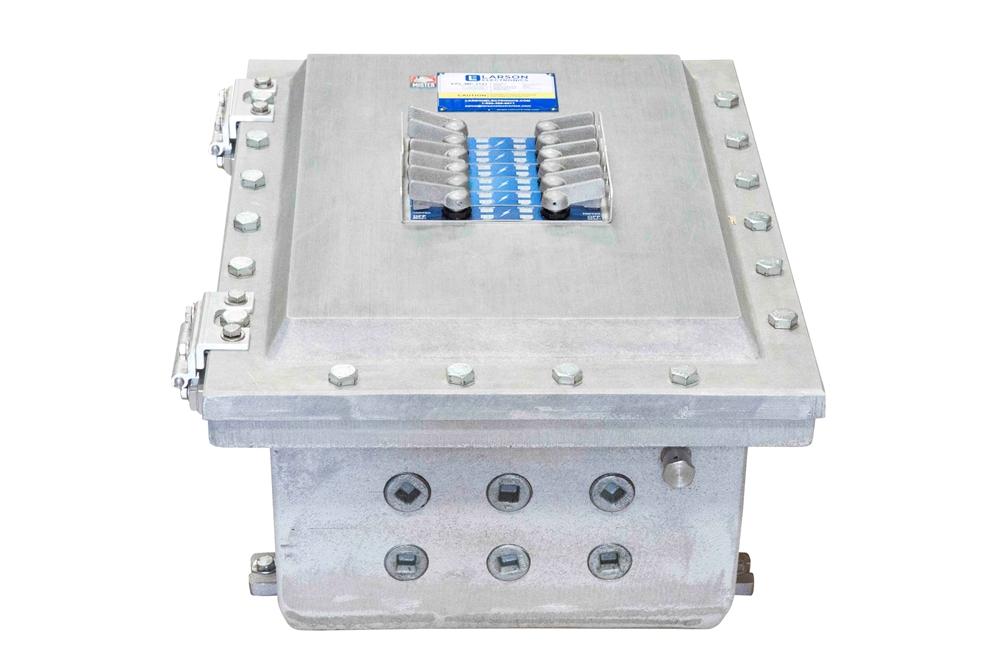

Explosion Proof Panelboard - 3P4W 480Y/277 3PH - 400A MCB - (6) 150A 2P Breakers, (6) Spare Circuits

LARSON ELECTRONICSSKU: PL3-EPPB-3P4W-480V-400AMB-18CKT-6X150A.2P
filler

Precio:
Precio de venta$37,816.00

Descripción

Specifications / Additional Information
EPPB-3P4W-480V-400AMB-18CKT-6X150A.2P Explosion Proof Panelboard Ratings/Approvals
Unit Type: Explosion Proof Lighting Panelboard Class I, Divisions 1 & 2, Groups B, C, D
Dimensions: 45 3/8" x 33" x 16 7/8" Class I, Zones 1 & 2, Groups IIB+H2, IIA
Weight: - Class II, Divisions 1 & 2, Groups E, F, G
Primary Voltage: 480Y/277 3PH Class III
Panel Type: Main Circuit Breaker NEMA 3, 4, 4X, 7(B, C, D), 9(E, F, G)
Main Panel Amp Rating: 400 Amps
Circuit Panel: 18
Breakers: (6) 150A 2P
Spare Circuits: (6)
Materials: Copper-free Aluminum Toll Free: 1-800-369-6671
Mount: Wall or Surface Intl: 1-214-616-6180
Conduit Configuration: (3) Top, (2) Bottom, (6) Left, (5) Right
Hub Sizes: (2) 3", (14) 1"
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The EPPB-3P4W-480V-400AMB-18CKT-6X150A.2P Explosion Proof Panelboard offers circuit management and protection in hazardous locations and indoor/outdoor work sites. The 400-amp rated main circuit breaker panel is compatible with 480Y/277 three phase and comes with six, 150-amp branch breakers installed. The 18-circuit panel is constructed of copper-free aluminum. The EPPB-3P4W-480V-400AMB-18CKT-6X150A.2P is a rugged main circuit breaker panel, with a 3-pole, 4-wire configuration, for applications in hazardous locations and explosive work sites. This unit comes with a 400-amp MCB rating and supports 480Y/277 three phase. The 18-circuit panel is furnished with copper buss, with padlocking main/branch breaker handles. Operators may access six, 150-amp 2-pole breakers. There are six circuits available for spares or additional equipment. This unit is constructed of copper-free aluminum (less than 4/10 of 1%), with 316 stainless steel cover bolts. The explosion proof panelboard contains the following conduit openings: (3) top, (2) bottom, (6) left and (5) right. Hub sizes include (2) 3" and (14) 1". This top feed panel is NEMA rated and suitable for use in Class I, Divisions 1 & 2; Class I, Zones 1 & 2; Class II, Divisions 1 & 2; and Class III work sites. Mount: The EPPB-3P4W-480V-400AMB-18CKT-6X150A.2P is compatible with wall or surface mounting configurations. Applications: Hazardous locations, oil and gas facilities, petroleum refineries, chemical processing, lighting systems, overcurrent protection, short circuit protection and more. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units If this model does not meet your needs, please contact us at 1-800-369-6671 or
