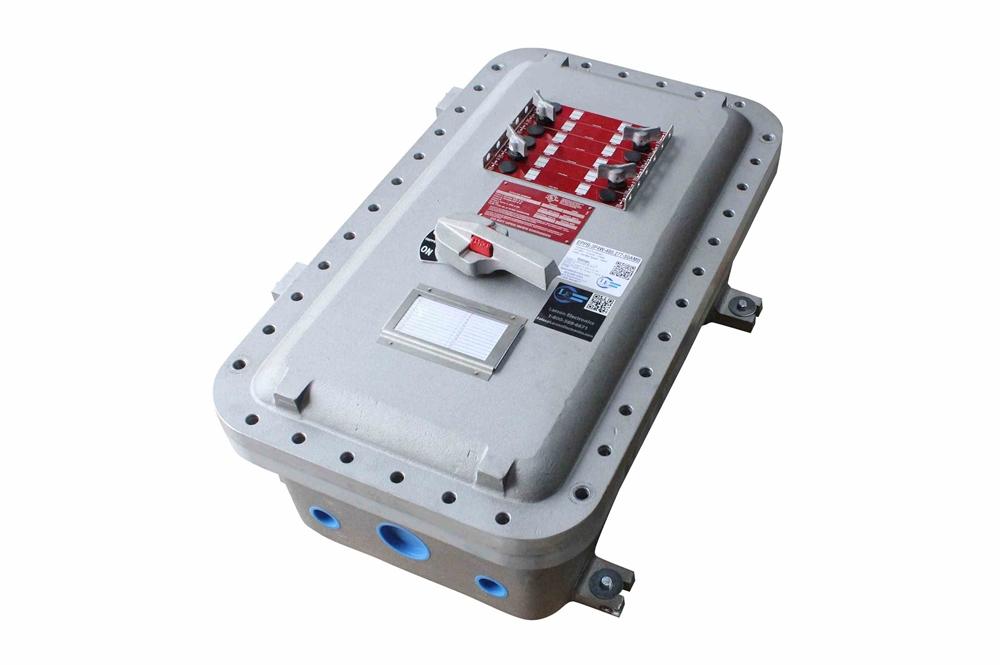

Explosion Proof Panelboard - Class I, II, III - 3P4W, 208Y/120V - 100A Main Breaker - (5) 20A 1P Breakers - NEMA
Explosion Proof Panelboard - Class I, II, III - 3P4W, 208Y/120V - 100A Main Breaker - (5) 20A 1P Breakers - NEMA
| EPPB-LPB-3P4W-208Y.120-100AMB-42CKT-5X20A.1 Explosion Proof Panelboard | Ratings/Approvals |
| Listing: NRTL Listed for United States and Canada | Class I, Divisions 1&2, Groups B,C,D |
| Unit Type: Explosion Proof Lighting Panelboard | Class I, Zones 1&2, Groups IIB+H2,IIA |
| Dimensions: 54 3/8€ x 17 1/2" x 10 3/8" | Class II, Divisions 1&2, Groups E,F,G |
| Weight: 300 lbs | Class III, Divisions 1&2 |
| Primary Voltage: 208Y/120V AC, 3-phase | NEMA 3, 4, 4X, 7 (B,C,D), 9 (E,F,G) |
| Panel Type: Main Circuit Breaker | Â |
| Main Panel Amp Rating:Â 100 Amps | Â |
| Configuration: 3 Pole, 4 Wire |  |
| Circuit Panel: 42 Circuits | Â |
| Breakers: (5) 20A 1P w/ External Handles | Â |
| Blank Circuits w/ Blank Plugs: (37) | Â |
| Bus Materials: Copper | Â |
| Ground Materials: Copper | Â |
| Housing Materials: Copper-free Aluminum | Special Orders - Requirements |
| Cover Bolt Materials: 316 Stainless Steel | |
| Mount: Wall or Surface via 1/4" Thick Aluminum Mounting Lugs | Toll Free:Â 1-800-369-6671 |
| Feed Type: Top Feed | Intl:Â 1-214-616-6180 |
| Wire Size: 2/0-250 MCM | |
| Hubs: (2) 3" NPT Hubs @ Top and Bottom, (3) 1" NPT Hubs @ Top and Bottom, (6) 1" NPT Hubs @ Left Side, (7) 1" NPT Hubs @ Right Side | |
| *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
| The EPPB-LPB-3P4W-208Y.120-100AMB-42CKT-5X20A.1 Explosion Proof Panelboard offers circuit management and protection in hazardous locations and indoor/outdoor work sites. The 100-amp rated main breaker panel is compatible with three-phase 208Y/120V AC and comes with five, 20-amp 1-pole breakers. This top-feed explosion proof panel is constructed of copper-free aluminum and offers compatibility with wall or surface mounting. The EPPB-LPB-3P4W-208Y.120-100AMB-42CKT-5X20A.1 is a rugged main circuit breaker panel for applications in hazardous locations and explosive work sites. This unit comes with a 100-amp rating and supports three-phase 208Y/120V AC. Equipped with a 3-pole, 4-wire configuration, the main breaker panel is furnished with a heavy-duty operating handle and has 42 circuits. Operators can access a total of five, 20-amp 1-pole breakers with external handles on the explosion proof panelboard. There are a total of 37 blank circuits inside the panel with blank plugs on the panel lid. This unit is constructed of copper-free aluminum and features a hinged cover with 316 stainless steel cover bolts. The NEMA-rated explosion proof panelboard has a copper ground bar and is suitable for Class I, II and III rated combustible sites. Hubs: This top-feed panelboard contains one 3" NPT and two 1" NPT hubs at the top, one 3" NPT and one 1" NPT hubs at the bottom, six 1" NPT hubs at the left side and seven 1" NPT hubs at the right side. Mount: The EPPB-LPB-3P4W-208Y.120-100AMB-42CKT-5X20A.1 is compatible with wall or surface installations using four 1/4" thick aluminum mounting lugs at the back of the unit. Applications: Hazardous locations, oil and gas facilities, petroleum refineries, chemical processing, lighting systems, overcurrent protection, short circuit protection and more. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units If this model does not meet your needs, please contact us at 1-800-369-6671 or |
