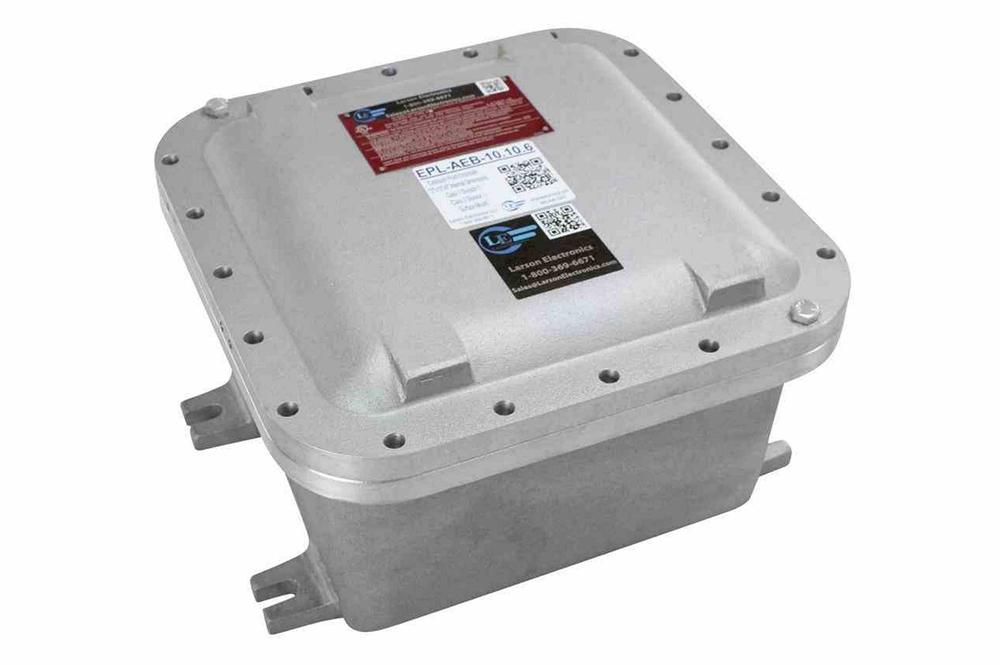

Explosion Proof Terminal Strip Junction Box - Class I, II, III - 480V - (20) Feed Through Terminal Blocks - N3R - (3) 1/2" NPT on West Side & (2) 1/2" NPT on East Side

LARSON ELECTRONICSSKU: PL3-EPPB-TWB-10.14.06-480V-20XTB-24A-R2
filler

Precio:
Precio de venta$10,984.00

Descripción

Specifications / Additional Information
EPPB-TWB-10.14.06-480V-20XTB-24A-R2 Explosion Proof Terminal Strip Junction Box Features/Ratings
Listing: NRTL Listed for United States and Canada Class I, Divisions 1 & 2, Groups B, C, D
Dimensions: 19.25"L 15.25"W x 8.90"H Class I, Zones 1 & 2, Groups IIB+H2, IIA
Weight: - Class II, Divisions 1 & 2, Groups E, F, G
Voltage: 480 V AC Class III, Divisions 1 & 2
Terminal Block Qty: (20) 24A NEMA Type 3, 4, 4X
Configuration/Type: Feed Through Screw Terminal Blocks (20 Input, 20 Output, 40 Total) Level 1
Protection: End Caps
Ambient Operating Temp Range: - Special Orders - Requirements
Materials: Copper-free Aluminum
Mounting: Din Rail Mount Toll Free: 1-800-369-6671
Wiring Hubs: (3) 1/2" NPT Hubs on West Side; (2) 1/2" NPT Hubs on East Side Intl: 1-214-616-6180


*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The EPPB-TWB-10.14.06-480V-20XTB-24A-R2 from Larson Electronics is an Explosion Proof Terminal Strip Junction Box, which can be used in Class I, II and III rated work sites. Equipped with twenty 24-amp feed through screw terminal blocks, the unit operates on 480 V AC. The explosion proof device is protected by a NEMA 3R rated copper-free aluminum housing. The EPPB-TWB-10.14.06-480V-20XTB-24A-R2 is equipped with (3) 1/2" NPT hubs on the west side and (2) 1/2" NPT hubs on the east side. The EPPB-TWB-10.14.06-480V-20XTB-24A-R2 is designed for electrical connections in combustible facilities. This level 1 terminal strip junction box contains twenty 24-amp feed through screw terminal blocks. Compatible with 480 V AC, the unit accepts 12-26 AWG wire sizes. The explosion proof unit is constructed of copper-free aluminum and comes with end caps. This explosion proof terminal strip junction box is NEMA 3R rated, for indoor and outdoor use and provides a degree of protection against dirt, water, and ice. Mounting: The EPPB-TWB-10.14.06-480V-20XTB-24A-R2 is compatible with din-rail mounting requirements. Suggested Applications: Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, chemical manufacturing, waste treatment plants, gas processing plants and more.
