Descripción
Specifications / Additional Information
EPPO-ICB-B-460V-3W4P-20A Explosion Proof Receptacle and Plug | Ratings |
Receptacle Specs: | Class I, Divisions 1 & 2 Group B, C, D |
Listing: NRTL Listed for United States, Canada | Class 1, Zones 1 & 2 IIB+H2, IIA |
Dimensions:Â 10 1/2" x 9 3/4" x 5 3/4" | Class II, Divisions 1 & 2 Group F, G |
Weight: - | Class III |
Voltage Rating: 460V | NEMA 3, 4, 4X 7(B,C,D), 9(F,G) |
Current Rating: 20 Amps | Â |
HP: 10HP @ 480V 1PH, 15HP @ 480V 3PH | Â |
Configuration: 3-Pole, 4-Wire | Â |
Protection: On/Off Circuit Breaker | Â |
Aux Contact: Late-make Early-break, Rated @ 10A, 1/3 HP 125/250V AC | Â |
Materials: Copper Free Aluminum | Â |
Finish: Electrostatically Applied Polyester/Epoxy | Â |
Mount: Wall | Â |
Wiring: Regular Stranding #10 Maximum | Â |
Hub Configuration: Feed Thru or Dead End | Â |
Hub Size: 1" NPT | Â |
 |  |
Plug Specs: | Â |
Listing: NRTL Listed for United States, Canada | Â |
Dimensions: 6 11/16" x 3" | Â |
Weight: - | Â |
Voltage Rating:Â 460V | Â |
Current Rating: 20 Amps | Â |
HP: 10HP @ 480V 1PH, 15HP @ 480V 3PH | Â |
Configuration: 3-Pole, 4-Wire | Â |
Materials: Copper Free Aluminum | |
Finish: Electrostatically Applied Polyester/Epoxy | |
Mount: - | Toll Free:Â 1-800-369-6671 |
Wiring: Regular Stranding #10 Maximum | Intl:Â 1-214-616-6180 |
Hub Configuration: - | |
Hub Size: 1" NPT |

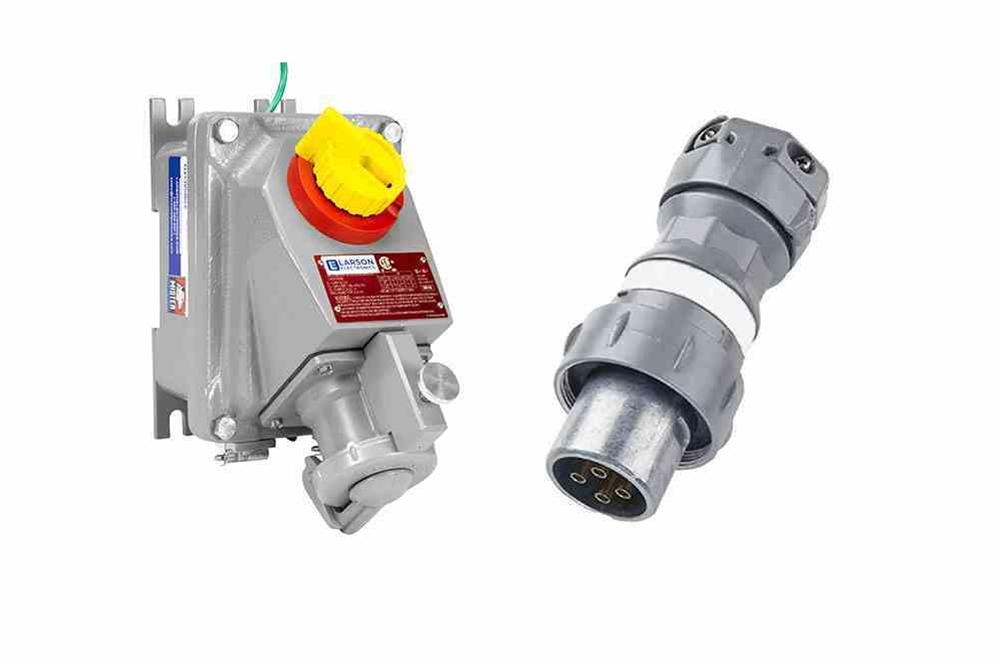

The Larson Electronics EPPO-ICB-B-460V-3W4P-20A Explosion Proof Receptacle and Plug is approved for Class I, Division 1 & 2, Class II, Division 1 & 2 and Class III sites and provides a safe and secure power connection for portable or stationary electrical devices and equipment in hazardous locations. This 3-pole, 4-wire unit is constructed of copper-free aluminum and operates with 460V AC. Rated at 20 amps, both devices can be used in Class I, Group B rated locations. The explosion proof power receptacle and plug is designed for use in combustible work sites, including Class I, Group B. This 20-amp receptacle features compatibility with 460V AC. This 3-pole, 4-wire unit is constructed of copper-free aluminum with an electrostatically applied polyester/epoxy finish and contains an integral circuit breaker which provides short circuit and thermal overload protection as well as manually operable protection during connection and disconnection of electrical cables. This unit is easily wall mounted via two screw slot tabs at the side of the housing and contains a feed-thru or dead-end configuration with 1" NPT hub size. The explosion proof plug takes on an octagon-style design. Insulators have high mechanical and dielectric strength and are low arc tracking. The device takes on a NEMA 4X rating when used with a compatible receptacle and a tightened locking ring. This plug is suitable for Type P marine cable. Integral circuit protection: This unit contains a circuit breaker to allow safe, 20 Amp at 460V AC max operation. The circuit breaker also gives protection against short circuits and provides added thermal time delay overload protection. The plug and receptacle contacts cannot be made or broken under load. When the plug is inserted, the plug and receptacle contacts engage before the switch closes. When the plug is withdrawn, the switch opens before the plug and receptacle contacts disengage. This provides the maximum safety of a dead front receptacle. Arcing is isolated in a flame and dust-tight chamber. No special interlock device or manual switch, operators simply pull the plug straight out. Interchangeability: The receptacle and plug are fully interchangeable with configured and certified to UL1686 devices, such as Crouse-Hinds® Arktite® or Appleton® Powertite®. Standard location receptacle bolt hole patterns match competitive back boxes so users can perform upgrades without changing back boxes in instances where changing the conduit system is difficult. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Lighting, Wet areas or Locations Where Combustible Dust is Present. |
