Explosion Proof Rotary Switch - Class I, II, III - Key Selector - Off/On - Maintained
Explosion Proof Rotary Switch - Class I, II, III - Key Selector - Off/On - Maintained
| EPS-20A-KS-LCK-2W Explosion Proof 2-position Switch | Ratings/Approvals |
| Listing: NRTL Listed for United States and Canada | Class I, Division 1 & 2 Groups C,DÂ |
| Unit Type: Explosion Proof Key Selector Switch w/ Cover | Class I, Zones 1 & 2 Groups IIA |
| Dimensions: 7.563" x 5.75" x 2.75" | Class II, Division 1&2, Groups E,F,G |
| Weight: 1.6 lbs | Class III |
| Voltage: 600V AC Rated | NEMA 7 (C, D) 9 (E, F, G) |
| Frequency Rating: 50/60 Hz | Â |
| Contact Rating: 60A Inrush @ 120V AC; 30A Inrush @ 240V AC; 15A Inrush @ 480 VAC; 12A Inrush @ 600V AC; 6A Breaking @ 120V AC; 3A Breaking @ 240V AC; 1.5A Breaking @ 480V AC; 1.2A Breaking @ 600V AC; 10A Carrying @ 120V AC; 10A Carrying @ 240V AC; 10A Carrying @ 480V AC | Â |
| Switch Type: 2-position, Maintained | Â |
| Selector Type: Rotary, Key Operated | |
| Nameplate Marking: Off/On | |
| Materials: Copper-free Aluminum, Stainless Steel | |
| Mount: Surface | |
| Termination Options: Dead End or Feed Thru | |
| Hub Options: 1/2" or 3/4" NPT |

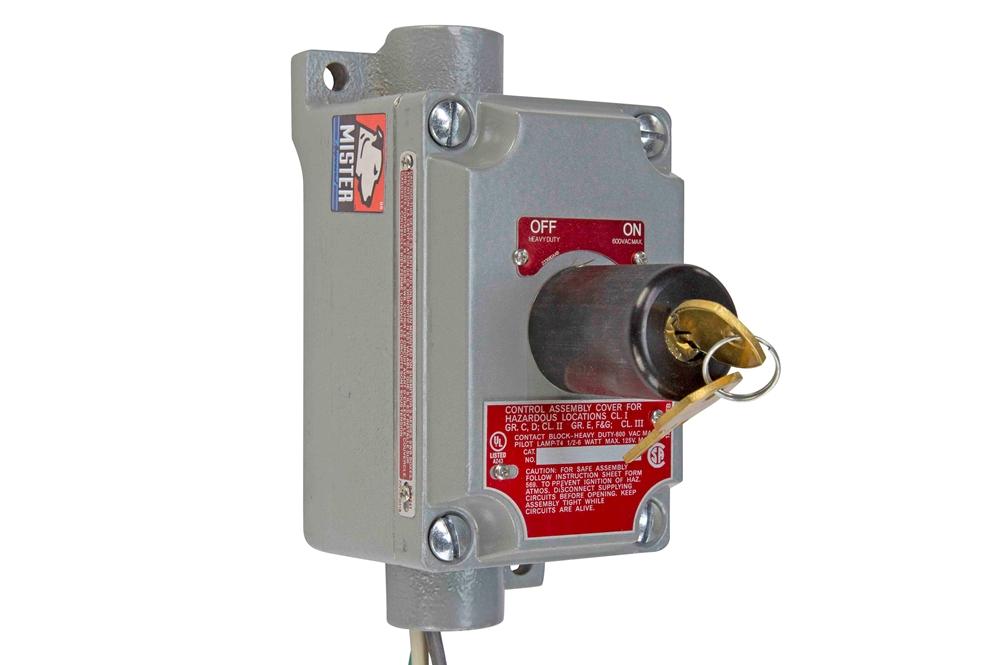

| The Larson Electronics EPS-20A-KS-LCK-2W Explosion Proof Switch is suitable for use in flammable work sites. The 600V rated device features a key-operated rotary switch with two positions. This NEMA-rated unit is constructed of non-sparking aluminum and contains a nameplate (Off/On). The EPS-20A-KS-LCK-2W designed for use in Class I, Divisions 1 & 2; Class II, Divisions 1 & 2; and Class III, Divisions 1 & 2 facilities. This explosion proof unit is rated at 600V, 50/60Hz. Equipped with two positions, the rotary switch features secure, key operated control. This maintained unit has a visible nameplate, which reads: Off/On. The EPS-20A-KS-LCK-2W is constructed of non-sparking aluminum and contains an aluminum cover. The operating shaft is stainless steel. The non-factory sealed unit is completely corrosion resistant and NEMA rated. Wiring: Operators can complete wiring via a 1/2" or 3/4" NPT hub. Termination options include dead end or feed thru. Wiring/Mounting: The EPS-20A-KS-LCK-2W is compatible with surface mounting configurations. Two openings at the back of the unit is accessible during installation. Suggested Applications: Hazardous locations, oil and gas sites, agricultural operations, grain storage, woodshops, motor control and more. |
| Â |
