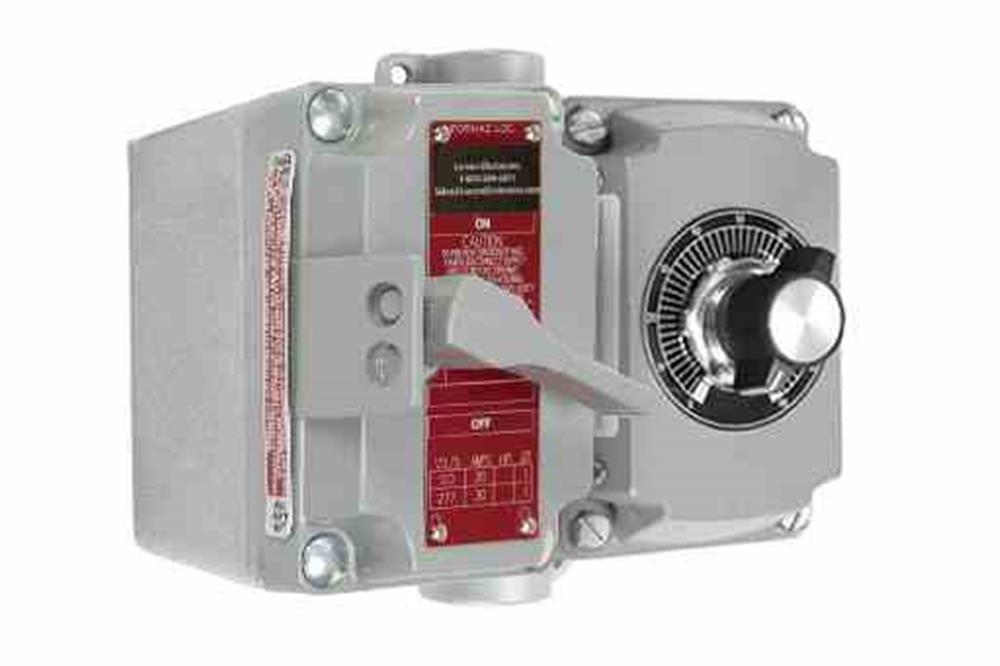

Explosion Proof Switch w/ Potentiometer - C1D1, C2D1 - 2K Ohms - Rotary Dial - Double Gang Box

LARSON ELECTRONICSSKU: PL3-EPS-20A-PTM.2K
filler

Precio:
Precio de venta$2,933.99

Descripción

Specifications / Additional Information
EPS-20A-PTM.2K Explosion Proof Switch w/ Pontentiometer Ratings/Approvals
Unit Type: Explosion Proof Switch w/ Potentiometer Class I, Division 1&2, Groups C,D
Dimensions: - Class II, Division 1&2, Groups E,F,G
Weight: - Class III, Division 1&2
Switch Style: 2-pole NEMA 7 (Groups C & D)
Voltage: 120-277V AC NEMA 9 (Groups E, F, G)
Horsepower: 1HP @ 120VAC / 2HP @ 250VAC Certified to USA/Canadian Standards
Amp Rating: 20A
Pontentiometer Resistance: 2K Ohms
Pontentiometer Dial Type: Rotary
Materials: Non-sparking Aluminum
Termination Options: Dead End or Feed Thru
Hub Options: 1/2" or 3/4" NPT
' Product Overview '
The Larson Electronics EPS-20A-PTM.2K Explosion Proof Switch with Potentiometer is suitable for motor and electrical control in flammable work sites. The 20-amp device features a robust potentiometer with 2k Ohms resistance, which can be set using a rotary dial. This NEMA-rated unit is constructed of non-sparking aluminum and takes on a double-gang box configuration. The EPS-20A-PTM.2K designed for use in Class I, Divisions 1 & 2; Class II, Divisions 1 & 2; and Class III, Divisions 1 & 2 facilities. Rated at 20 amps, this explosion proof unit accepts currents ranging between 120-277V AC. The device features a pontentiometer with 2k Ohms resistance. Operators can make adjustments to the instrument using a rotary dial. The unit has a rocker switch which allows locking of the ON/OFF position. The EPS-20A-PTM.2K is constructed of non-sparking aluminum and is triple coated. The lever is connected to a threaded stainless steel shaft that passes through the faceplate. The entire unit is completely corrosion resistant and is NEMA rated. Wiring/Mounting: Operators can completing wiring and mounting via a 1/2" or 3/4" NPT hub. Termination options include dead end or feed thru. Suggested Applications: Hazardous locations, oil and gas sites, agricultural operations, grain storage, woodshops, motor control and more.
