Descripción

Specifications / Additional Information
EPS-3P-30A-SPST Explosion Proof Three Phase Starter Switch Certifications - Compliance
Switch Voltage Rating: 250-600V AC Class I, Divisions 1 & 2, Groups C, D
Switch Current Rating: 30 Amps @ 250V AC and 20 Amps @ 600V AC Class I, Zones 1 & 2, Groups IIA
Grounding: Single Internal Housing Ground Screw Class II, Divisions 1 & 2, Groups E, F, G
Configuration: Front Switch Class III
Hub: 1/2" or 3/4" NPT NEMA 7(C,D) 9(E,F,G)
Unit Materials: Box/Receptacle - Cast Copper-free Aluminum
Insulation: Integral Bushings in Conductor Openings
Mounting: External Mounting Lugs on Body
Switch Type: Three Pole SPST Toll Free:1-800-369-6671
' Product Overview '

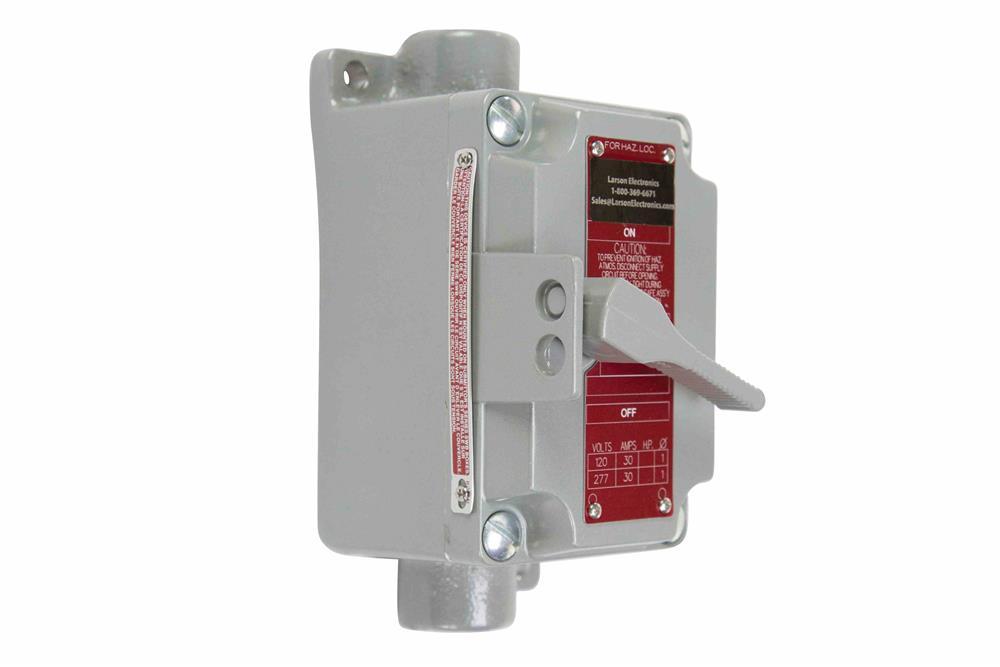

The Larson Electronics EPS-3P-30A-SPST Explosion Proof Three Pole Starter Switch is listed Class I Division 1 & 2 and Class II Division 1 & 2 and provides a safe and secure method for operators to use with contactors and magnetic starters to provide circuit selection and control for motors and equipment in hazardous locations. This 3-phase maintained starter switch is rated for a maximum of 30 amps at 250V and 20 amps at 600V and is constructed of cast copper-free aluminum. This explosion proof starter switch is ideal for operators seeking a high quality explosion proof starter switch rated for use in hazardous areas designated Class I Division 1 and Class II Division 1. This explosion proof switch is rated at 30 amps at 250V and 20 amps at 600V. The entire unit is constructed of aluminum. This unit is easily wall mounted via integral mounting tabs at two corners of the housing and provides a 1/2" or 3/4" hub openings located on the sides of the housing for running electrical conductors in a feed through configuration. A bushing seal at each conductor opening prevents damage to wiring insulation. This unit is rated to handle electrical loads of 250-600V AC up to 30 amps and is suitable for use in environments where flammable gases and vapors or combustible dusts and particulates may be present. The EPS-3P-30A-SPST is non-factory sealed. The EPS-3P-30A-SPST explosion proof starter switch cover and housing box is constructed of cast copper-free aluminum with all arcing devices contained within an explosion proof labyrinth switch for the highest protection possible. This design does not require external sealing fittings. Two external mounting lugs provide simple and secure mounting of the unit to walls and flat surfaces. The unit box, switch, and face plate are all included with the product. A 1/2" or 3/4" NPT tapped conduit opening is provided on the top of the unit, providing easy and secure connection to main power line supplies. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Lighting, Wet areas or Locations Where Combustible Dust is Present.
