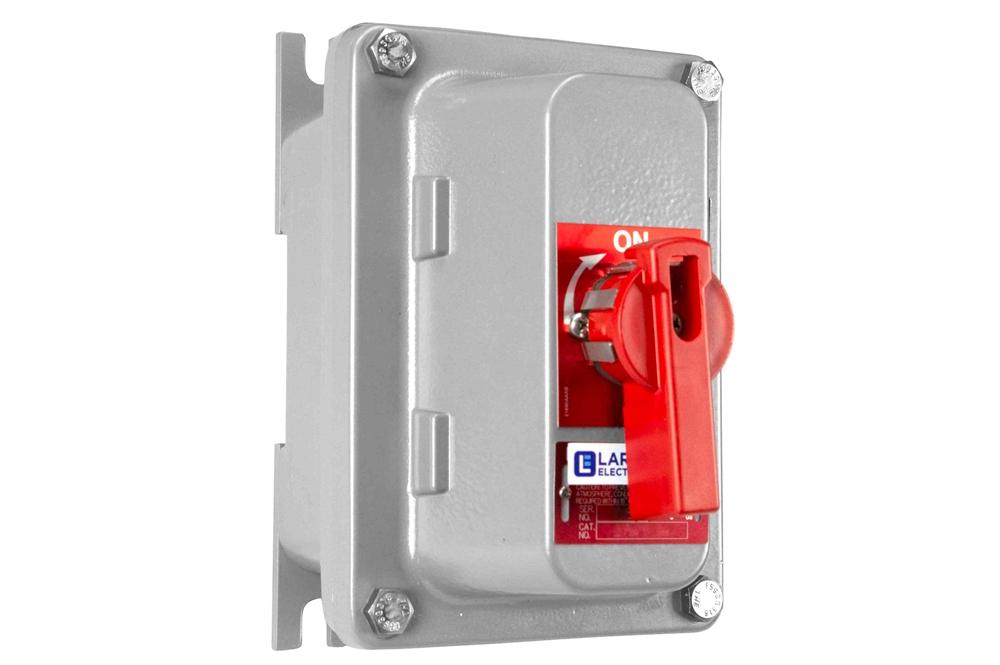

15A Explosion Proof Disconnect Switch - Class I, II, III - 600V Rated, 3-pole - Handle Switch

LARSON ELECTRONICSSKU: PL3-EPS-DCSW-15A-600V
filler

Precio:
Precio de venta$2,242.00

Descripción

Specifications / Additional Information
EPS-DCSW-15A-600V Explosion Proof Disconnect Switch Features/Ratings
Listing: United States & Canada Class I, Divisions 1&2 Groups B,C,D
Unit Type: Non-fused Disconnect Switch Class l, Zones 1&2, Groups llB+ H2,llA
External Dimensions: 5.75" x 8.06" x 6.3125" Class II, Divisions 1&2 Groups E,F,G
Internal Dimensions: 3.625" x 5.8125" x 5.0625" Class III
Weight: 11 lbs NEMA 3, 4, 4X, 7 (B, C, D) 9 (E, F, G)
Voltage Rating: 600V AC, 60 Hz Group B - Hydrogen
HP: 30 @ 600V 3PH, 20 @ 480V 3PH, 10 @ 240V/208V 3PH, 5 @ 230V 1PH, 2 @ 120V 1PH
Amps: 15A
Poles: 3
Switch Type: Handle
Materials: Copper-free Aluminum (Enclosure), 316 SS (Cover Bolts), Silicone (O-ring Gasket)
Finish: Grey Powder Polyester Painted Exterior, Electrostatically Applied
Mount: Wall or Surface
Terminal Lug Size: #14 - 4 AWG
Total Hub Quantity:2
North Side Hubs: (1) 1" NPT
South Side Hubs: (1) 1" NPT
East Side Hubs:0
West Side Hubs:0
Bottom (Back/Base) Hubs:0
Conduit:Operator Provided
' Product Overview '
The Larson Electronics EPS-DCSW-15A-600V Non-fused Explosion Proof Disconnect Switch is suitable for electrical safety and motor disconnects in combustible environments. Rated at 600V AC, this 3-pole unit features a lockable operating handle and a compact design. Constructed of copper-free aluminum, operators can mount the 15-amp explosion proof disconnect switch on walls and surfaces using fixed lugs at the back of the enclosure. The EPS-DCSW-15A-600V is a non-fused disconnect switch for flammable work sites. This 3-pole unit is rated at 600V AC and features a handle for quick disconnection that is lockable to prevent tampering. A compact design ensures the 30-amp disconnect switch provides space-saving benefits. The explosion proof disconnect switch is constructed of copper-free aluminum, with 316 stainless steel cover bolts and a silicone O-ring gasket. With conduit entrances located at the top and bottom of the NEMA-rated enclosure, the unit is compatible with #14 - 2 AWG terminal lug sizes. This explosion proof disconnect is designed for Class I, Divisions 1 & 2; Class I, Zones 1 & 2; Class II, Divisions 1 & 2; and Class III combustible sites. The EPS-DCSW-15A-600V can be securely mounted on walls or surfaces. Fixed lugs at the back of the explosion proof unit are available for mounting during installation. Applications: Industrial motors, motor disconnects, panelboards, switchboards, electrical management, equipment protection and more.
