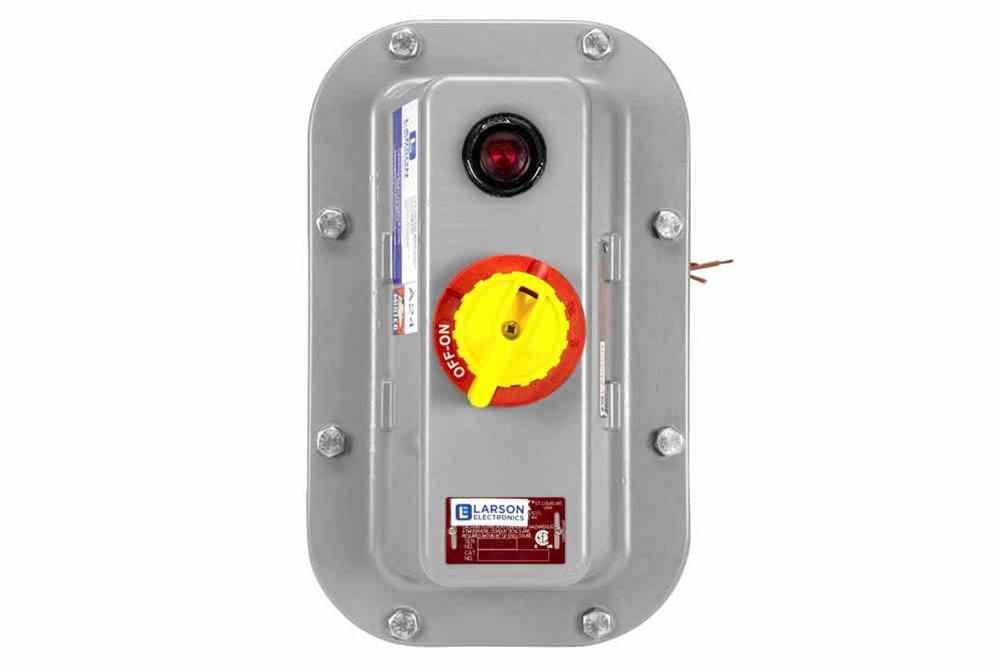

50A Explosion Proof Disconnect Switch - Class I, II, III - 24V DC - Handle Switch, PL

LARSON ELECTRONICSSKU: PL3-EPS-DCSW-50A-24VDC-PL.R
filler

Precio:
Precio de venta$4,942.00

Descripción

Specifications / Additional Information
EPS-DCSW-50A-24VDC-PL.R Explosion Proof Disconnect Switch Features/Ratings
Listing: NRTL Listed for United States & Canada Class I, Divisions 1&2 Groups B,C,D
Unit Type: Non-fused Disconnect Switch Class l, Zones 1&2, Groups llB+ H2,llA
External Dimensions: 8.125" x 13.0625" x 7.8125" Class II, Divisions 1&2 Groups E,F,G
Internal Dimensions: 4.25" x 9.1875" x 6.3125" Class III
Weight: 23.2 lbs NEMA 3, 4, 4X, 7 (B, C, D) 9 (E, F, G)
Voltage Rating: 24V DC Group B - Hydrogen
HP: -
Amps: 50A
LED Pilot Light Color: Red
Switch Type: Handle
Materials: Copper-free Aluminum (Enclosure), 316 SS (Cover Bolts), Silicone (O-ring Gasket)
Finish: Grey Powder Polyester Painted Exterior, Electrostatically Applied
Mount: Wall or Surface
Terminal Lug Size: #14 - 4 AWG
Total Hub Quantity: 2
North Side Hubs: (1) 1-1/2" NPT
South Side Hubs: (1) 1-1/2" NPT
East Side Hubs: 0
West Side Hubs: 0
Bottom (Back/Base) Hubs: 0
Conduit: Operator Provided
' Product Overview '
The EPS-DCSW-50A-24VDC-PL.R from Larson Electronics is a Non-fused Explosion Proof Disconnect Switch that is suitable for electrical safety and motor disconnects in combustible environments. Rated at 24V DC, this unit features a lockable operating handle, red LED pilot light and a compact design. Operators can mount the 50-amp explosion proof disconnect switch on walls and surfaces using fixed lugs at the back of the enclosure. The EPS-DCSW-50A-24VDC-PL.R is a non-fused disconnect switch for flammable work sites. This unit is rated at 24V DC and features a handle for quick disconnection that is lockable to prevent tampering. Operators may access a red 24V LED pilot light, which activates when the breaker is tripped. A compact design ensures the 50-amp disconnect switch provides space-saving benefits. The explosion proof disconnect switch is constructed of copper-free aluminum, with 316 stainless steel cover bolts and a silicone O-ring gasket. With conduit entrances located at the top and bottom of the NEMA-rated enclosure, the unit is compatible with #14 - 2 AWG terminal lug sizes. This explosion proof disconnect is designed for Class I, Divisions 1 & 2; Class I, Zones 1 & 2; Class II, Divisions 1 & 2; and Class III combustible sites. The EPS-DCSW-50A-24VDC-PL.R can be securely mounted on walls or surfaces. Fixed lugs at the back of the explosion proof unit are available for mounting during installation. Applications: Industrial motors, motor disconnects, panelboards, switchboards, electrical management, equipment protection and more.
