Explosion Proof 2-Selector Switch - Maintained - 480V AC 3PH, 20A Rated - 3 NO/3 NC - Feed Thru
Explosion Proof 2-Selector Switch - Maintained - 480V AC 3PH, 20A Rated - 3 NO/3 NC - Feed Thru
Sold by: LARSON ELECTRONICS
| EPS-OFSW-3PH-480V Two Selector Switch - Maintained | Features/Ratings |
| Unit Type: Explosion Proof Maintained Switch | Class I, Div. 1 & 2, Groups C,D |
| Dimensions: - | Class 1, Zones 1 & 2, Groups llA |
| Weight: - | Class II, Div. 1 & 2, Groups E,F,G |
| Voltage: 480V AC 3PH | Class III |
| Amps: 20A Rated | NEMA 7(C,D) 9(E,F,G) |
| Contacts: 3 NO/ 3 NC |  |
| Configuration: Single Gang | |
| Switch: (2) Positions - On/Off Maintained Action | |
| Materials: Copper-free Aluminum | |
| Mounting: Surface - (2) Bolt Holes | |
| Hub Style/Size: Feed Thru - (2) 3/4" Hubs |

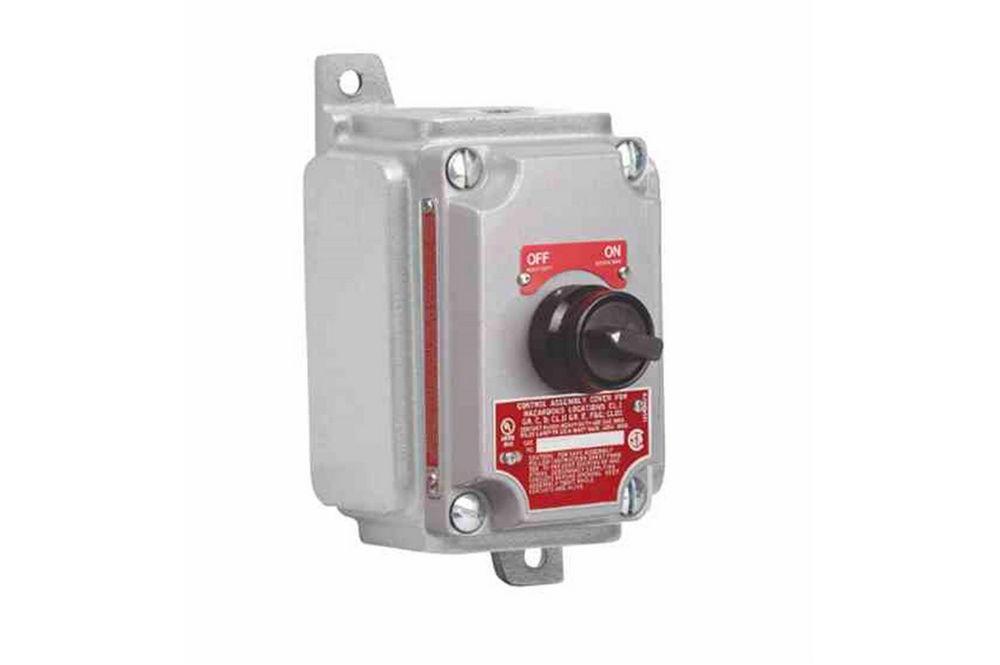

| Made in the USA The Larson Electronics EPS-OFSW-3PH-480V Explosion Proof 2-Selector Switch allows operators to manually control machines in combustible facilities. This 20-amp rated explosion proof accessory is compatible with 480V AC three phase. Constructed of copper-free aluminum, the two-selector maintained switch comes in a feed thru configuration with two, 3/4" hubs. The EPS-OFSW-3PH-480V offers manual operation of machines in hazardous locations and flammable work sites. The single-gang unit is compatible with 480V AC three phase (20-amp rating). This explosion proof maintained switch features two positions with On and Off nameplate markings. Contact configuration includes 3 NO and 3 NC. For durability in combustible facilities, the accessory is constructed of copper-free aluminum. The EPS-OFSW-3PH-480V comes in a feed-thru hub configuration, with two available 3/4" hubs for completing electrical connections. Operators can mount the explosion proof motor switch on flat surfaces via two bolt openings at each end of the unit. Applications: Manual machine operation, hazardous locations, industrial sites, chemical processing, manufacturing plants, agricultural sites and more. |
|  |
