2A Explosion Proof Push Button Switch - Class I, II, III - 12V Rated, Momentary - NEMA

LARSON ELECTRONICSSKU: PL3-EPS-PB10-MS-12VDC
filler

Precio:
Precio de venta$614.00
 Más opciones de pago

Descripción

Specifications / Additional Information
EPS-PB10-MS-12VDC Explosion Proof Push Button Ratings/Features
Listing: NRTL Listed for United States, Canada Class I, Divisions 1&2, Groups C,D
Dimensions: - Class I, Zones 1&2, Groups IIB,IIA
Weight: - Class II, Divisions 1&2, Groups E,F,G
Voltage: 12V DC Rated Class III
Amps: 2A NEMA 7 (C,D), 9 (E,F,G)
Push Button Type: Momentary
Contacts: NO or NC
Button Color: Red, Green or Black
Nameplate Marking: -
Ambient Operating Temp Range: -
Materials: Aluminum
Mounting: Surface
Termination: Dead End or Feed Through
Hub Size: 1/2" NPT or 3/4" NPT
' Product Overview '

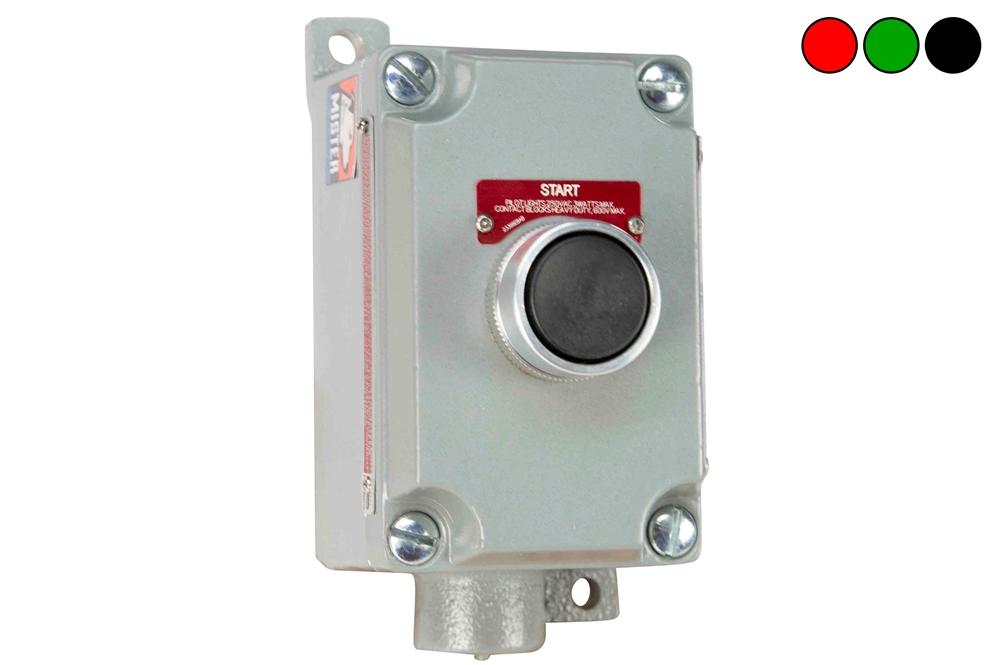

The Larson Electronics EPS-PB10-MS-12VDC Explosion Proof Momentary Push Button Switch is designed for Class I, II and III rated combustible environments. This 2-amp switch is rated at 12V DC. Manufactured using non-sparking materials, the explosion proof unit is suitable for surface mounting installations. The EPS-PB10-MS-12VDC is factory sealed, which eliminates the need for adding sealing fittings and compound at each conduit entrance. This unit is built to be heavy duty, and is rated for 2 amps at 12V DC. The momentary button is offered in red, green, and black. Contact options include: normally open or normally closed. The EPS-PB10-MS-12VDC housing is made out of malleable aluminum body with an aluminum cover, and is epoxy powder coated for a natural finish. This switch is enclosed in a separate sealing chamber, and the sealing chamber has smooth, double flanges that mate both to the cover and the mounting enclosure to provide flame tight joints. The screws consist of stainless steel captive screws and attach the sealing chamber to cover and mounting enclosure. Wiring: This explosion proof unit is offered in a dead end or feed through configuration. Hub size options include: 1/2" NPT or 3/4" NPT. Operators connect to the switch via an internal terminal strip.  Mount: The EPS-PB10-MS-12VDC is compatible with surface mounting applications. There are two openings at the back of the device for installation. Applications: Manufacturing, industrial, warehouse, lighting, motor-generator sets, compressors, wet areas or locations where combustible dusts, fibers or flying are present or where explosive gases or vapors may be present.
