Explosion Proof Switch w/ E-stop - C1D1/C2D1 - Tumbler Switch, (1) E-Stop PB - Double Gang Box
Explosion Proof Switch w/ E-stop - C1D1/C2D1 - Tumbler Switch, (1) E-Stop PB - Double Gang Box
| EPS-SW1-ESTP Explosion Proof Switch | Ratings/Approvals |
| Listing: United States and Canada | Class I, Divisions 1&2, Groups C,DÂ |
| Unit Type: Explosion Proof Tumbler Switch w/ E-stop | Class II, Divisions 1&2, Groups E,F,G |
| Dimensions: - | Class III, Divisions 1&2 |
| Voltage: 120-277V AC | NEMA 7 (C, D), 9 (E, F, G) |
| Horsepower: 1HP @ 120V AC / 2HP @ 250V AC | Â |
| Amp Rating: 20A | |
| Switch Style: On/off Tumbler Switch | |
| Emergency Stop: (1) Mushroom Push Button - Red | |
| Materials: Non-sparking Aluminum | |
| Termination Options: Dead End or Feed Thru | |
| Hub Options: 1/2" or 3/4" NPT |

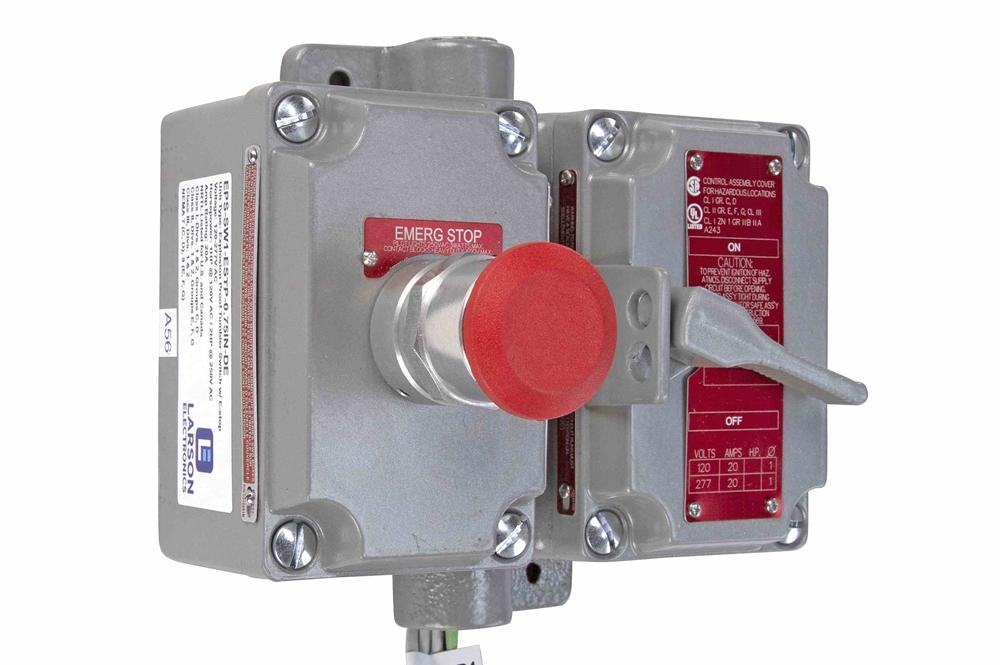

| The Larson Electronics EPS-SW1-ESTP Explosion Proof Switch is suitable for motor and electrical control in flammable work sites. The 20-amp device features an on/off tumbler switch and one, emergency-stop mushroom push button. This NEMA-rated unit is constructed of non-sparking aluminum and takes on a double-gang box configuration. The EPS-SW1-ESTP is designed for use in Class I, Divisions 1 & 2; Class II, Divisions 1 & 2; and Class III, Divisions 1 & 2 facilities. Rated at 20 amps, this explosion proof unit accepts currents ranging between 120-277V AC. The device features one, mushroom push button (red) which serves as an emergency stop. The unit also contains a tumbler switch, which provides on/off controls for connected devices. The EPS-SW1-ESTP is constructed of non-sparking aluminum and is triple coated. The entire unit is completely corrosion resistant and is NEMA rated. Wiring/Mounting: Operators can complete wiring and mounting via a 1/2" or 3/4" NPT hub. Termination options include dead end or feed thru. Suggested Applications: Hazardous locations, oil and gas sites, agricultural operations, grain storage, woodshops, motor control and more. |
| Â |
