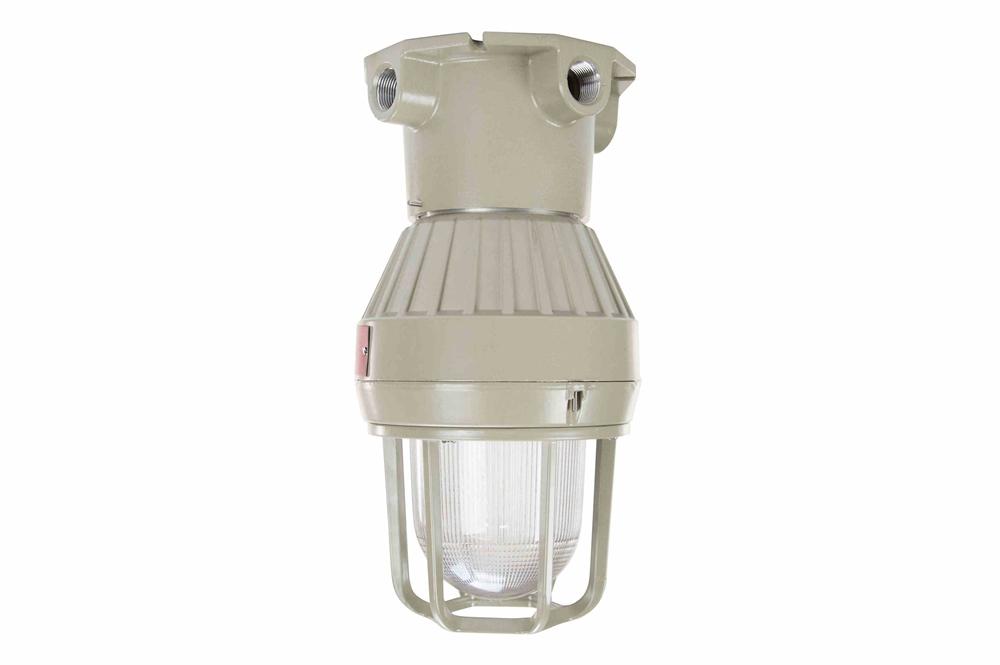

11W Explosion Proof Dual LED Strobe Light - 120V AC- Red/Green- Sync Capable

LARSON ELECTRONICSSKU: PL3-EPSLED-80-SVS-2C-AC-MOD1-120V
filler

Precio:
Precio de venta$3,270.00

Descripción

Specifications / Additional Information
EPSLED-80-SVS-2C-AC-MOD1-120V Explosion Proof LED Strobe Light Ratings/Features
Listing: NRTL Listed for United States and Canada Class I, Divisions 1 & 2 Groups C,D
Lamp Technology: LED Class II, Divisions 1 & 2 Groups E,F,G
Dimensions: 7.25" x 15" Class III
Weight: 7 lbs NEMA 3, 4, 4X
Voltage: 120V AC 50/60 Hz Power, 24V DC Sync (Supplied by Lamp) Sync w/ Alarm Systems
Watts: 11W Factory Sealed
Lumens: - Compatible w/ Edwards Signals EG1M
Luminous Efficacy: -
Expected Lifespan: 50,000+ Hours
Light Color: Red and Green
CRI: -
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle: 360º
Light Configuration: Alternating Strobe
Power Efficiency: -
Power Factor: -
Strobing Frequency: 1Hz
Operating Modes: Synchronous and Non-Synchronous
Amps: 0.09A @ 120V
Operating Temp: -30°F to 150°F
Housing Material: Copper-Free Aluminum
Housing Finish: Baked Powder Epoxy Finish, Electrostatically Applied
Mounting: Ceiling, Wall, Pendant or Stanchion
Wiring Hub: 3/4" NPT
' Product Overview '
The Larson Electronics EPSLED-80-SVS-2C-AC-MOD1-120V is a powerful Explosion Proof Dual LED Strobe Light that is suitable for installation in hazardous locations. This 11-watt unit operates on 120V AC line power and features red/green high-intensity LEDs in an alternating strobe configuration. The LED beacon can be synchronized with other strobe lights on fire alarms and compatible warning systems for simultaneous operation. The EPSLED-80-SVS-2C-AC-MOD1-120V is a compact, versatile lighting solution for warning and advanced notification systems, such as fire alarms. This explosion proof unit runs on 120V AC supply voltage and 24V DC control circuit for synchronizing between lamps. This unit draws 11 watts and has dual red/green colors. During use, the LED light emits an alternating strobe configuration at a rate of 1Hz. Features for syncing with compatible alarm systems and other strobe lights are available. High-intensity LEDs produces superior illumination in the hazardous location.
Two Units Synced Together
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Durability: The factory sealed explosion proof lamp housing is waterproof and constructed of copper-free aluminum with a baked epoxy powder finish. Unlike typical beacons, this unit produces colored illumination without colored lenses or optics that can fade or discolor over time. The LED is solid state and uses no filaments or glass in its construction, resulting in an extremely durable light that can withstand far more abuse than regular filament based beacons. Wiring: The EPSLED-80-SVS-2C-AC-MOD1-120V has a 3/4" NPT hub for wiring connections. Mount: This explosion proof dual LED strobe light is compatible with ceiling, wall, pendant or stanchion mount. Applications: Hazardous locations, industrial sites, oil and gas facilities, processing plants, warning systems, notification lighting, fire alarms, agricultural sites, warehouses and more.
