Class I, Div. I Explosion Proof Horn - Industrial Siren

LARSON ELECTRONICSSKU: PL3-EPSN-HRN-PA
filler

Precio:
Precio de venta$3,814.00

Descripción

Specifications / Additional Information
EPSN-HRN-PA Explosion Proof Industrial Horn/Siren Approvals
Dimensions: 14” W x 8” H x 18.5” L UL Listed
Weight: 19.5 lbs Class I, Division 1, Groups C & D
Materials: Cast Aluminum/Fiberglass Class I, Division 2, Groups A, B, C, & D
Voltage: 120-240VAC or 24VDC Class II, Division 2, Groups F & G
Amps: 0.8A 50/60 Hz @ 24VDC, 0.2A 50/60 Hz @ 120VAC, 0.1A 50/60 Hz @ 240VAC NEMA 4X
Volume: S7–110dbA @ 10 feet Marine Rated
Mounting: Omni directional mounting bracket, 1/2" conduit access
Operating Modes: 8 User Selectable Field Tones
Ambient Temperature Range: –55º C to +85º C - –67º F to +185º F

' Product Overview '

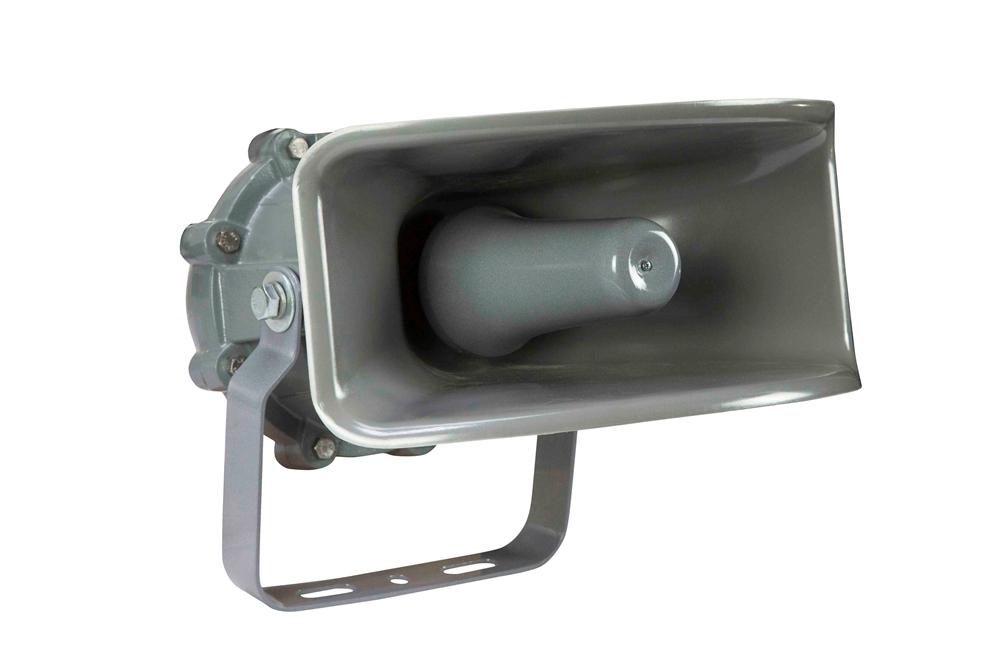

Made in the USA The Larson Electronics EPSN-HRN-PA explosion proof horn is constructed with an aluminum housing and fiberglass horn for durability and long life. This explosion proof horn/siren is weather and dust proof and Class 1 Division 1 groups C and D rated. This is a powerful alert and signal horn that offers multiple tones, remote operation capability, and multiple voltage options. The Larson Electronics EPSN-HRN-PA explosion proof horn provides operators in hazardous locations with an effective and powerful alert/signal system that can withstand demanding conditions and be heard over the operation of industrial machinery. This unit includes 8 different tones which can reach peak output of 110dBA and can be remotely operated for priority alerts. The housing on this horn is constructed of heavy duty aluminum and the horn is formed fiberglass. The entire unit is finished in durable grey powder coat for resistance to corrosion, is weatherproof/dustproof, and NEMA4x and marine rated for wet environments. Wiring is through a 1/2" conduit access hub, and the unit can be ordered in 120-240VAC configuration for use with standard voltages or 24 VDC for low voltage use. Mounting is via an omni directional bracket which allows mounting to flat surfaces and vertical adjustment of the horn for secure placement and optimum sound direction.
Click Photos to Enlarge
Tones:   Selectable by switch on sound module 1) Continuously running train of eight sounds in sequence 2) Wail - conventional siren 3) Yelp - rapid siren 4) Two- tone 5) Whoop - ascending low to high 6) Yeow - descending high to low 7) Horn - Steady 8) Beep - slow intermittent horn 9) Stutter - rapid intermittent horn 0) Remote-Enables remote selection of:                                                                                                             7 - Horn                    4 - Two tone - alternating                    3 - Yelp - rapid siren                    1 - Wail - manual siren
