Explosion Proof Horn - Class I, Div. I - Industrial Siren - Modbus TCP/IP Network Capable

LARSON ELECTRONICSSKU: PL3-EPSN-HRN-PA-ANC
filler

Precio:
Precio de venta$5,924.00

Descripción

Specifications / Additional Information
EPSN-HRN-PA-ANC Explosion Proof Industrial Horn/Siren Ratings
Unit Type: Explosion Proof Siren/Horn UL Listed
Dimensions: 18.50"-L x 14.00"-W x 8.00"-H Class I Division 1 Groups C & D
Weight: 19.5 lb Class I Division 2 Groups A, B, C, & D
Voltage: 120-240 V AC or 24 V DC Class II Division 2 Groups F & G
Amps: 0.8 A @ 24 V DC, 0.2 A @ 120 V AC, 0.1 A @ 240 V AC NEMA 4X
Volume: S7 – 110 dbA @ 10 Feet Marine Rated
Materials: Cast Aluminum / Fiberglass Password Protected Network Controls
Ambient Temperature Range: -55°C to +85°C (-67°F to +185°F) No Programming Required
Mounting: Omni-Directional Mounting Bracket, 1/2" Conduit Access Modbus TCP/IP Connectivity
Operating Modes: 8 User Selectable Field Tones

Network Controller Specs
Dimensions: 1.41" x 3.88" x 3.1"
Weight: 5 oz
Network Type: 10/100 Base-T Ethernet Port
Protocols: HTTP, XML, Modbus TCP/IP
Power Supply: 9-28V DC
Digital Input: (1) Optically Isolated 4-26V DC
Current: 950uA @ 4V, 8.5mA @ 26V
Relay Contacts: (1) SPDT - 240V AC/30V DC Max @ 12A
Relay Modes: On/Off or Pulsed
Pulse Timer Duration: 0.1 to 86,400 Seconds
Input Functions: Monitor, Local Relay Control, Remote Relay Control
LED Indicators: (4) Digital Input Voltage Applied, Relay Coil Energized, Network Linked, Network Activity
Operating Temperature: -40°C to 57°C
Housing Material: Lexan 940 Polycarbonate Plastic
Mount: Surface, Wall or DIN Rail
Password Protection: Yes @ Setup (Base 64 Encoding, 10 Characters)
Connectors: 3-position Removable (Relay- C, NO, NC), 5-position Removable (Power/Input), 8-pin RJ-45 (Network)
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }

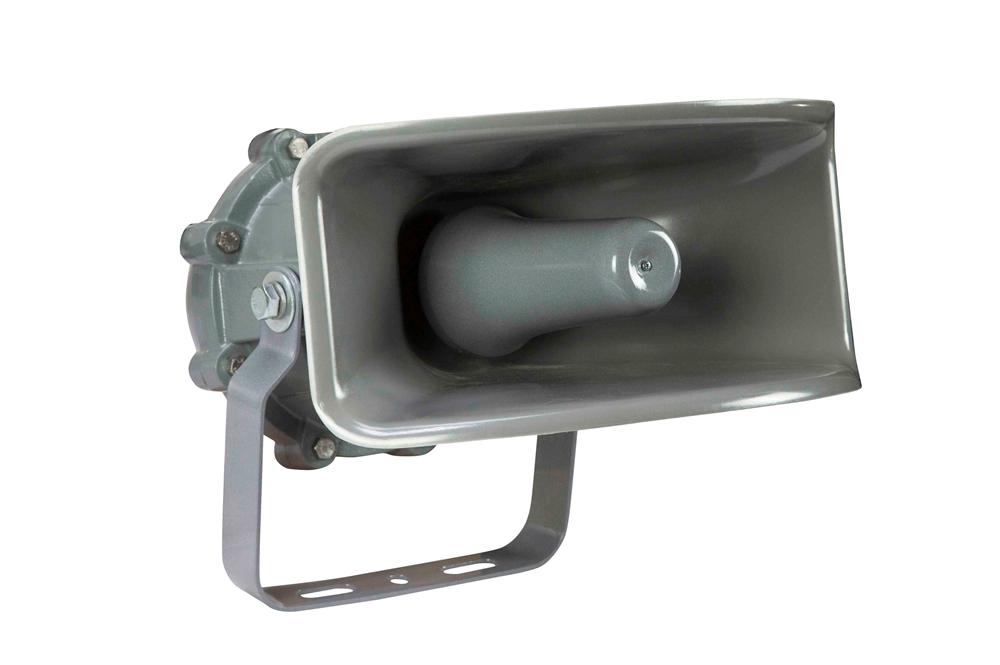

Made in the USA The EPSN-HRN-PA-ANC from Larson Electronics is a Modbus TCP/IP Capable Explosion Proof Horn that is constructed with an aluminum housing and fiberglass horn for durability and long life. This explosion proof horn/siren is weather and dust proof and rated for use in Class I Division 1 Groups C and D environments. This is a powerful alert and signal horn that offers multiple tones, remote operation capability, and multiple voltage options. The EPSN-HRN-PA-ANC explosion proof horn with Modbus TCP/IP capability provides operators in hazardous locations with an effective and powerful alert/signal system that can withstand demanding conditions and be heard over the operation of industrial machinery. Operators can setup remote access, controls, and configurations using the Modbus TCP/IP network controller (via a standard web browser). This unit includes 8 different tones which can reach peak output of 110dBA and can be remotely operated for priority alerts. The housing on this horn is constructed of heavy duty aluminum and the horn is formed fiberglass. The entire unit is finished in durable grey powder coat for resistance to corrosion, is weatherproof/dustproof, and NEMA4x and marine rated for wet environments. Wiring is through a 1/2" conduit access hub, and the unit can be ordered in 120-240VAC configuration for use with standard voltages or 24 VDC for low voltage use. Mounting is via an omni directional bracket which allows mounting to flat surfaces and vertical adjustment of the horn for secure placement and optimum sound direction.
Click Photos to Enlarge
Controls: Controls for the explosion proof horn is accessible using a web-based control panel. Compatible with HTTP, XML, or Modbus TCP/IP protocols, network configuration is accessible using web-based pages (no programming required). Operators can monitor or setup controls from a remote area using the internet or local IP network and any standard web browser. Functions and controls include: on/off, pulse and monitor. LED indicator lights on the device provide the real-time information about digital input voltage, relay coil, network status and network activity. Password protection for the setup page is available (10 characters maximum). Tones:   Selectable by switch on sound module 1) Continuously running train of eight sounds in sequence 2) Wail - conventional siren 3) Yelp - rapid siren 4) Two- tone 5) Whoop - ascending low to high 6) Yeow - descending high to low 7) Horn - Steady 8) Beep - slow intermittent horn 9) Stutter - rapid intermittent horn 10) Remote - Enables remote selection of:                    7 - Horn                    4 - Two tone - alternating                    3 - Yelp - rapid siren                    1 - Wail - manual siren Network: The network controller is equipped with one optically-isolated digital input and one SPDT relay contact. Compatible with 9-28 V DC, the unit features a 3-position removable relay (N, NO, NC), a 5-position removable power/inputs and an 8-pin RJ-45 port for network connections. Operators can mount the device on walls, surfaces or din rails for space-saving benefits.
