C1D1 Explosion Proof Horn - Industrial Siren - Programmable Timer - NEMA 4X - Weatherproof

LARSON ELECTRONICSSKU: PL3-EPSN-HRN-PA-AT-MOD1
filler

Precio:
Precio de venta$4,834.00

Descripción

Specifications / Additional Information
EPSN-HRN-PA-AT-MOD1 Explosion Proof Industrial Horn Features/Ratings
Unit Type: Explosion Proof Industrial Horn w/ Timer Class I, Div 1 Groups C.D
Dimensions: 14” W x 8” H x 18.5” L Class I, Div 2 Groups A,B,C,D
Weight: 19.5 lbs Class II, Div 2, Groups F,G
Voltage: 120-240V AC or 24V DC NEMA 4X
Amps: 0.8A 50/60 Hz @ 24V DC, 0.2A 50/60 Hz @ 120V AC, 0.1A 50/60 Hz @ 240V AC UL Listed
Volume: S7–110dbA @ 10` Marine Rated
Operating Modes: 8 User Selectable Field Tones
Ambient Temperature Range: –55º C to +85º C (–67º F to +185º F)
Materials: Cast Aluminum/Fiberglass
Mount: Omni-directional Mounting Bracket
Hub: 1/2" NPT
Timer Configuration: 1 Horn per Hour Between 6:30AM to 5:30PM
' Product Overview '

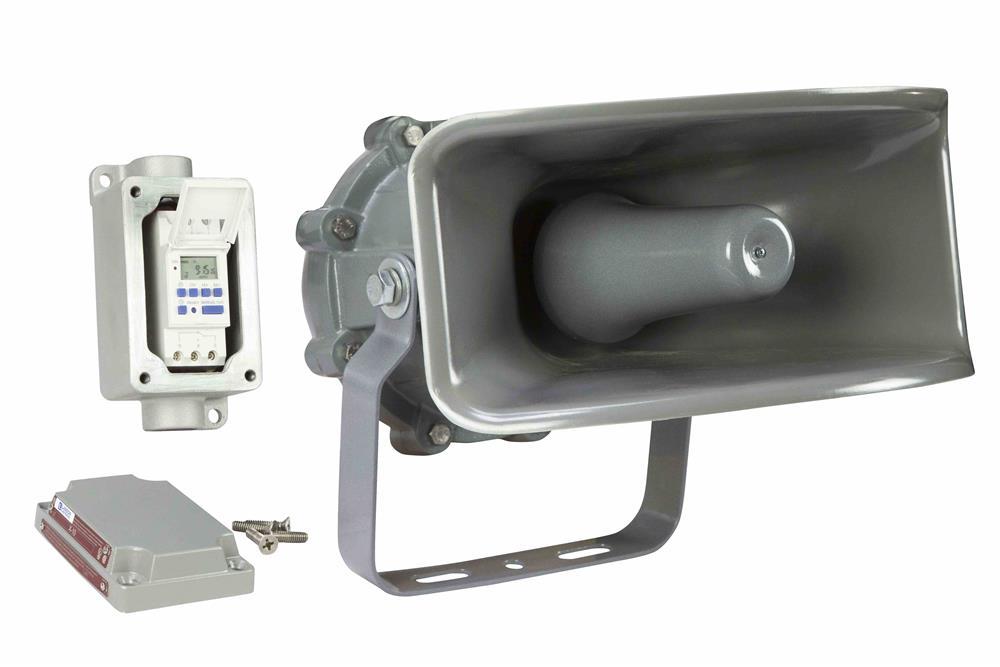

Made in the USA The Larson Electronics EPSN-HRN-PA-AT-MOD1 Explosion Proof Horn provides a powerful, audible alarm system for Class I, Division 1 & 2 and Class II, Division 2 facilities. The unit offers multiple tones, a programmable timer and multiple voltage options. This explosion proof device is constructed of aluminum and fiberglass for durability in rugged environments. The EPSN-HRN-PA-AT-MOD1 provides operators in hazardous locations with an effective and powerful alert/signal system that can withstand demanding conditions and be heard over the operation of industrial machinery. This unit includes 8 different tones which can reach a peak output of 110dBA and can be remotely operated for priority alerts. A programmable timer ensures accurate and automated operation of once per hour from 6:30AM to 5:30PM. Voltage options include 120-240V AC or 24V DC. The housing on this horn is constructed of heavy duty aluminum and the horn is formed from fiberglass. The entire unit is finished in a durable grey powder coat for resistance to corrosion. This weatherproof/dustproof system is NEMA 4X and marine rated for wet environments.
Click Photos to Enlarge
Tones:   Selectable by switch on sound module 1) Continuously running train of eight sounds in sequence 2) Wail - conventional siren 3) Yelp - rapid siren 4) Two- tone 5) Whoop - ascending low to high 6) Yeow - descending high to low 7) Horn - Steady 8) Beep - slow intermittent horn 9) Stutter - rapid intermittent horn 0) Remote-Enables remote selection of:                                                                                                             7 - Horn                    4 - Two tone - alternating                    3 - Yelp - rapid siren                    1 - Wail - manual siren Wiring/Mounting: Mounting for the industrial horn is facilitated by a sturdy omni-directional mounting bracket. The bracket ensures secure mounting on flat surfaces and allows vertical adjustment of the horn for secure placement and optimum sound direction. Operators are provided access to one, 1/2" NPT hub for completing wiring connections. Applications: Hazardous locations, alarm systems, automated alarms, paint spray booths, chemical processing, warehouses, packaging plants, petrol refineries and more.
