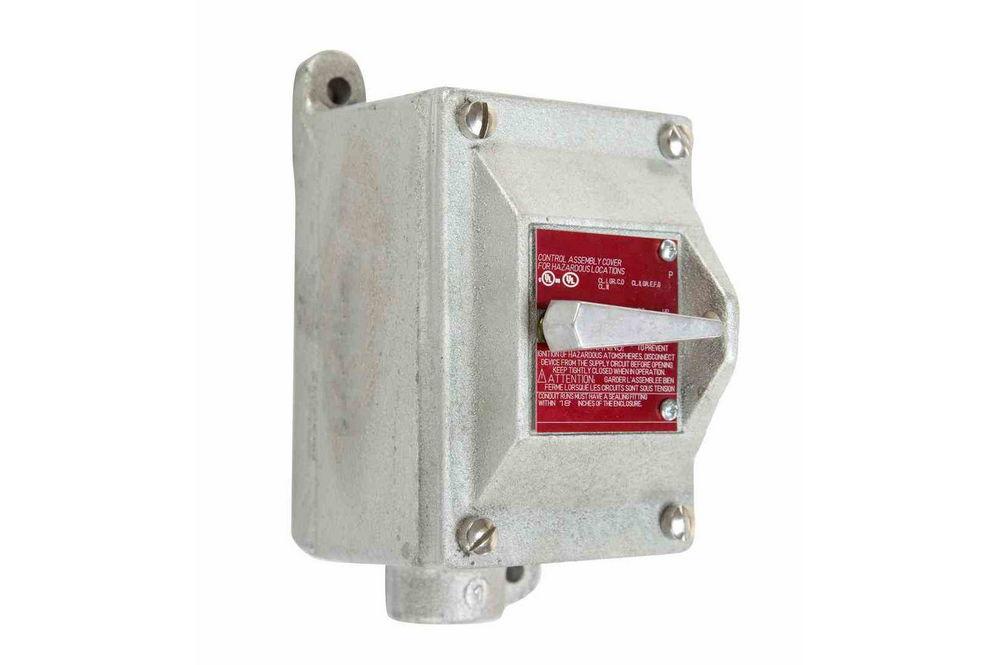

Explosion Proof Selector Switch - C1D1, C2D1 - 3 Positions, 2 Circuits - Copper-free Aluminum

LARSON ELECTRONICSSKU: PL3-EPSW-20A-OFO
filler

Precio:
Precio de venta$2,148.00

Descripción

Specifications / Additional Information
EPSW-20A-OFO Explosion Proof Switch Ratings/Approvals
Unit Type: Explosion Proof Selector Switch Class I, Divisions 1 & 2 Groups C, D
Dimensions: 5.875" x 3.5" x 3.0625" Class II, Division 1 Groups E, F, G
Weight: 3 lbs Class II, Division 2 Groups F, G
Rated Voltage: 600V AC (Maximum) Class III
Positions: (3) On/Off/On NEMA 7CD, 9EFG
Operation Type: Maintained Suitable for Wet Locations
Circuits: 2 Rain Tight
Contact Configuration: 4 Normally Open
Materials: Aluminum Alloy, Copper-free Aluminum, SS
Finish: Electrogalvanized and Aluminum Acrylic Paint
Mount: Surface, via (2) Screw Holes
Hubs: (1) 3/4" Hub, Dead End
' Product Overview '
The Larson Electronics EPSW-20A-OFO Explosion Proof Selector Switch is designed for manual motor starting of machines, small motors and equipment in hazardous locations. This 600V rated unit comes with three positions (On/Off/On), two circuits. Constructed of aluminum alloy, copper-free aluminum and stainless steel, operators can install this device in wet locations. The EPSW-20A-OFO is a durable explosion proof selector switch designed for small motors in hazardous locations. Featuring a maximum voltage rating of 600V AC, this unit supports the following three positions: On/Off/On.  The EPSW-20A-OFO is constructed of aluminum alloy and copper-free aluminum with stainless steel parts. The NEMA-rated switch features rain tight protection, making it ideal for wet locations. This explosion proof device is compatible with surface mount configurations. Operators can complete connections to the unit via a 3/4" hub located at the bottom of the switch.
Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage centers, small motors, manual control and more.
