Explosion Proof Combination Dimming/On/Off Switch - 0-10V Dimming - C1D1&2 - C2D1&2 - Class III
Explosion Proof Combination Dimming/On/Off Switch - 0-10V Dimming - C1D1&2 - C2D1&2 - Class III

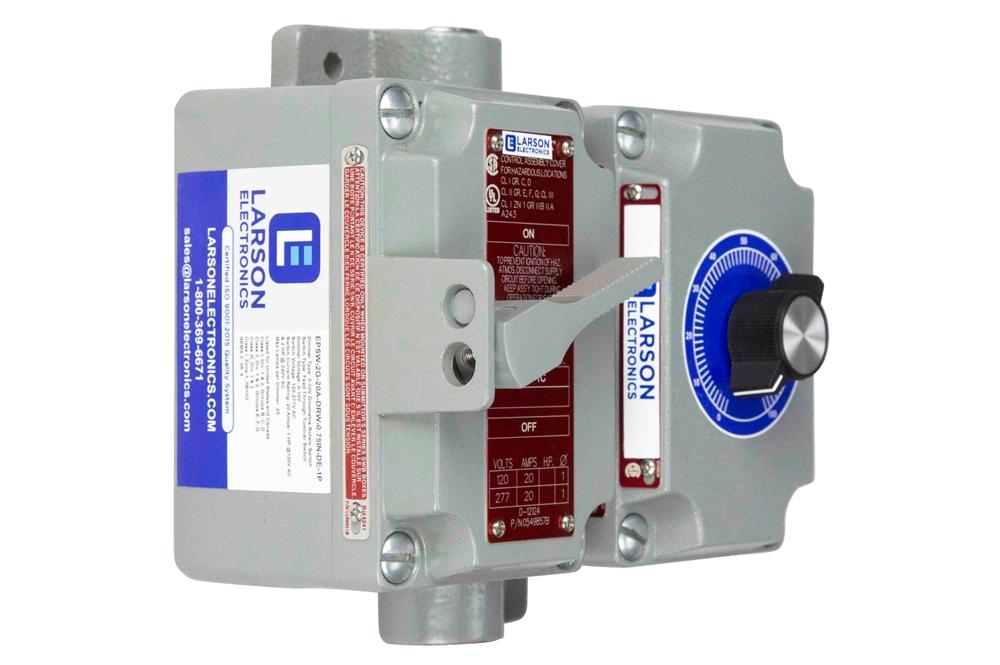

| EPSW-2G-20A-DRW Explosion Proof Dimmer/On/Off Switch | Ratings/Approvals |
| Dimmer Type: 0-10V Dimmable Rotary Switch | Class I Divisions 1 & 2 Groups C & D |
| Switch Type: Feed Through Tumbler Switch | Class I Divisions 1 & 2 Groups C & D |
| Dimmer Voltage: 0-10V | Class II Divisions 1 & 2 Groups E, F, G |
| Switch Voltage: 120-277 VAC | Class III, Divisions 1 & 2 |
| Switch Current Rating: 20 Amps- 1 HP @120 Vac & 2 HP @ 240 Vac | NEMA 7, Groups C & D |
| Max Lamps per Dimmer: 25 | NEMA 9, Groups E, F & G |
| Grounding: Single Internal Housing Ground Screw | |
| Dimensions: 5.88" L x 3" W x 2.25" D | |
| Configuration: Front Mounted Rotary Switch & Feed Through, Front Switch | |
| Hub Quantity: (2) Feed Through or (1) Dead End | |
| Hub Size: 1/2" 3/4" or 1" | |
| Unit Materials: Copper-free Cast Aluminum | |
| Mounting: External Mounting Lugs on Body | |
| Â | Â |
| Made in Texas The Larson Electronics EPSW-2G-20A-DRW Combination Explosion Proof Dimmer/On/Off Switch is Listed Class I Division 1 & 2 Groups C & D, Class II Division 1 & 2 Groups E, F and G and Class III. This explosion proof combination switch allows operators to turn fixtures on and off, and utilize 0-10V dimming when fixtures are on, and is a safe and secure method for operators to control fixtures and adjust the brightness of explosion proof lights to best accommodate the situation or workplace while maintaining safety within hazardous environments. This explosion proof combination dimmer/on/off switch is ideal for operators seeking a high quality explosion proof switch rated for use in hazardous areas designated Class I Division 1 & Class 2 Groups C & D, Class II Division 1 & 2 Groups E, F and G and Class III environments. The entire unit is constructed of copper free cast aluminum. This unit is easily wall mounted via integral mounting tabs at two corners of the housing. Operators can choose between two hub sizes of either 1/2" or 3/4" and either a feed through or dead end configuration. This unit is suitable for use in environments where combustible dusts and particulates may be present as well as any other hazardous locations. The EPSW-2G-20A-DRW explosion proof combination dimmer/on/off switch offers operators smooth, flicker-free dimming of lights for precise control of brightness level while maintaining the power delivered to the lamp via a 0-10V rotary switch. The rotary switch also features surge protection technology, advanced heat sinks to extend the service life of the switch and protection from possible interference from radios and other equipment. The dimmer switch is compatible with explosion proof dimmable light fixtures with V+ and V- dimming control wires. This dimmer is not compatible with voltage dimming, the driver/ballast must have 0-10V control wires for dimming to be compatible. The EPSW-2G-20A-DRW also includes an explosion proof feed through tumbler switch that provides a safe and secure method for operators to interrupt power before connecting and disconnecting portable or stationary electrical devices and equipment in hazardous locations. Once the tumbler switch is used to turn on the explosion proof fixture, the dimmer can be used to change the fixture`s brightness output. The EPSW-2G-20A-DRW explosion proof combination switch cover and housing box is constructed of copper free cast aluminum for superior performance and durability. The dimmer switch is not factory sealed and require external sealing fittings. Two external mounting lugs provide simple and secure mounting of the unit to walls and flat surafces. This explosion proof combination dimmer/on/off switch is available with either 1/2" or 3/4" or 1" NPT tapped hubs. The conduit openings are provided on the top and bottom of the unit in feed through versions while dead end versions have a single conduit hub, providing easy and secure connection to main power line supplies. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Lighting, Wet areas or Locations Where Combustible Dust is Present. |
