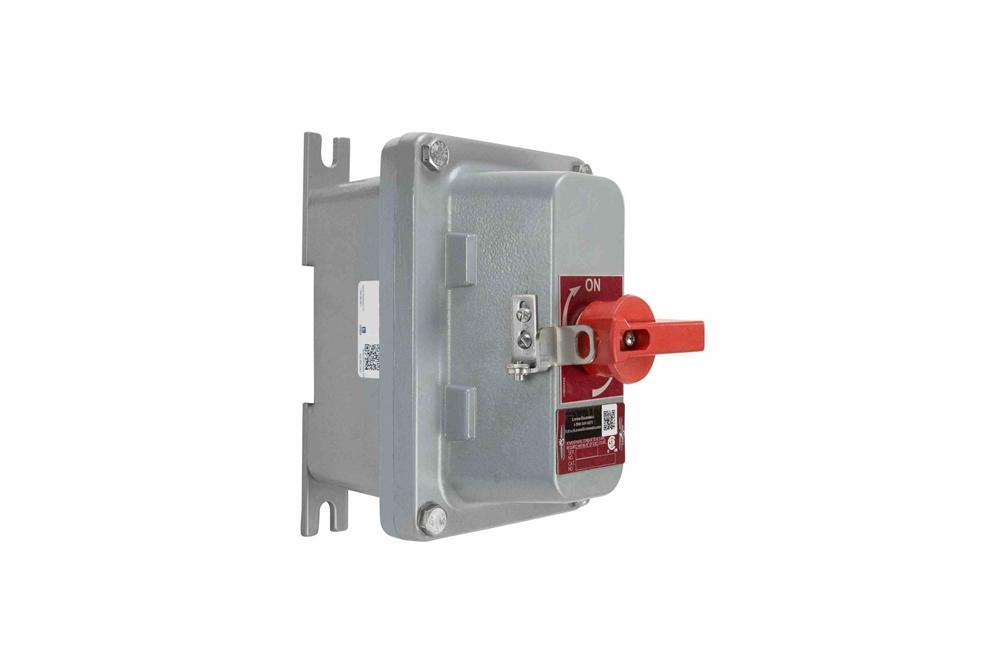

60A Explosion Proof Switch - Non Fused, Three Phase - (2) Aux Contacts

LARSON ELECTRONICSSKU: PL3-EPSW-3PH-60-AUX.2X-M1
filler

Precio:
Precio de venta$10,778.00

Descripción

Specifications / Additional Information
EPSW-3PH-60-AUX.2X-M1 Three Phase Explosion Proof Switch - 60 Amps Ratings/Approvals
Listing: NRTL Listed for United States and Canada Class I, Divisions 1 & 2, Groups B, C, D
Unit Type: Explosion Proof Non-fused Disconnect Switch Class l, Zones 1 & 2, Groups llB+ H2, llA
Dimensions: 5.75" x 8" x 6.3" Class II, Divisions 1 & 2, Groups E, F, G
Weight: - Class III
Max Voltage: 600V AC NEMA 3, 4, 4X, 7 (B, C, D) 9 (E, F, G)
Amps: 60A
Phase: Three Phase
Single Phase HP: 2 (120V AC), 5 (230V AC)
Three Phase HP: 15 (208V AC), 15 (230V AC), 30 (480V AC), 30 (600V AC)
Auxiliary Contacts: (1) NO, (1) NC
Ambient Operating Temp: -
Enclosure Material: Copper-free Aluminum Special Orders - Requirements
Cover Bolt Material: 316 Stainless Steel
O-ring Gasket Material: Silicone
Finish: Grey Powder Polyester, Electrostatically Applied
Terminal Lug Size: 0.06"-1.37"/#14-2 AWG
Drilled/Tapped Locations: Top and Bottom (Drilled), Conduit Entrances (Tapped)
' Product Overview '
The EPSW-3PH-60-AUX.2X-M1 Three Phase Explosion Proof Switch by Larson Electronics is a non-fused disconnect unit for motor circuits in hazardous locations. This device comes with the following explosion proof ratings: Class I, Divisions 1 & 2 (Groups B, C, D); Class l, Zones 1 & 2 (Groups llB+ H2, llA); Class II, Divisions 1 & 2 (Groups E, F, G); and Class III. The 60-amp rated switch is compatible with voltages up to 600V AC and features a copper-free aluminum enclosure, as well as two auxiliary contacts. The EPSW-3PH-60-AUX.2X-M1 non-fused disconnect switch offers robust control over motor circuits in hazardous locations. This unit supports fewer bolts for seamless installation and maintenance. A gasketed flange with a silicone O-ring is located inside the bolt circle to seal out moisture and debris. For power connections, the 60-amp rated device's top and bottom body are drilled and conduit entrances are tapped. The unit features the following single HP values: 2 (120V AC); 5 (230V AC). For three-phase HP: 15 (208V AC and 230V AC); 30 (480VAC and 600V AC). Operators may access two auxiliary contacts inside the device: (1) normally open and (1) normally closed. This explosion proof switch is equipped with a rotary handle style operating mechanism with lockout provision as standard. Removable ductile mounting lugs adjust to irregular mounting surfaces. The device is constructed of copper-free aluminum with a grey powder polyester painted finish, while the cover bolt is made out of 316 stainless steel. The EPSW-3PH-60-AUX.2X-M1 supports 0.06"-1.37"/#14-2 AWG terminal lug sizes and is suitable for indoor and outdoor hazardous locations.
Applications: Manufacturing facilities, food processing establishments, chemical plants, oil refineries and applicable hazardous locations compatible with the device.
