15A Explosion Proof Circuit Breaker Switch - Class I, II, III - 600V Rated, 3P - (4) Hubs
15A Explosion Proof Circuit Breaker Switch - Class I, II, III - 600V Rated, 3P - (4) Hubs
| EPSW-CB-3P-600V-15A Explosion Proof Circuit Breaker | Features/Ratings |
| Listing: NRTL Listed for United States &Â Canada | Class I Division 1 & 2 Groups B, C & D |
| Dimensions: 14.3125" x 12.3125" x 8.625" | Class I Zones 1 & 2 Groups llB+ H2 & llA |
| Weight: 48 lbs | Class II Division 1 & 2 Groups E, F & G |
| Configuration: 3-Pole, 4-wire | Class III, Divisions 1 & 2 |
| Voltage Rating: 600V AC, 60Hz | NEMA 3, 4, 4X, 7 (B, C, D), 9 (E, F, G) |
| Amps: 15A | Â |
| Protection: Circuit Breaker | Â |
| Materials: Copper-free Aluminum | |
| Hardware Materials: Stainless Steel (Hinges, Cover Bolts) | |
| Mounting: Surface Mount | |
| Hub Sizes: (2) 2" NPT [One North, One South Side], (2) 0.5" NPT [One North, One South Side] | |
| Hub Qty: 4 | |
| Hub Locations: North and South Sides | |
| Conduit: Operator Provided | |
| *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |

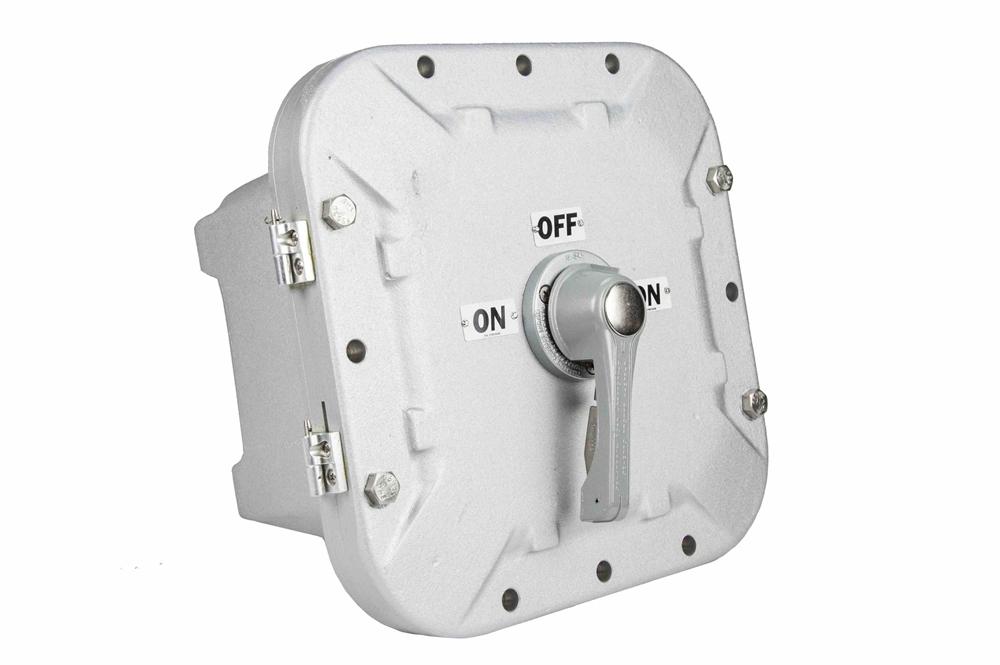

| Made in the USA The Larson Electronics EPSW-CB-3P-600V-15A explosion proof circuit breaker switch provides operators with a Class I and II, Divisions 1 and 2 copper-free aluminum enclosure for overcurrent and short circuit protection of service entrances, feeder or branch circuits, lighting, heating, appliances and motor circuits. This 600V rated device has a 3-pole configuration and features two cast 2" conduit hubs, one each on the north and south side, and two cast 0.5" conduit hubs, one each on the north and south side. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPSW-CB-3P-600V-15A is made of copper-free aluminum and features a rectangular bolted cover design for uniform and attractive installations. Equipped with a circuit breaker for protection, the external on/off lever can be locked into the "off" position with room for up to three padlocks for superior security. The circuit breaker is trip free of the external handle mechanism. This unit is rated at 600V AC and 15 amps. The 3-pole switch is rated for NEMA 4X environments, making it ideal for indoor and extreme outdoor applications. Hubs: There are four hubs on the explosion proof device: two, 2" NPT at the north and south side and two, 1/2" NPT at the north and south side. Applications: Petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored. |
| Â |
